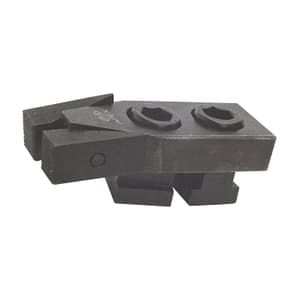

Apex 12 mm Lever Clamp, 903-12
Roll over image to zoom zoom_in
- Weight: 0.5 Kg
- Product Type: Flat Clamp
- T-Slot (mm): 12 mm
- Length (mm): 110 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1180 (Incl. of all taxes)
₹1000+ ₹180 GST (18%)
MRP ₹1539
SAVE 35%
5 Business Days
1 Pcs
730890
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Low height side clamps which leave the entire surface free for machining.
- Improved design of the clamping jaw applies wedge type action thereby exerting equal side & downward pressure with maximum clamping force. The compound movement of the two jaws creates the drawing action.
- This clamp is more useful than flat clamp Code 902 due to full serration of the jaws to clamp thin material.
- Effective & rigid clamping of flat job is done irrespective of the size of job.
Application:
- Used on milling, planing & where high clamping force is required.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| SKU | HA.VI.FL.00012 |
|---|---|
| Product Type | Flat Clamp |
| Model No | 903-12 |
| T-Slot (mm) | 12 mm |
| Length (mm) | 110 mm |
| B (mm) | 30 mm |
| Height (mm) | 15 mm |
| Allen Key (mm) | 8 mm |
| Approx. Pressure kN. | 15 - 7.50 kN |
| Finish | Black Oxidized |
| Material | Hardened Steel |
