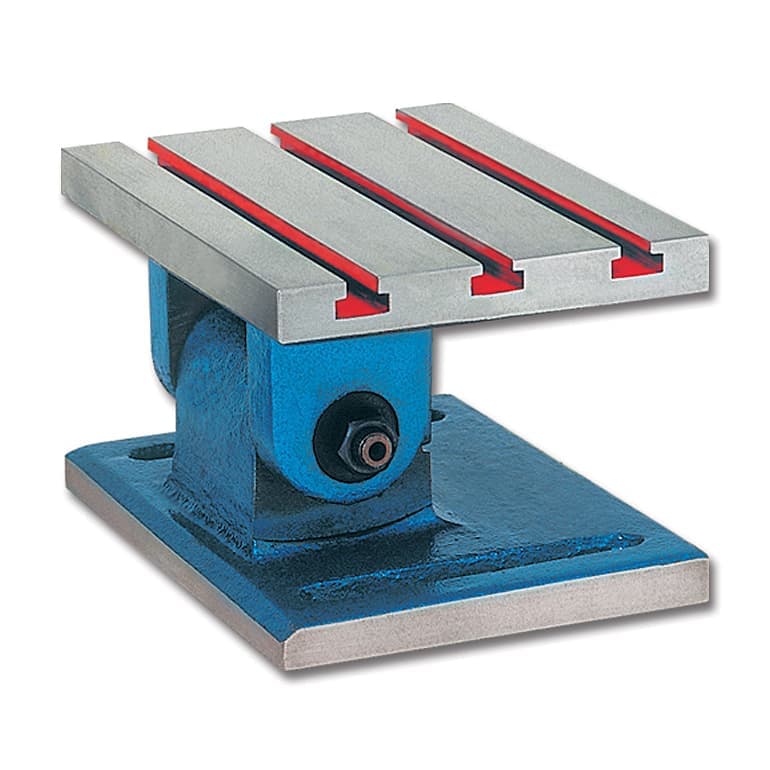

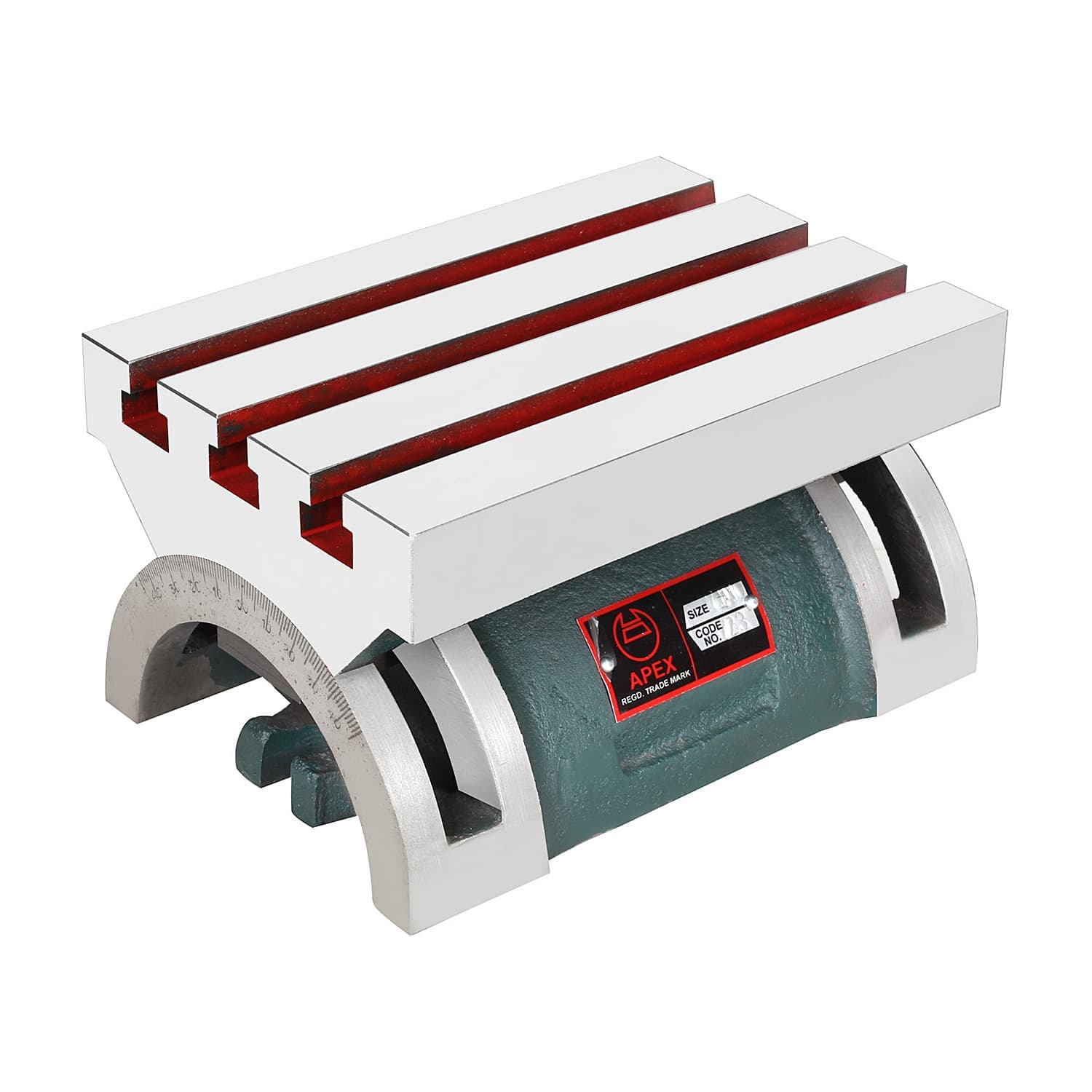

Apex 175 x 250 mm / 7 x 10 Inch Tilting Table Vice (Swivel Base), 723 S-175x250
Roll over image to zoom zoom_in
- Weight: 35 Kg
- Product Type: Tilting Table
- Sizes (mm): 175 x 250 mm
- Size (Inches): 7 x 10 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹25139.9 (Incl. of all taxes)
₹21305+ ₹3834.9 GST (18%)
MRP ₹32776.65
SAVE 35%
5 Business Days
1 Pcs
8466
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Special design for angle setting on various machine tools.
- Low profile for larger working space.
- The table is set manually to the required Tilt and is locked in the set position by means of two locking clamps held through bolts.
- Can be adjusted by 45° on both right-hand and left-hand side.
- The angle marking is accurate and easy to read.
Application:
- A useful accessory for setting work at an angle for milling or other operations.
Construction:
- Cast Iron Stress Relieved Tilting Table.

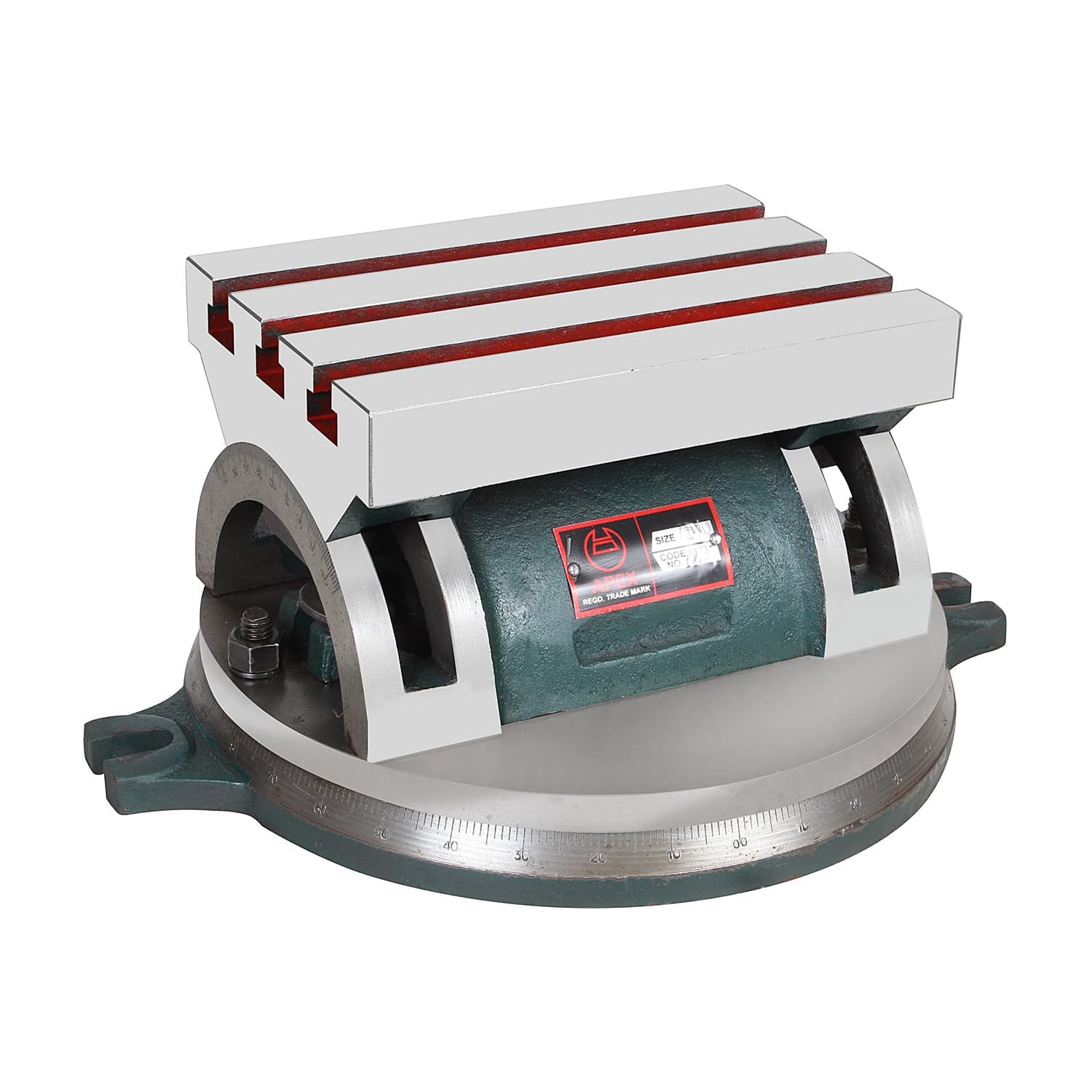

- The unique design on Connecting Plate and 360° Graduated Swivel Base, making it possible for the Angle Plate to do a rotation at any angles.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| SKU | HA.VI.TI.00005 |
|---|---|
| Product Type | Tilting Table |
| Model No | 723S-175x250 |
| Sizes (mm) | 175 x 250 mm |
| Size (Inches) | 7 x 10 inch |
| Height overall (mm) | 180 mm |
| Width overall (mm) | 320 mm |
| Length overall (mm) | 410 mm |
| Swivel Graduation | 360° |
| T-Slot Size (mm) | 16 mm |
| Finish | Hammer Tone Mid Grey |
