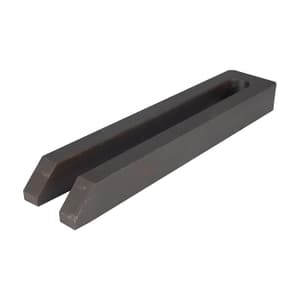

Apex 22 x 315 mm Open End Strap Clamp, 916-10
Roll over image to zoom zoom_in
- Product Type: Open-End Strap Clamp
- D x L (mm): 22 x 315 mm
- A (mm): 40 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2892.18 (Incl. of all taxes)
₹2451+ ₹441.18 GST (18%)
MRP ₹3770.55
SAVE 35%
5 Business Days
1 Pcs
82060010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Open-End Strap Clamp IS 4293-1984 (In accordance with the DIN 6315B Standard)
Features:
- Widely used for repetitive clamping applications frequent insertion and removal of the part being clamped.
Holding of press tool and huge castings/dies while machining. - As illustrated.
Construction:
-
Hardened and tempered steel R=80/90 kg/mm2.
Specifications
| SKU | HA.VI.OP.00010 |
|---|---|
| Product Type | Open-End Strap Clamp |
| Model No | 916-10 |

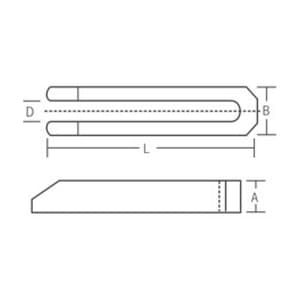

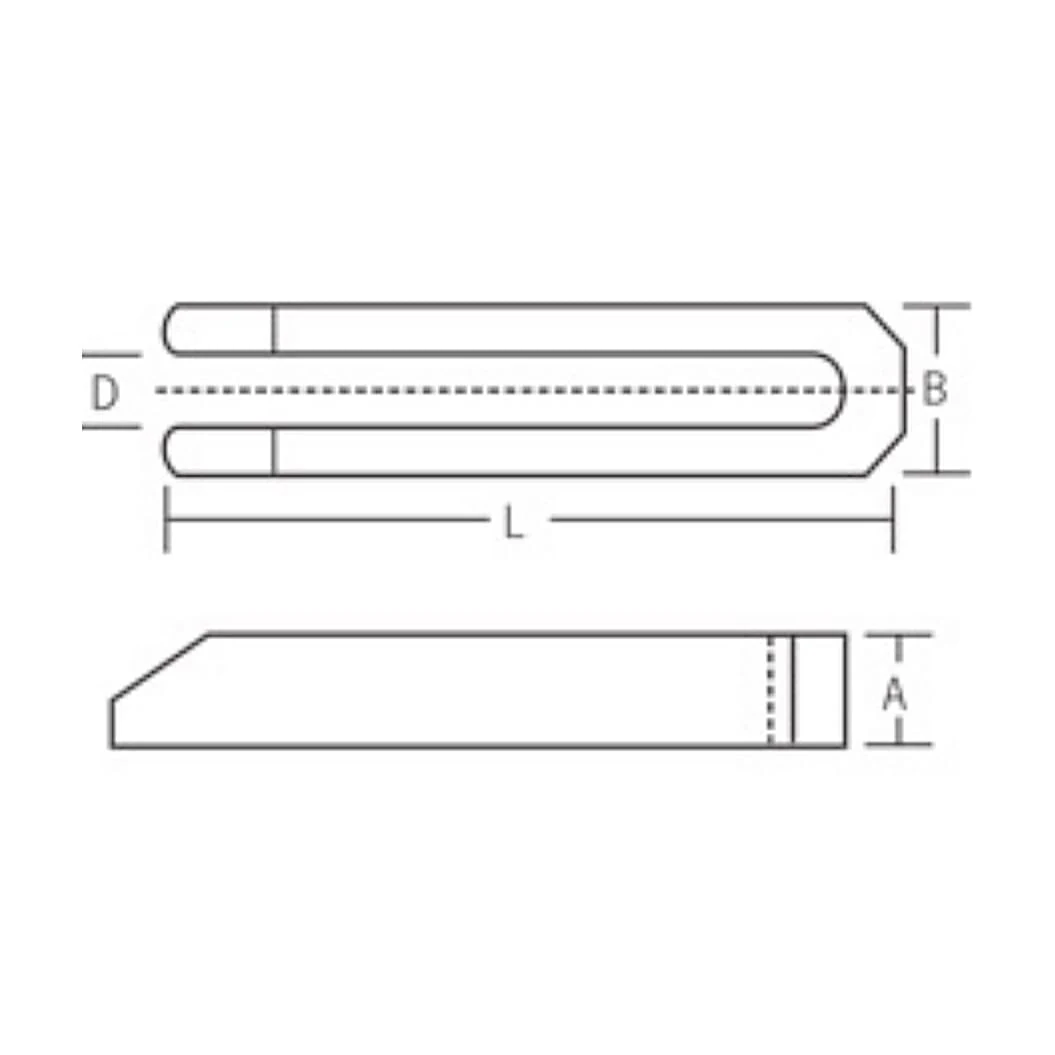

| D x L (mm) | 22 x 315 mm |
| A (mm) | 40 mm |
| B (mm) | 62 mm |
| Suitable for Screw Size | M20 |
| Finish | Black Penetrated |
