• High accuracy, easy reading of all dias clear & functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring, and spot facing with a milling machine.
• Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360°
• Provision for fine adjustments when settings workpiece.
• Efficient lock provided.
• Worm drive disengagement is quick and precise. An eccentric sleeve with thrust Bearing races encases the worm shaft.
• End play in worm shaft is adjustable.

Application:

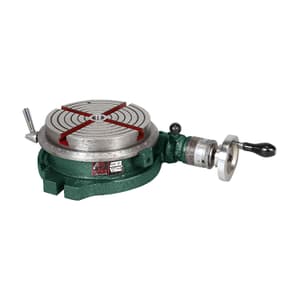

• APEX ROTARY TABLES have a sturdy design to suit many machining operations on Milling Machines including circular cutting, setting angles, and indexing. They are available in a range of sizes to suit various machines and machining applications.

Construction:

• The table and base are manufactured from close grain shock resisting Cast Iron dully stress relieved
• Worm & center table bush made of selected steel.

Inspection:

• Direct reading to 2 minutes for size 6",8" and 10" on hand
  wheel scale.
• Direct reading to 1 minute for size 12",15",18" and 20" on
  hand wheel scale.
• ACCURACY:- Maximum error 4 minutes of circular
  division using handwheels.
• Table flat to within 0.01 mm / 100 mm.
• The working surface rotates in its own plane to within 0.030
  mm.
• Horizontal and Vertical supporting surface square with
  0.01mm/100 mm.
• Centre bush bore is true to table axis within 0.03 mm.
• Maximum parallelism error through 360° rotation of the table
  is .025 mm.
• The Base is provided with two-bolt slots in
• 715E: Both horizontal slots in & Vertical mounting on the machine table.
