• Optional unit to enable the user to convert quickly Rotary Milling to using Indexing Plates.

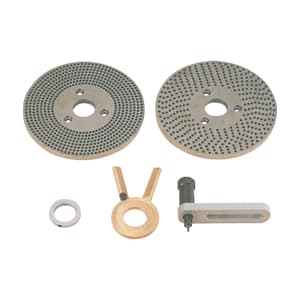

• The dividing plate set consists of 2 indexing plates, a sector & a handle with a plunger.
• The dividing plate set consists of 2 indexing plates, a sector & a handle with a plunger.
• Using this dividing plate set the indexing of 2 to 60 divisions can be attained quickly and accurately.

Application:

• APEX ROTARY TABLES have a sturdy design to suit many machining operations on Milling Machines including circular cutting, setting angles, and indexing. They are available in a range of sizes to suit various machines and machining applications.

Construction:

• The table and base are manufactured from close grain shock resisting Cast Iron dully stress relieved
• Worm & center table bush made of selected steel.

Inspection:

• Direct reading to 2 minutes for size 6",8" and 10" on hand wheel scale.
• Direct reading to 1 minute for size 12",15",18" and 20" on hand wheel scale.
• ACCURACY:- Maximum error 4 minutes of circular division using handwheels.
• Table flat to within 0.01 mm / 100 mm.
• The working surface rotates in its own plane to within 0.030 mm.
• Horizontal and Vertical supporting surface square with 0.01mm/100 mm.
• Centre bush bore is true to table axis within 0.03 mm.
• Maximum parallelism error through 360° rotation of the table is .025 mm.
• Both horizontal slots in & Vertical mounting on the machine table.
