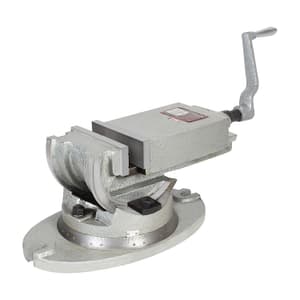

Apex 749 - 100 mm / 4 inch Preci Tilting & Swiveling Vice
Roll over the image to zoom in
Key Features
- Product Type: Machine Vice
- Weight: 20 kg
- Sizes (mm): 100 mm
- Size (Inches): 4 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,446 (Incl. of all taxes)
₹15,632 + ₹2,814 GST (18%)
MRP was MRP ₹24,049
Save 35%
5 Business Days
1
84669390
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Product Information
Highlights
- (Dovetailed Slide) Vee is sideways adjustable for giving prolonged working life.
- Manufactured to consistent accuracy to give prolonged reliable service.
- Bearing Surface Precision ground. Flatness within 0.0012" (30 microns)
- Once locked impossible to shift.
- Totally enclosed acme screw with the three-point location of operating in Manganese Bronze Nut.
- Tenon slot machined in back as standard for CNC use.
- Swivel base graduated through 360°
- Vertical Tilting Capacity 90°
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| Sizes (mm) | 100 mm |
|---|---|
| Size (Inches) | 4 inch |
| Vice Type | Preci Tilting & Swiveling Vice |
| Depth of Jaws (mm) | 40 mm |
| Length overall (mm) | 345 mm |
| Height Overall (mm) | 150 mm |
| Width Overall (mm) | 180 mm |
| Tenon Slot Size (mm) | 16 mm |
| Finish | Hammer Tone Ash Grey |
