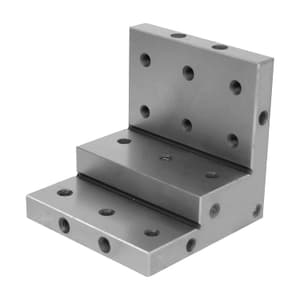

Apex 75 x 75 x 75 mm Stepped Angle Plates, 777-3
Roll over image to zoom zoom_in
- Product Type: Angle Plate
- Length (mm): 75 mm
- Width (mm): 75 mm
- Height (mm): 75 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹8937.32 (Incl. of all taxes)
₹7574+ ₹1363.32 GST (18%)
MRP ₹11651.85
SAVE 35%
7 Business Days
1 Pcs
8505
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A convenient step of 32 mm down from the top and a 12 mm seat alllows for use with smaller work pieces. Presence of 24 tapped hole allows for fastenings to fixtures & clamping work to the angle plate.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Application:
- An indispensable device for accurate work in tool room and in small production, jobs for checking flatness squareness and parallelism.
Construction:
- Manufactured from a single piece of hardened tools steel.
- Precision Ground, square and parallel.
Accuracy:
- Flatness working faces (5 Microns)
- Squareness exterior faces over height (10 Microns)
- Parallelism opposite faces & edges over their length ( 5 microns)
- Squareness and faces w.r.t. Exterior faces as measured over length (10 microns)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | HA.MA.AN.00113 |
|---|---|
| Product Type | Angle Plate |
| Model No | 777-3 |
| Length (mm) | 75 mm |
| Width (mm) | 75 mm |
| Height (mm) | 75 mm |
| Size (inch) | 3 x 3 x 3 inch |
| Thread Spec. of Tapped Holes | 1/4 inch BSW |
