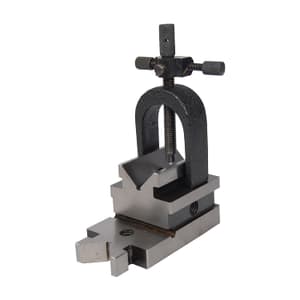

Apex 90 x 48 x 48 mm Ultimate V-Block & Clamp Set, 780-90
Roll over image to zoom zoom_in
- Product Type: 'V’ Blocks With Clamps
- Length (mm): 90 mm
- Width (mm): 48 mm
- Height (mm): 48 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹6492.36 (Incl. of all taxes)
₹5502+ ₹990.36 GST (18%)
MRP ₹8464.5
SAVE 35%
7 Business Days
1 Pcs
8505
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Capable of being used on base, on end flat on either sides as the clamp is within the outside width of the block.
- Adjustable side screw with cap in the clamp supports the block and prevents tilting during drilling, milling or grinding operations.
- Four 3/8"-16 tapped holes, two in the base and one on each side allow attachment to an angle iron which can then be attached to a lathe face plate or held by a magnetic chuck
- Grooves at the stepped end, right angled to the base, provides handy means for holding shouldered stud, round Pins etc.
Construction:
- Manufactured from Selected Steel, Vee Blocks are fully hardened and ground.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | HA.MA.VB.00059 |
|---|---|
| Product Type | 'V’ Blocks With Clamps |
| Model No | 780-90 |
| Length (mm) | 90 mm |
| Width (mm) | 48 mm |
| Height (mm) | 48 mm |
| Clamping Capacity (mm) | 33 mm |
