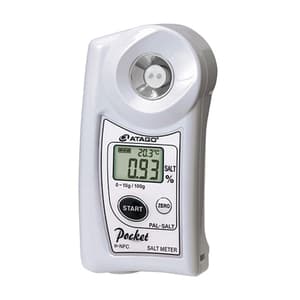

It is ATAGO's first salt meter to come with the offset features. PAL-SALT is widely used in various industries for food and industrial solutions. For food products, in addition to checking salt content, salt meter is used to make sure salt is properly added and not forgotten for such product as bread, rice balls and frozen. For industrial use, salt meter is widely used for salt resistance test for cars and such.

Features:

• Eco-friendly and Cost-effective Salinity Measurement.
• Program a dilution factor to display the original salt%
• Program a conversion factor to align the readings with titration methods.

Why choose the ATAGO Salt meter?

	Sturdy titanium electrodes. Mere 0.08% failure rate. The world’s first to use durable and sturdy “titanium” electrodes. The use of titanium electrodes conquered typical issues like susceptibility to scratches over a period of time and fluctuating measurement results that are common with gold plated electrodes.
	Completely water-protected model, no other offers Rated IP 65 water protection. Ready to sustain tough conditions whether in a kitchen or production floor.
	Salinity to a decimal point We have heard many concerned voices with the accuracy of the conventional salt meters that only display rough estimated salt levels and how results may vary depending on how the sample was measured. ATAGO’s salt meter will not just estimate whether it is too salty or not, but rather numerically display the result as a salt concentration.
	Accurate measurement with a calibration function The majority of the simplified conventional salt meters do not have calibration function and cannot be calibrated even when measurement values are off. ATAGO’s salt meter can zero set to air and provide calibration service as the JCSS verified manufacturer.
	High-temperature soup can be measured accurately with drop style PAL-SALT High temperature and oil containing soup dishes such as miso soup, tsuyu for oden (soup sauce for Japanese one-pot dish consisting of several ingredients such as eggs, konjac and processed fishcakes), ramen soup, can be measured with stable readings. The sample temperature can be anywhere from 5 to 100 ? (41 to 212 °F).
	Solid samples such as ham, bacon, or himono (dried fish) can be measured Solid samples such as ham, bacon, himono, potato chips can be measured by diluting cut or chopped small pieces with water. ATAGO’s salt meter can be used by those with high blood pressure or other lifestyle diseases that would like to record a daily salt consumption measurement.
	Perfectly compact size with portability A perfectly compact size to be used on a production floor. Its light weight allows to easily take measurement at home or even when dining out for personal health monitoring.
	Highly chemical-resistant PBT body Highly chemical-resistant material, PBT (Polybutylene Terephthalate) is used as a casing material. Unbreakable and sturdy body casing.
	Renewal! New release of PAL-Fish Fillets PAL-FM1 has been renewed and released as a new version, PAL-Fish Fillets - ideal for measuring both dried fish and raw fillets! It is now possible to measure closer to titration values and more precisely with a minimum error of 0.0%*! In addition, by expanding the temperature compensation range to 5 - 40°C, which is more in line with actual environmental site temperatures, measurements have become more stable. Insert the probe into the fillet and in just 3 seconds receive a value that is close to titration. PAL-Fish Fillets frees the user from the hassle and trouble of past methods! According to research. Results depend on the type and position of dried fish and raw fillets being measured.

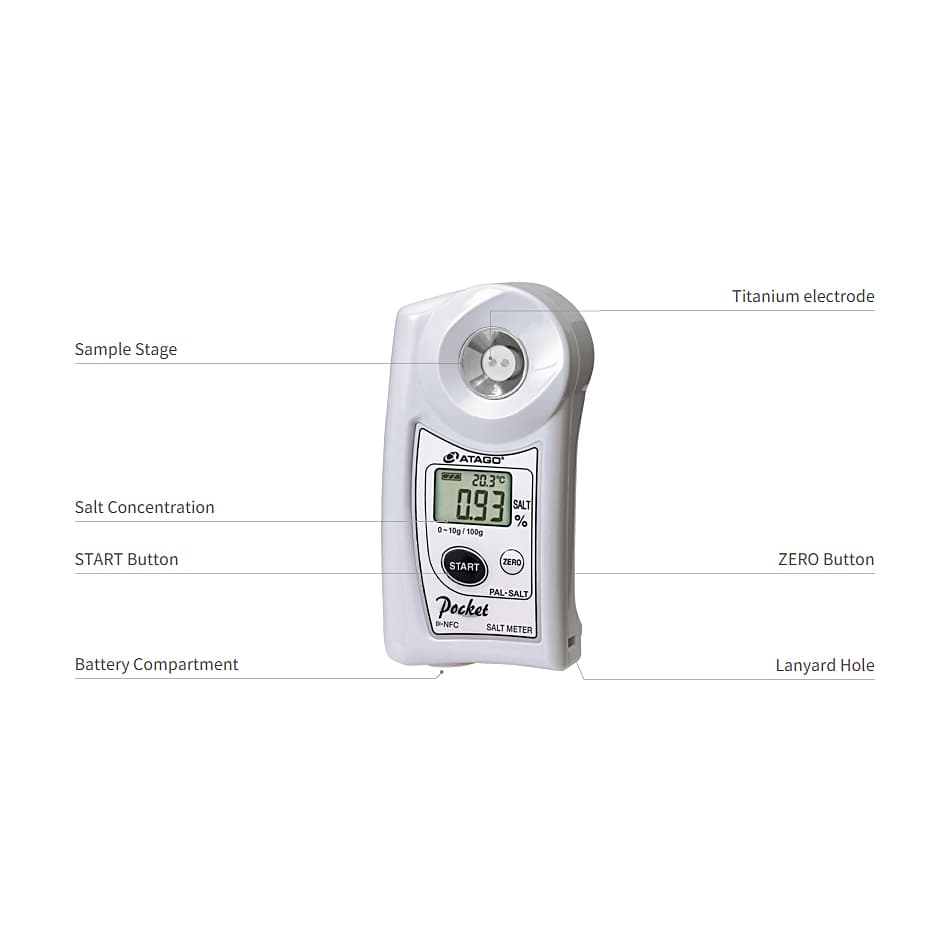

Fast - Results are displayed within 3 seconds. Easy measurement - Just press the START key. Easy calibration - Clean the sensor and press the ZERO key. Digital display - No more varied readings caused by user interpretation. Automatic Temperature Compensation - Reliable for any samples, hot or cold.

Applications:

• Soy sauce and miso
• Sauce/Tare/Ketchup/Tomato Paste/Curry
• Dressings/Mayonnaise
• Pickles & Pickling Solutions
• Soup Stock, Soup & Ramen Soup
• Stewed dish & Oden
• Rice, Onigiri, Takikomi Gohan & Fried Rice
• Bread
• Boiling Water for Pasta
• Butter
• Cheese
• Smoked Meats, Ham, & Sausage
• Pickled Fish
• Dried Fish
• Fish Eggs
• Fish Paste Products
• Shellfish
• Smoked Meats/Ham/Sausage
• Seawater
• Brine For Cooking For Agriculture
• Tiger pufferfish & Carp

Measurement Method:

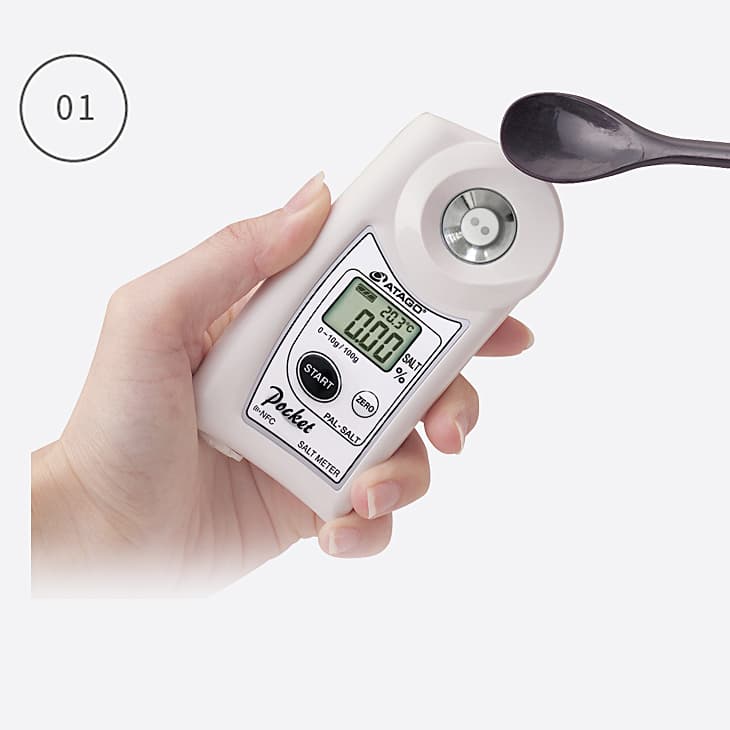

	Apply 2 to 3 drops of the sample on the prism surface.

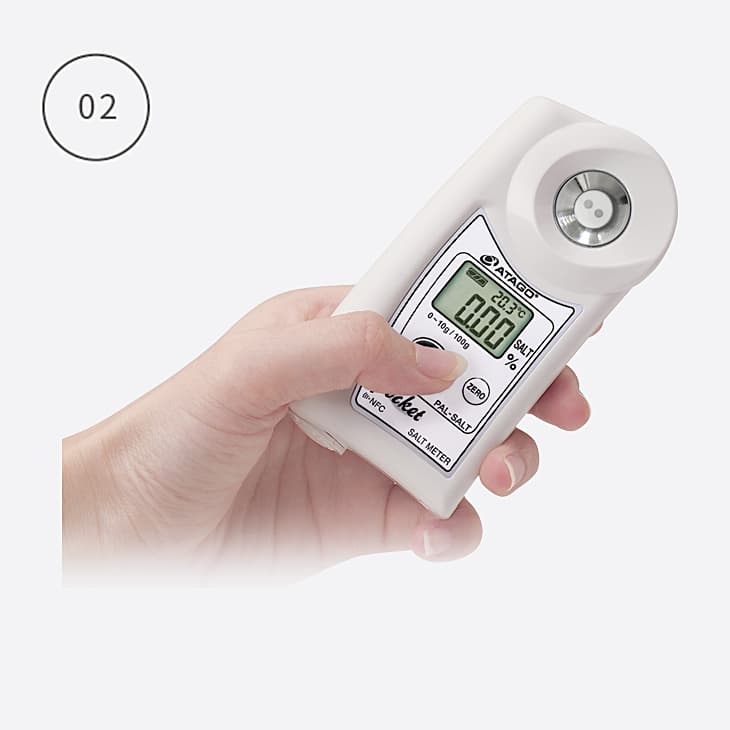

	Press the START key.

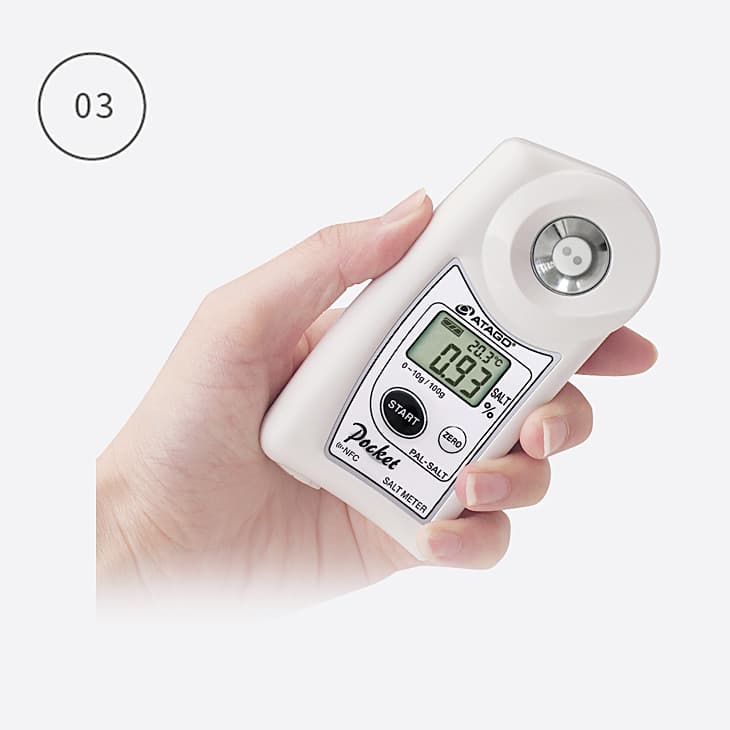

	The measurement value is displayed in 3 seconds.

Measuring Tips:

	Thin, drinkable liquids: Thinner or lower-concentration liquids, such as soup or miso soup, can be measured by placing a few drops of the sample directly on the sensor.
	Thick, syrupy or paste-like liquids: Sauces, soup bases, seasonings, gravies and such need to be diluted to 10% for accurate measurement results. Anything that is highly concentrated (anything that measures above 6% Brix with a refractometer), must be diluted. The PAL-SALT and ES-421 measure the conductivity of electrolytes through electrical currents (conductivity). The thicker a solution is, the more closely the molecules are packed, and therefore, the less conductive. This makes the sample more difficult to measure. If not diluted, the measurement values may appear lower than the actual salt content.
	Products with a salt content that exceeds the measurement range (above 10% salt): Products that contain more than 10% salt, such as pickle brine, need to be diluted. For example, the 10 times dilution of 12% salt brine will measure 1.2%, and the 5 times dilution will measure 2.4%. Adjust the dilution factor so that the salinity falls within the measurement range.

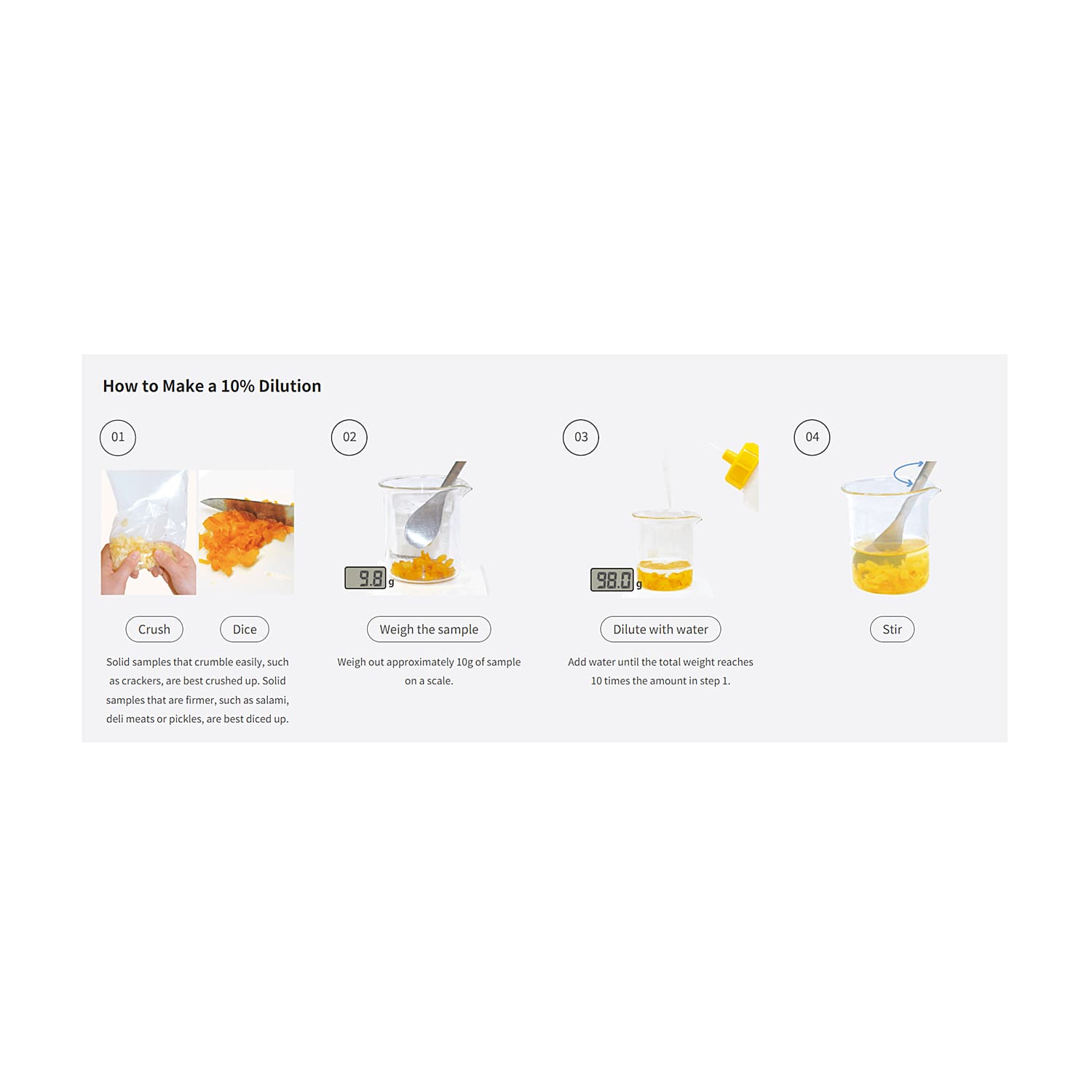

	Solid food: Solid foods (ham, bacon, dried foods, and fish) need to be minced, ground, or crushed, diluted with water (1:10 dilution), and mixed thoroughly. As a general guideline, let sit for a few minutes (approx. 3 minutes) to allow the salt to leach out of the food. Depending on the qualities of the sample (whether or not the salt is easily drawn out into the water), the salt concentration of the food, the mincing or crushing method, or how well the sample is mixed with the water, the time needed for the salt to be drawn out into the water will vary. Set a soaking period that works for each product (that allows the salt to be thoroughly drawn out). Measure the salinity of the water and multiply the reading by 10. The PAL-SALT PROBE also has a probe sensor that can be inserted directly into the solid sample for measurement.
	Oily/fatty food: Foods containing oil or fats can also be measured. However, the measurement values of foods that have oil floating on their surface, such as Ramen soup (a Japanese noodle soup), may be unstable. If the readings fluctuate when measuring oily/fatty foods, try stirring the sample, and measure again for more stable readings. When measuring the salinity of oil-packed products, extract the sample from the oil and allow excess oil to drain. Mix 10g of sample with 90g of water to create a 10% dilution. Mix or shake very well and let settle. Residual oil should float to the top of the container. Take a sample from below the oil layer and place on the sensor. Multiply the displayed reading by 10 to obtain the salt concentration of the original sample.

Why choose the ATAGO?

• Proud Heritage and Experience: ATAGO has over 70 years of experience in optical instrument manufacturing. With our expertise cultivated over decades, as well as an extensive selection of instruments, we can meet a variety of measurement needs including highly specialized industries.
• Industry-Leading Technology: Refraction of light has been our sole specialty throughout the existence of ATAGO and we strive for perfection in optical systems. We listen to end-user feedback from 154 countries and continuously push the limit of refractometry.
• Trusted Product Support: We dedicate ourselves on the high durability and low failure rate of ATAGO products. Our repair service is carried out in a timely manner. Calibration certificates are available.
• Made with Japanese Quality

Notes :

• All ATAGO products are designed and manufactured in Japan.
• ATAGO products comply with HACCP, GMP, and GLP system standards.
• Specifications and appearance are subject to change without notice.
