• This model is specifically designed for measuring specific gravity of battery sulfuric acid.
• The DH-10C allows users to easily measure the concentration of sulfuric acid without coming in contact with this highly corrosive acid.
• Cleaning and zero-setting can be done with tap water.

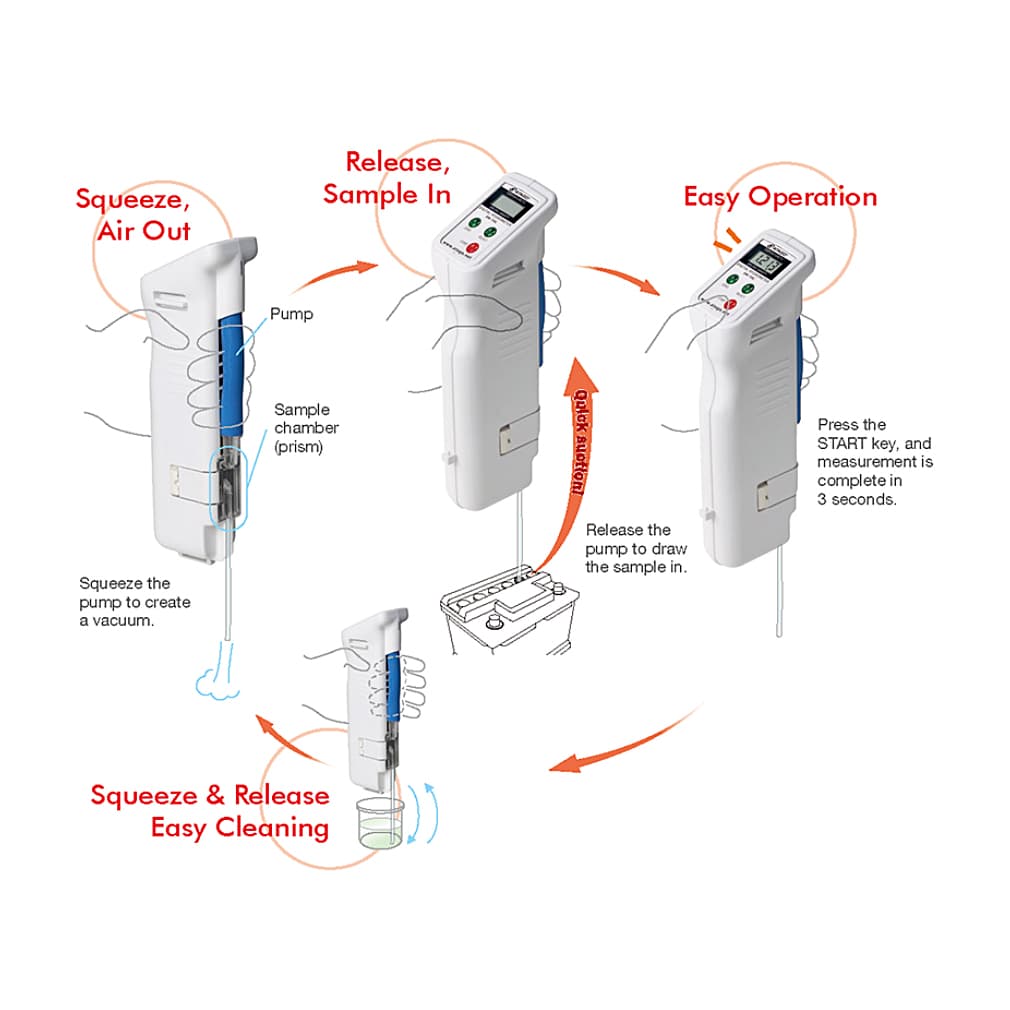

• Single-handed operation without contact liquids

Accuracy:

• ±0.002 (10 to 30°C)
• ±0.003 (0 to 10 and 30 to 40°C)
• ±0.005 (-10 to 0 and 40 to 50°C)

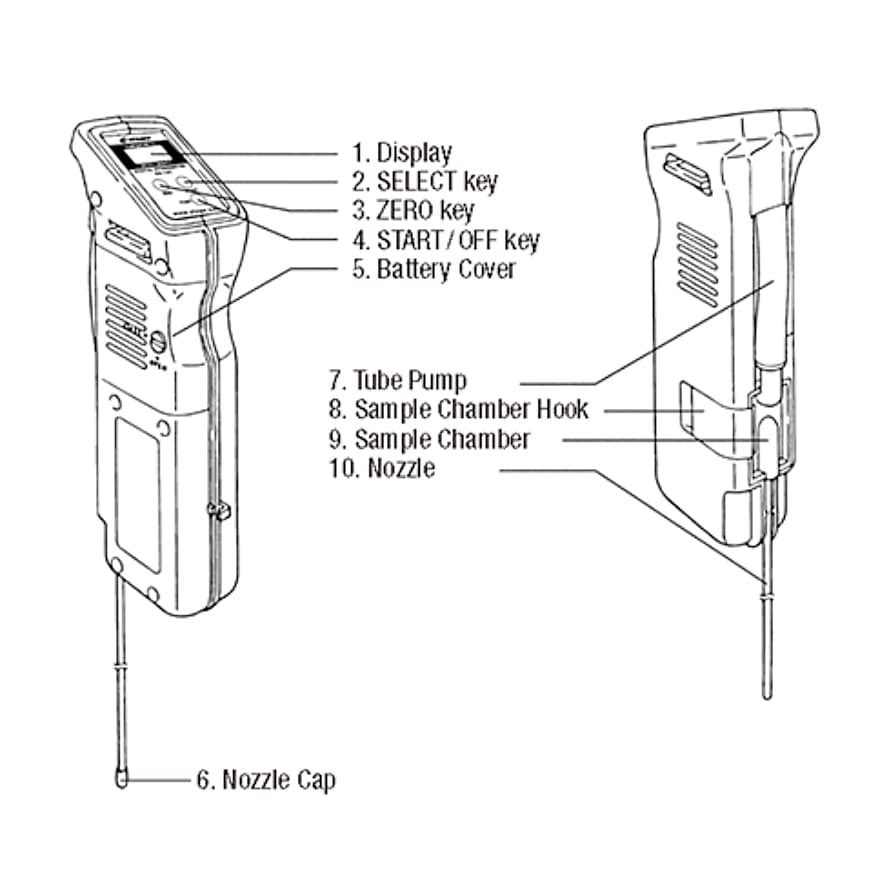

Names & Functions of Parts:

Display: The liquid crystal display provides a digital readout of the measured values SELECT Key: Used to select a measurement Item. The item to be displayed switches between TEMPERATURE and MEASURE each time this key is pressed. (Specific gravity of electrolyte) ZERO Key: Used for zero-setting START/OFF Key: Press to take a measurement, To turn off the insturnent. press and hold down the key for 2 seconds. Battery Cover: Remove to insert or to change the battery. Nozzle Cup: Used to protect the tip of the nozzle Tube Pump: The tube pump is made of rubber. Squeeze and released the Tube pump to remove the sample Sample Chamber Hook: Used to hold the sample chamber in place. Sample Chamber: The removed sample is stored in the sample chamber for measurement Nozzle: The sample is extracted through the Nozzle

Package Content:

• 1x Digital Hydrometer
• 1x 95 mm stainless pipe
• 1x  95 mm silicon tube

Why choose the ATAGO?

• Proud Heritage and Experience: ATAGO has over 70 years of experience in optical instrument manufacturing. With our expertise cultivated over decades, as well as an extensive selection of instruments, we can meet a variety of measurement needs including highly specialized industries.
• Industry-Leading Technology: Refraction of light has been our sole specialty throughout the existence of ATAGO and we strive for perfection in optical systems. We listen to end-user feedback from 154 countries and continuously push the limit of refractometry.
• Trusted Product Support: We dedicate ourselves on the high durability and low failure rate of ATAGO products. Our repair service is carried out in a timely manner. Calibration certificates are available.
• Made with Japanese Quality

Notes:

• All ATAGO products are designed and manufactured in Japan.
• ATAGO products comply with HACCP, GMP, and GLP system standards.
• Specifications and appearance are subject to change without notice.
