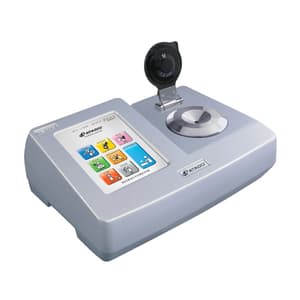

The most accurate refractometer in the world is now even more stylish, smart, and functional,featuring intuitive touch screen technology, the new RX-i series makes navigation and selection a breeze.The RX-5000i measures with the same accuracy level as the RX-5000α ±0.03% Brix and ±0.00004 nD.The RX-i series come with newly added functions, such as USB flash drive and self-diagnosis capability.

This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.FDA 21 CFR Part 11 Software Included in Standard Delivery.

Features:

• Predefined Scales
• Flash memory, capable of recalling the last 500 measured values.
• Up to 100 user scales can be programmed.

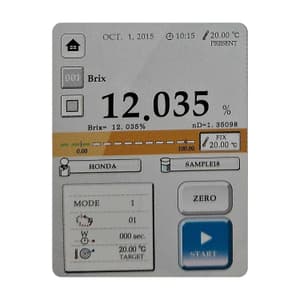

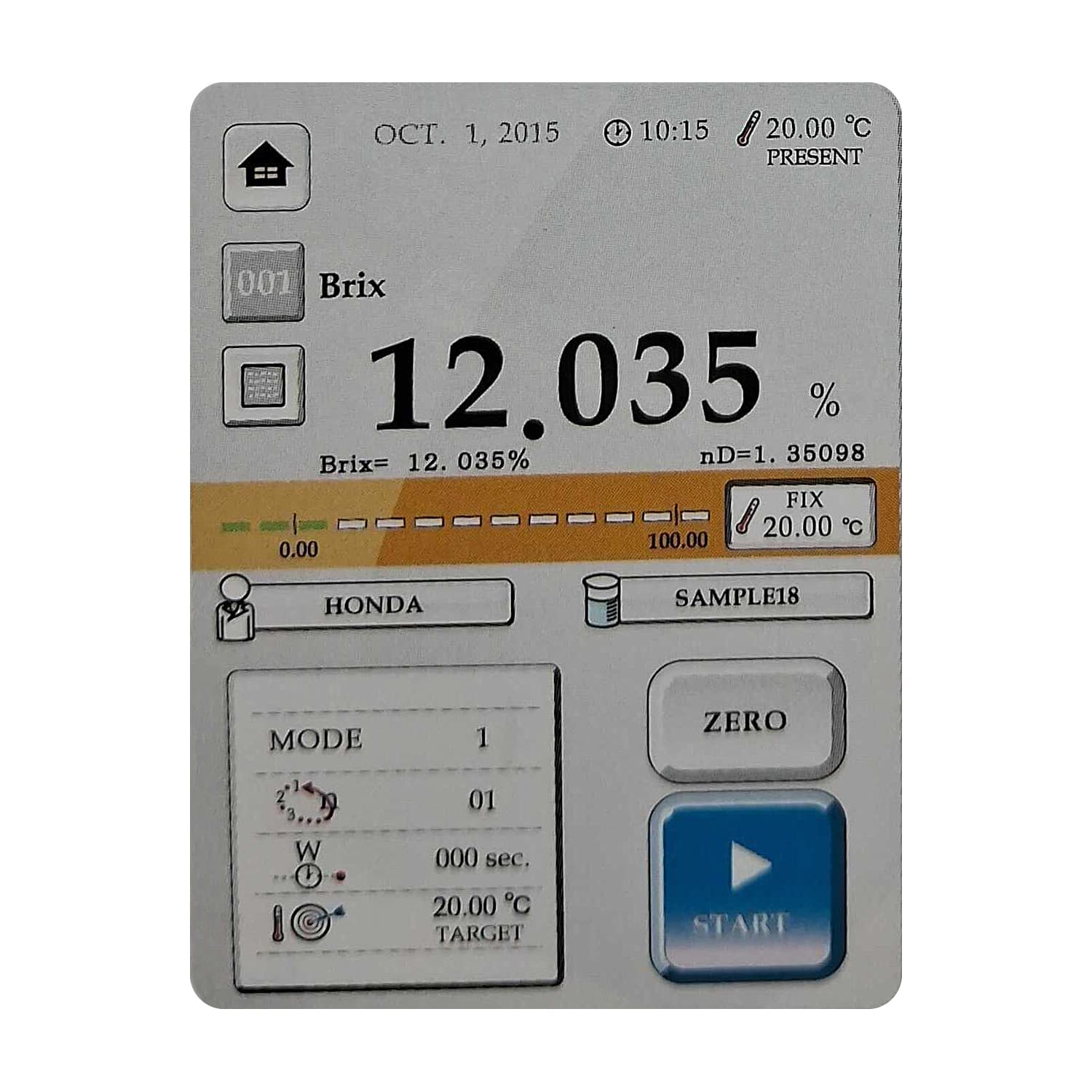

• Display method: 7.5-inch color LCD (touch screen) with backlight LED
• Graphic display: If top and bottom limits of standard value are set, top and bottom limit bar is displayed
• Input of user scale: If 3 to 5 points of a user scale corresponding to the refractive index are inputted, a conversion formula is automatically created.

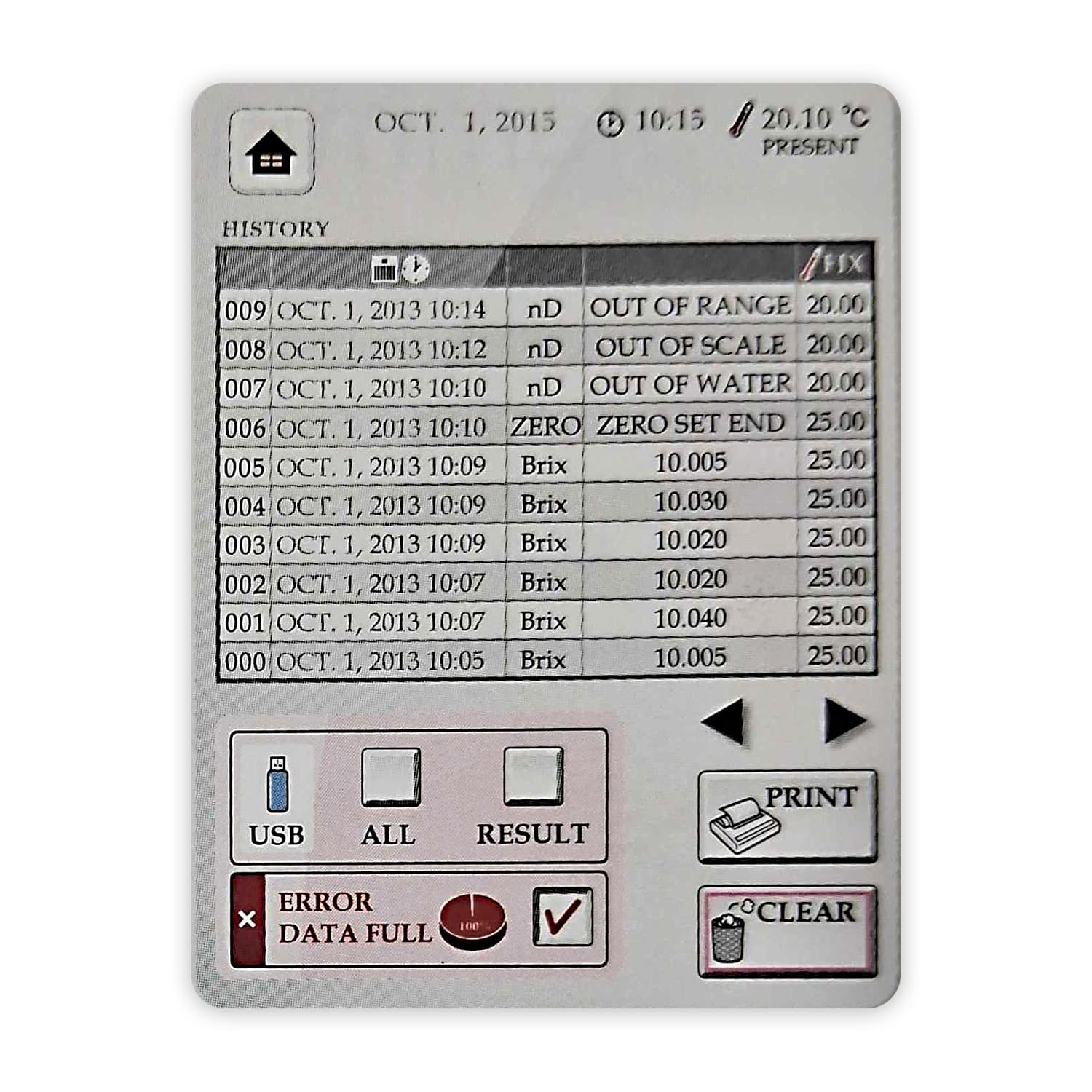

• History function: Up to 500 latest measurements can be displayed and can be printed
• Zero adjustment: Zero point is adjusted with distilled water.

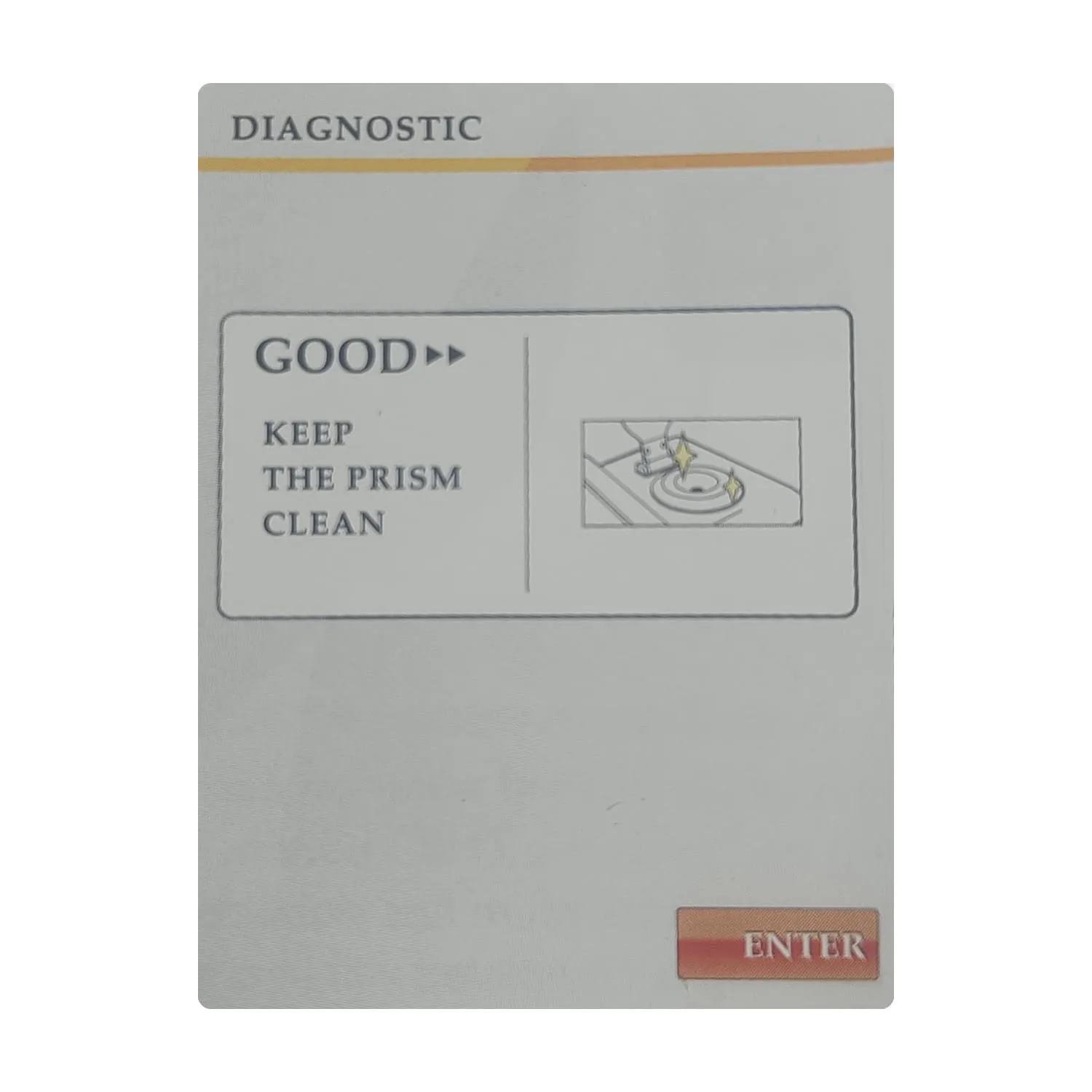

• Self-Diagnosis: The instrument can detect irregularities by itself with the intensity of light or waveform.
• Light source: LED (Approximating to wavelength of D-line)
• Environmental conditions: 5 to 50°C (Using temperature) / Max. 90%RH (Using humidity) / Max. 2000m (Using altitude - Above sea level)

5 Measurement Mode Options:

• Maximum accuracy (Mode-1): Displays the measurement value once the sample reaches the target temperature.
• Fast results (Mode-2): Measures the Refractive Index and temperature at fixed intervals and displays the estimated measurement value at the target temperature.
• No temperature control (Mode-3): Provides an option to turn tse thermo-module off. Without temperature control, the measurement value is displayed in 4 seconds after the START key is pressed.
• Emulsion samples (Mode-S): Displays the measurement value once a certain level of sample stability is achieved.
• Recommended for Measuring Low Brix Liquid Samples (such as teas) (Mode-T): Equipped only on the RX-5000i-Plus, MODE-T is recommended for users who place importance on obtaining highly repeatable results (Brix 0.001%).

Pre-programmed Special Scales:

• Glucose
• Fructose
• HFCS-55
• HFCS-42
• Inverted Sugar
• Honey moisture
• Hydrogen peroxide
• Sodium hydroxide
• Sodium chloride(w/w)
• Sodium chloride(w/v)
• Salinity
• Ethyl alcohol(w/w)
• Ethyl alcohol(v/v)
• Ethylene glycol
• Propylene glycol
• Glycerin
• Urea
• Urine S.G.
• Copper sulfate S.G.
• Vol%FSII(fuel system icing inhibitor)based on ASTM D5006

Applications:

Refractive Index (nD)	Liquid medicines, Liquid rubber, Methylene chloride, Chemical agents, Plasticizer, Chinese herbal, medicine, Diesel oil, Cosmetics, Gel solutions, Crude oil, Industrial chemicals, Synthetic resin, High polymers, Fragrance, Citrus oil, Heavy oil, Plastic liquid solution, Vegetable fat and oil, Cooking oil, Concentrated solutions, Spice essential oil, Oil refinery, production, Silicon oil, Animal oil and fat, Polyether fluid, Polymer fluids, Sodium Silicate, Organic sulfur, compound, Organic solvent (Toluene)
Brix Measurements	Corn syrup, Liquid sugar, Liquid egg, Fruit concentrates, Fruit puree, Canned syrup, Glucose, Ketchup, English tea, Coffee, Cocoa, Condensed milk, Jam, Soy sauce, Vinegar, Starch, Soft drinks, Sauce (Various), Tea drinks, Seasoning liquid, Seasoning soy sauce, Soybean milk, Waste liquid of sugar, Tomato juice, Milk drinks, Honey, Fermentation liquor, Pickling solution, Starch syrup, Sweet syrup, Gelatin.
User Scale Measurements	DMF, IPA, PVA, Amino acid, Ammonia, Ethanol, Ethylene glycol, Propylene glycol, Liquid starch, Water-soluble cleaning solution, Coolant solution, Calcium chloride, Sodium chloride solution, Saltwater, Surfactants, Hydrogen peroxide solution, Sodium hydroxide, Soluble cutting oil, Citric acid, acetic acid, Glycerin, Lubricating oil, Tobacco leaf extract, Sodium carbonate, Antifreeze agents, Urine, Broth, Injection solution, Spinning solutions, Rust inhibitor, Formalin, Fire extinguishing solution, Metalworking fluid, Cupric sulfate

Why choose the ATAGO?

• Proud Heritage and Experience: ATAGO has over 70 years of experience in optical instrument manufacturing. With our expertise cultivated over decades, as well as an extensive selection of instruments, we can meet a variety of measurement needs including highly specialized industries.
• Industry-Leading Technology: Refraction of light has been our sole specialty throughout the existence of ATAGO and we strive for perfection in optical systems. We listen to end-user feedback from 154 countries and continuously push the limit of refractometry.
• Trusted Product Support: We dedicate ourselves on the high durability and low failure rate of ATAGO products. Our repair service is carried out in a timely manner. Calibration certificates are available.
• Made with Japanese Quality

Notes:

• All ATAGO products are designed and manufactured in Japan.
• ATAGO products comply with HACCP, GMP, and GLP system standards.
• Specifications and appearance are subject to change without notice.
