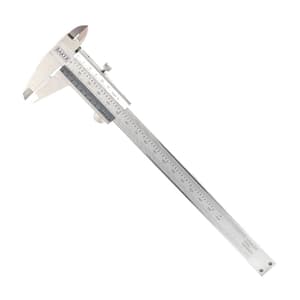

Baker 200 mm / 8 inch Vernier Caliper Without Fine Adjustment (VC Series), VC20

Shop all Baker

SKU: ME.CA.VE.00078

Model: D85089000, VC20

Roll over image to zoom zoom_in
  1. Baker 200 mm / 8 inch Vernier Caliper Without Fine Adjustment (VC Series), VC20
  2. Baker 200 mm / 8 inch Vernier Caliper Without Fine Adjustment (VC Series), VC20
  3. Baker 200 mm / 8 inch Vernier Caliper Without Fine Adjustment (VC Series), VC20
Visit Baker Store keyboard_double_arrow_right
  • Product Type: Vernier Caliper
  • Range (mm): 0 - 200 mm
  • Range (Inches): 0 - 8 inch
  • Reading: 0.02 mm / 0.001 inch
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹3115.2 (Incl. of all taxes)

₹2640+ ₹475.2 GST (18%)

MRP ₹3220

SAVE 18%

2 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

VC series Mechanical Vernier calipers available from 0-130mm to 0-300mm. Measures OD, ID, Step and Depth. Robust, hardened and ground SS jaws & beam.

Features:

  • Every gauge carries a calibration certificate giving actual values
  • With 0.02 mm / 0.001” Least Count
  • Measures OD, ID, Step and Depth
  • Accuracy as per DIN 862
  • Robust, Hardened and Ground stainless steel jaws and beam

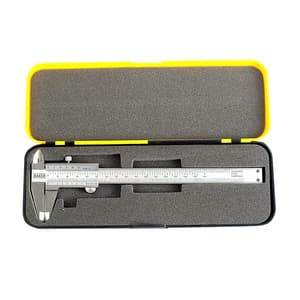

  • Supplied in a sleek plastic box

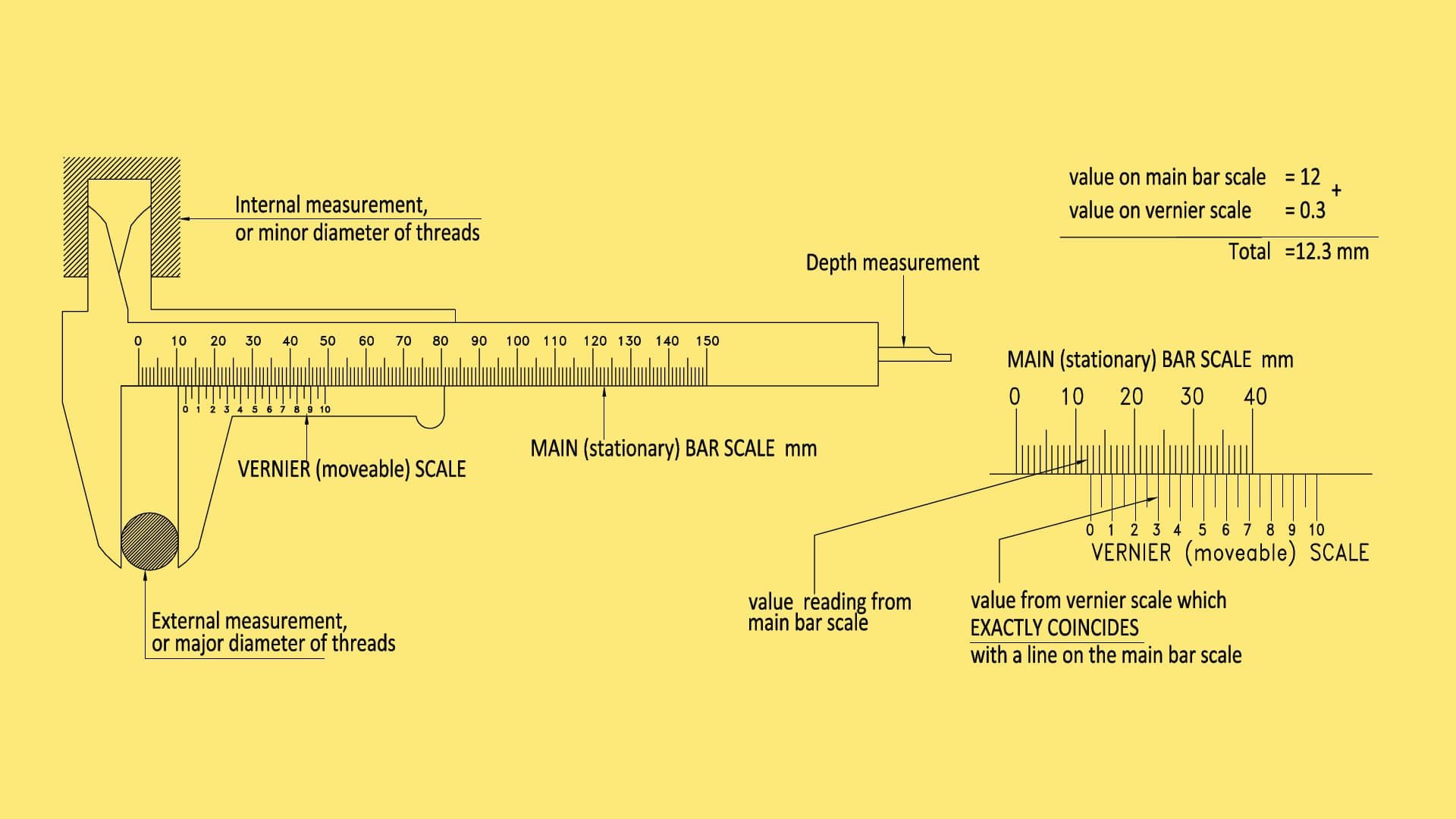

How To Read A Caliper:



  • Read the value of the main (stationary) scale which is just to the left & above the “0” zero reading on the vernier (movable) scale
  • Then add the value on the vernier (movable) scale which exactly coincides with a line on the main (stationary) scale

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.CA.VE.00078
Product TypeVernier Caliper
Model NoD85089000, VC20
Range (mm) 0 - 200 mm
Range (Inches) 0 - 8 inch
Reading 0.02 mm / 0.001 inch
Material Stainless Steel
