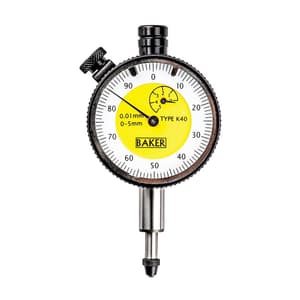

MODEL 40 Mechanical SMALL diameter Plunger type Dial gauge, Fitted with Jewels, ideal for small bore gauges like 10 to 18mm, Tungsten carbide ball anvil, rigid case for increased strength.

Features:

• Specification: IS, DIN, ANSI & JIS
• Small diameter dial – convenient for use where space is limited
• Ideal for small Bore Gauges like 10 to 18 mm
• Jeweled to give accuracy and longer operational performance
• Each gauge carries a calibration certificate giving actual values
• Spindle made of stainless steel
• Fitted with tungsten carbide ball anvil
• The rigid case for increased strength
• Strong and smooth metal bezel
• Supplied with tolerance pointers
• Aesthetically appealing protective top cap in black color
• Metric Gauges conform to company standard
• Inch Gauges conform to ASME B89.1.10M
• Special dial Gauges for OEMs also manufactured on request
• Complete spares and after-sales service available

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
