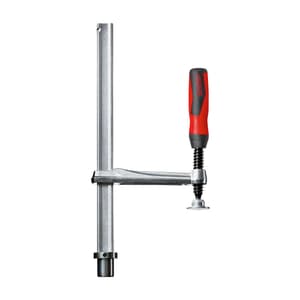

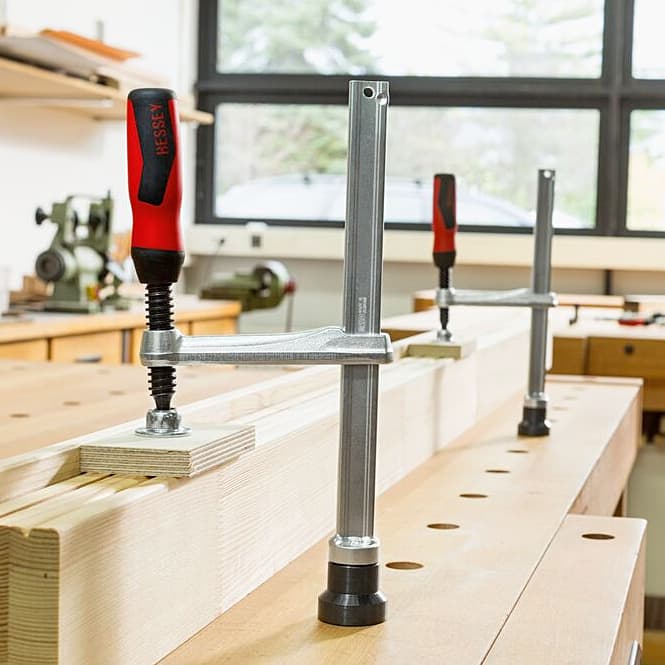

• Precise, individual clamping
• Tempered profile and sliding arm for sprung and elastic clamping
• Various design versions:
• High quality 2-component plastic handle and tommy bar with rounded ends – each with smooth-running trapezoidal threaded spindle and tool-free pressure plate replacement
• Lever handle with an indexing mechanism for controlled, fast and vibration-proof clamping

Features:

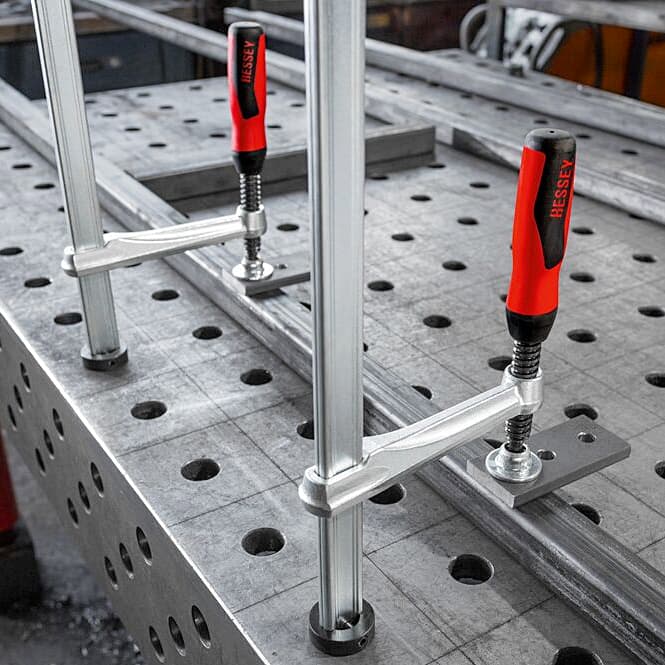

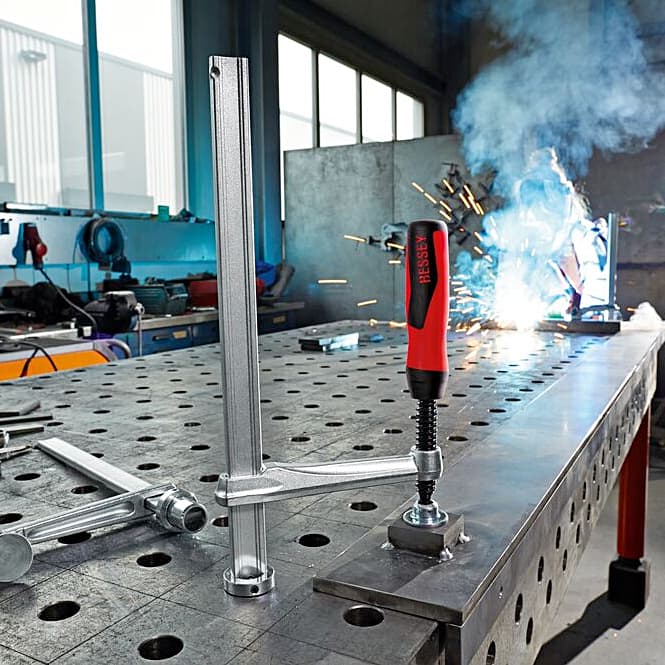

• Flexible throat depth: BESSEY TWV clamping elements for welding tables not only have infinitely adjustable throat depth, but are also available in 3 handle variants.
• 100, 120 mm or 140 mm throat depth: On BESSEY TW clamping elements, you can choose among 3 handle variants and 3 throat-depth variants.
• Heavy-duty, custom design: The TWM28 clamping element has a heat-resistant special pressure plate with sintered steel insert, which can be pivoted up to 35°. On the TW28GRS gripping arm variant the spindle is located on the outside, which enables – among other things – free access to the work area.
• Perfect for railings: Whether the workpiece is round, oval or square, the TWVAD Vario table clamping attachments are ideally suited
• Applying the quick clamp: Thanks to the TWA-STC adapter and the appropriate TWX extension, BESSEY toggle clamps with a horizontal base plate can also be rapidly applied to welding tables.
• Diagonal and horizontal clamping: The tilting adaptor TW28AV used in conjunction with the extension TW28X allows angled or horizontal clamping in a range from -52deg. to +52deg.

Areas of Application:

• Metal construction
• Locksmith work
• Self-welding from the specialists in clamping tools

Safety information

• Use the product only in its original condition.
• Use the product only for its intended purpose. Improper use can cause personal injury or property damage.
• Wear safety glasses to protect your eyes.
• Wear work or assembly gloves to protect your hands.
• Wear safety footwear to protect your feet.
• Thew handle must always be free of oil and grease to prevent slipping.
• Keep the product out of reach of children.
• Small parts must not be swallowed or inserted into body openings.
• Check the product for damage before each use and make sure that all moving parts are working properly.
• A damaged product must not be used.
• Follow the care instructions for each product – see www.bessey.de.
• Use only original BESSEY spare parts
• The clamping tool must not be used for lifting, pulling or leaning.
• The clamping tool must not be used to secure cargo during transportation.
• The clamping tool may only be tightened by hand without any additional aids.
• The clamping tool must not be used for permanent installation.
• Regularly check that the end stop is working properly when using clamps.

Material / Surface

• Rail and sliding bracket made of tempered steel, galvanised
• Spindle with trapezoidal thread in tempered, rolled steel, phosphated
• Handle made of 2-component plastic
• Toggle made of steel, galvanised
• Pressure plate made of steel, phosphated
• Connecting elements made of steel, galvanised or phosphated

Care instructions

• Regular maintenance is necessary – only then can a secure hold be guaranteed (no slipping of the sliding bracket).
• Clean the rails with solvent.
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents.
• Clean and oil the spindle regularly.
• Clean and oil the pressure plate regularly (not with lever version).
• If the rail is shiny, roughen both narrow sides with emery cloth (100 grain).
• Clean and oil the pawl regularly (lever version only).
