The Fluke 772 loop meter adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing.

You'll be able to test 4–20 mA signals five times faster than with traditional DMMs, and without breaking the loop. That means you can troubleshoot a live device without having to power down, which can save you time, and help you avoid possibly missing something going on in the process.

Features:

• Loop meter that measures 4 to 20 mA signals without breaking the loop
• Features best in class 0.2% accuracy
• Simultaneously measures the mA signal with the clamp and sources a mA signal
• Delivers 0.01 mA resolution and sensitivity
• Measures mA signals for PLC and control system analog I/O

Other Useful Features:

• Simulates 4-20 mA signals for testing control system I/O
• Sources 4 to 20 mA signals for testing control system I/O or I/Ps
• Measures 4 to 20 mA signals with in-circuit measurement
• Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
• Features a detachable clamp with extension cable for measurements in tight locations
• Captures and displays changing measurements with Hold function
• Offers mA output linear ramp or 25% step output
• Extends battery life with auto-off and backlight timeout
• Dual backlit display with both mA measurement and percent of 4 to 20 mA span
• Measurement Spotlight to illuminate hard to see wires in dark enclosures
• Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
• Automatically changes the 4 to 20 mA output for remote testing.

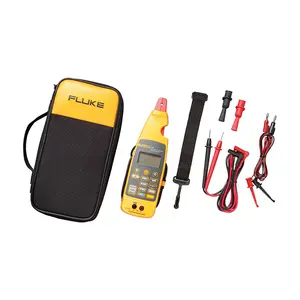

What's Included In This Package:

• Fluke 772 Milliamp Clamp Meter
• (1 pair) TL75 test leads
• AC72 detachable clip
• (1 pair) TL 940 mini hook test leads
• (4) AA alkaline batteries (installed)
• Soft carrying case
• Magnetic Hanging Strap
• Quick Reference Guide

Specifications:

mA measurement (measured by clamp)	Resolution / range	0 to 20.99 mA
	Accuracy	0.2% + 5 counts
	Resolution / range	21.0mA to 100.0 mA
	Accuracy	1% + 5 counts
mA measurement (measured in series with test jacks)	Resolution / range	0 to 24.00 mA
	Accuracy	0.2% + 2 counts
mA source (maximum mA drive: 24 mA into 1,000 ohms)	Resolution / range	0 to 24.00 mA
	Accuracy	0.2% + 2 counts
mA simulate (maximum voltage 50 V dc)	Resolution / range	0 to 24.00 mA
	Accuracy	0.2% + 2 counts
