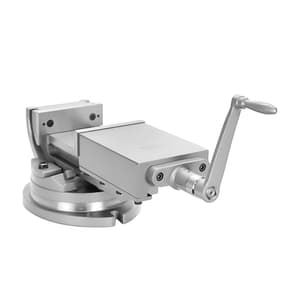

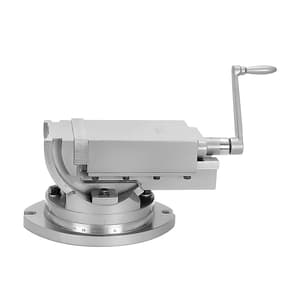

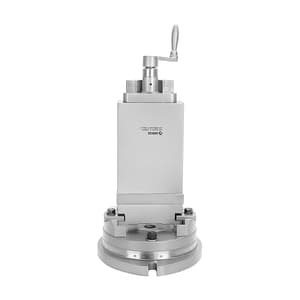

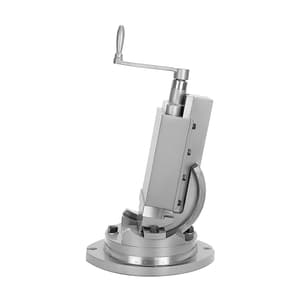

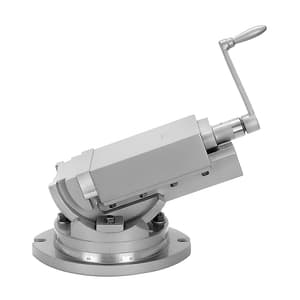

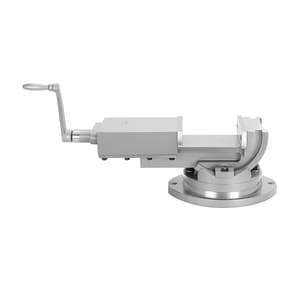

Groz 150 mm / 6 Inch Super Precision Angular Machine Vice (Swivel Base), AMV/SP/150
Roll over image to zoom zoom_in
- Weight: 42.8 Kg
- Product Type: Machine Vice
- Sizes (mm): 150 mm
- Size (Inches): 6 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹38491.6 (Incl. of all taxes)
₹32620+ ₹5871.6 GST (18%)
MRP ₹46600
SAVE 30%
Out of Stock
3 Business Days
1 Pcs
8205
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- "Hold Down" slots allow for secure clamping of the vice on the machine table
- Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle
- It Can be set to an angle from 0 to 90 degrees on vertical scale, can be rotated in a combination of vertical as well as horizontal axis and swivel base can be rotated along 360 degree
- Angular adjustment is achieved via the angular slide that can be set to any desired angle 45° on either sides. Additionally the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis
- These vices are manufactured from close grained hi tensile seasoned cast iron with fully hardened and ground tool steel jaws
- Ergonomically designed all steel handle allows for stress free operation. It is assembled on the spindle crank with a spring loaded mechanism providing positive grip
- Use of hi tensile grade 10.8 fasteners provides strength and rigidity to these vices
- Relief in clamp seat ensures complete surface contact as against a line contact between the "Hold Down" clamp and movable slide, thereby providing firm locking at any desired by angle
- A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts.
The Angular Machine Vice being used for 45° face milling |
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| SKU | HA.VI.MA.00128 |
|---|---|
| Product Type | Machine Vice |
| Model No | AMV/SP/150 |
| Sizes (mm) | 150 mm |
| Size (Inches) | 6 inch |
| Jaw Depth | 45 mm / 1-3/4 Inch |
| Jaw Opening | 150 mm / 6 Inch |
