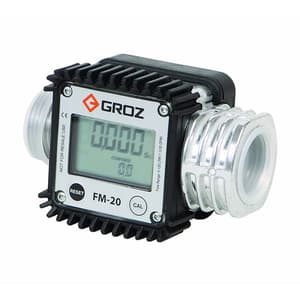

Groz 5 - 120 LPM Heavy Duty Digital Fuel Meter, FM/20/0-1/BSP
Roll over image to zoom zoom_in
- Product Type: Fuel Handling Equipment
- Burst Pressure: 580 PSI
- Least count: 0.001 Units
- Accuracy: ±1%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹21280.12 (Incl. of all taxes)
₹18034+ ₹3246.12 GST (18%)
MRP ₹26521
SAVE 32%
3 Business Days
1 Pcs
8467
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Digital Turbine meter for low viscosity fluids, easy to install in line or for end of the line applications
- Polypropylene Turbine measuring mechanism
- Electronic Display using two AAA 1.5V batteries
- Polyamide body and sealed electronic card make it suitable for use in severe weather conditions
- Display can be rotated in 4 different positions
- Measures in Litres, Quarts, Pints & Gallons
- Do Not Use With Oils
Wetted Components:
- Polyamide
- Polypropylene
- Viton
Recommended Use:
- Diesel,
- Gasoline,
- Bio Diesel,
- Windshield
- Fluid,
- Water
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | HA.LU.FU.00015 |
|---|---|
| Product Type | Fuel Handling Equipment |
| Model No | FM/20/0-1/BSP |
| Type of Product | Fuel Meter |
| Burst Pressure | 580 PSI |
| Pressure Loss | 0.50 PSI |
| Least count | 0.001 Units |
| Repeatability | + / - 0.30% |
| Flow Rate | 5-120 LPM |
| Inlet | 1 Inch BSP (M) |
| Outlet | 1 Inch BSP (F) |
| Accuracy | ±1% |
| Water Resistance | IP55 |
| Working Pressure | 300 PSI |
| Working Temperature | -10°C to 60°C |
| Max. Resettable Batch Total | 99999 units |
| Max. Non Resettable Totalizer | 999999 units |
