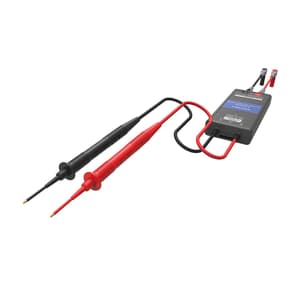

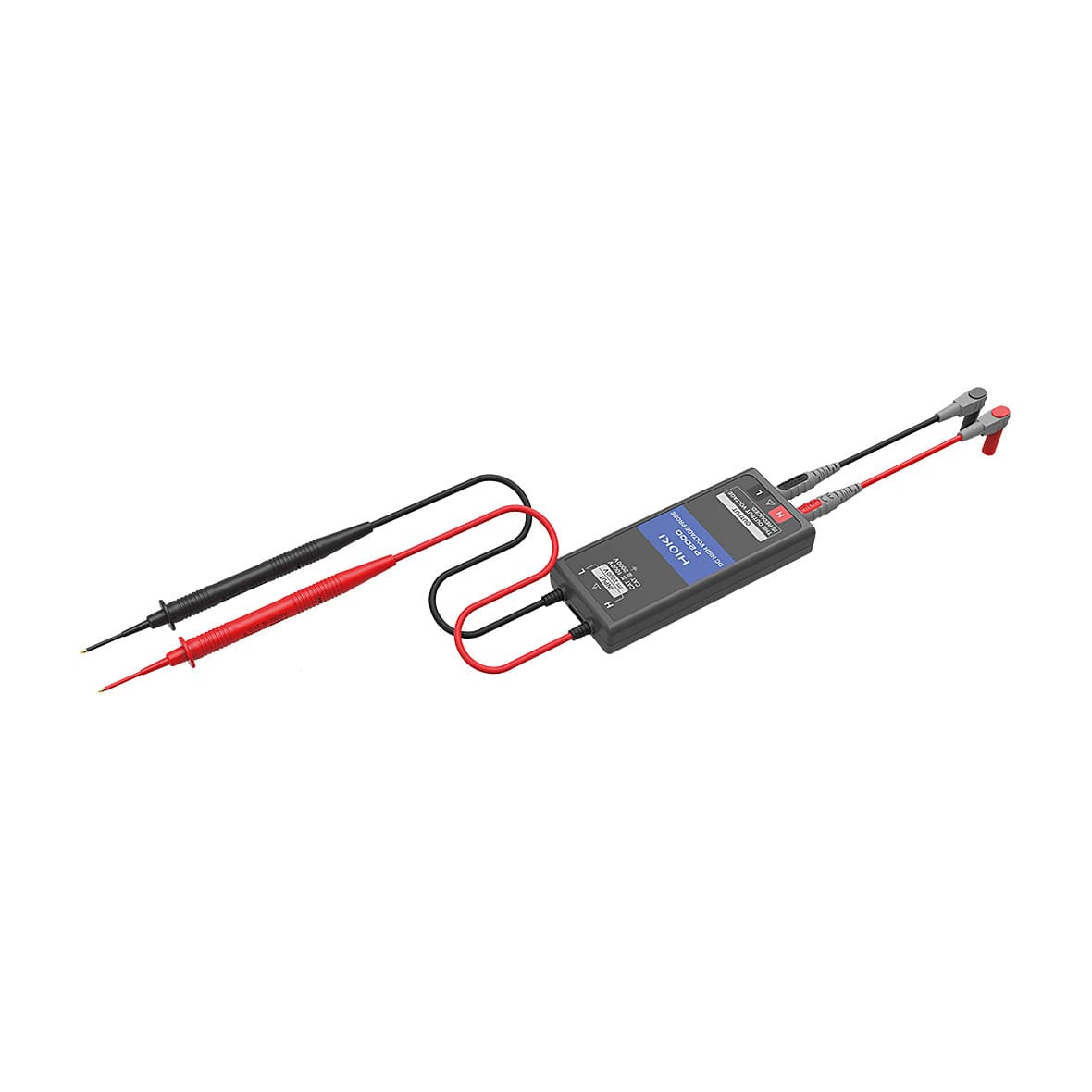

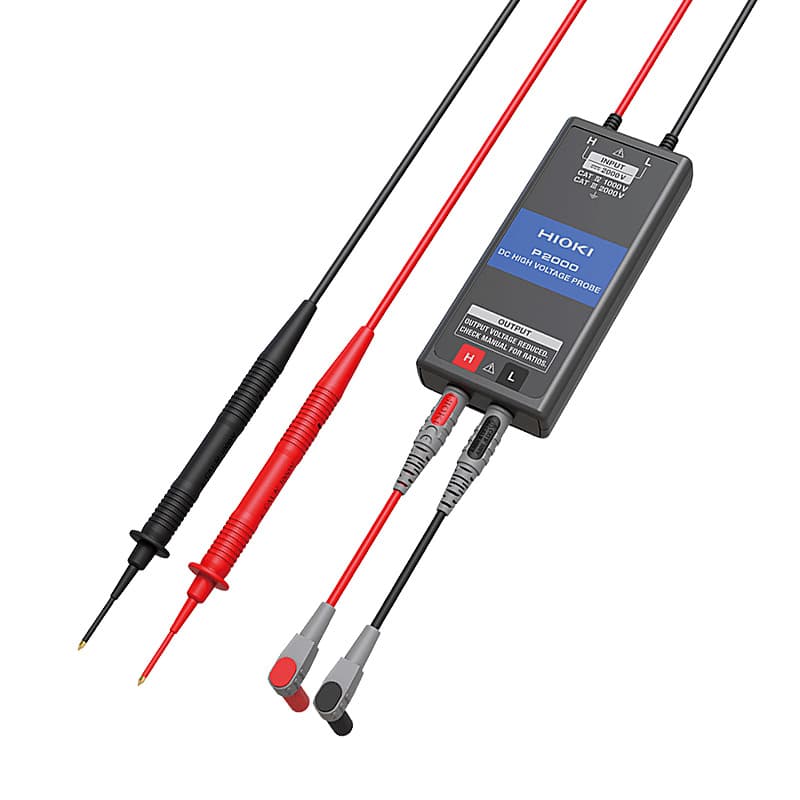

Hioki 2000V High DC Voltage Probe, P2000

Shop all Hioki

SKU: ME.EL.PR.00047

Model: P2000

Roll over image to zoom zoom_in
  1. Hioki 2000V High DC Voltage Probe, P2000
  2. Hioki 2000V High DC Voltage Probe, P2000
  3. Hioki 2000V High DC Voltage Probe, P2000
Video
Visit Hioki Store keyboard_double_arrow_right
  • Product Type: Probes & Accessories
  • Max. input voltage: DC 2000 V
  • Output terminal: 4 mm banana terminal
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹10839.48 (Incl. of all taxes)

₹9186+ ₹1653.48 GST (18%)

MRP ₹11483

SAVE 20%

5 Business Days

1 Pcs

38220090

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The voltage of the solar installations (also known as photovoltaic or PV installations) increases to reduce cost and improve the efficiency of solar equipment. As a result, it is important to select measuring instruments that support higher voltage measurement to protect the safety of inspection workers.

The P2000 enables high voltage measurement up to CAT III 2000 V by simply connecting to a compatible Hioki clamp meter or digital multimeter (DMM).


Key Features:

  • Enables high voltage measurement up to CAT III 2000 V
  • Safely measure solar installations like the mega-solar without interrupting the grid
  • Connects to compatible Hioki clamp meters and digital multimeters (DMMs)


What's Included In This Package:

  • 1x Connection Cable Set L4943
  • 2x Strap with buckle
  • 1x Strap
  • 1x Carrying Case C0205
  • 1x Instruction Manual
  • 1x Operating Precautions


Accuracy Table For Compatible Instruments

ModelCombined accuracy
DT4261Range 600.0 V: Combined accuracy ±0.5% rdg ±0.2 V
Range 2000 V: Combined accuracy ±0.5% rdg ±5 V
CM4141-50
CM4371-50
CM4373-50
CM4375-50		Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V
Range 2000 V: Combined accuracy ±1.0% rdg ±3 V
DT4281
DT4282		Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10)
Range 600.00 V: Combined accuracy ±0.8% rdg ±0.02 V (output rate 1/10)
DT4252
DT4253		Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10)
Range 600.0 V: Combined accuracy ±1.2% rdg ±0.5 V (output rate 1/10)
DT4255
DT4256		Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10)
Range 600.0 V: Combined accuracy ±1.2% rdg ±0.3 V (output rate 1/10)


Why is CAT III 2000 V capability necessary?

Recent years have seen the introduction of solar power systems and EV batteries that operate at progressively higher voltages, creating new maintenance demand. At the same time, the hazards posted by maintenance work are increasing due to use of higher voltages.


Solar installations are CAT III environments

  • Safety standards categorize measurement locations by measurement category ratings CAT II, CAT III, and CAT IV based on their line-to-ground rated voltage, current capacity, and transient overvoltage.
  • According to the standard for Photovoltaic (PV) module safety qualification (IEC 61730-1), PV modules are treated as the overvoltage category III, and an instrument categorized as Measurement Category III is required.

Solar installation voltage is increasing

  • Against this backdrop, measuring instruments used in maintenance of solar installations must accommodate high voltages to ensure they can be used safely. Using instruments that can accommodate the appropriate measurement category serves to protect workers and equipment from serious accidents such as electric shock and burnout.
  • Currently, adoption of 1500 V solar installation is growing, but instruments that can accommodate even higher voltages will be necessary in the future as larger and even more efficient systems enter into use. Hioki developed the P2000 to support CAT III 2000 V measurement in response to the near-term prospect of such applications.

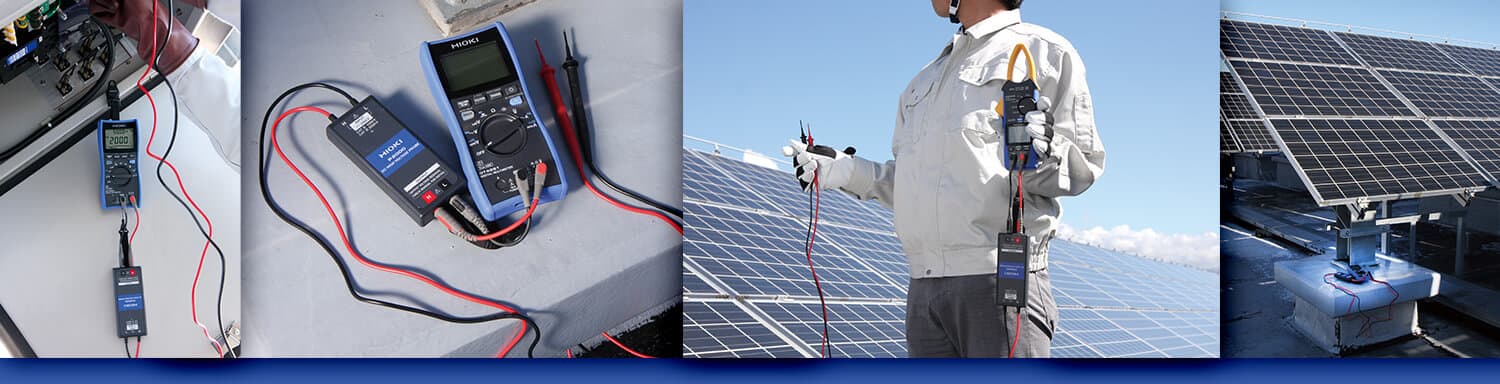

Safer measurements at solar and PV installations

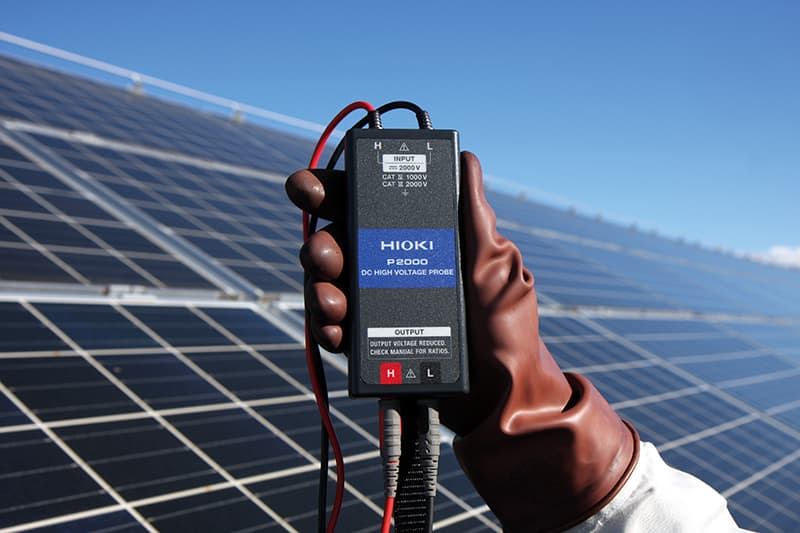

DC High V Probe Mode: High voltages up to 2000 V can be safely measured when the DC High Voltage Probe P2000 is connected to the compatible Hioki clamp meter or digital multimeter (DMM).

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.PR.00047
Product TypeProbes & Accessories
Model NoP2000
Max. input voltage DC 2000 V
Maximum rated line-to-ground voltage 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V
Input resistance 20 MO ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open)
Overload protection 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L)
Output terminal 4 mm banana terminal
Operating Temperature -25°C to 65°C (-13°F to 149°F)
Humidity range -25°C to 40°C (-13°F to 104°F): 80% RH or less (non-condensing) 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing)
Storage temperature and humidity range -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
Standards EN 61010
