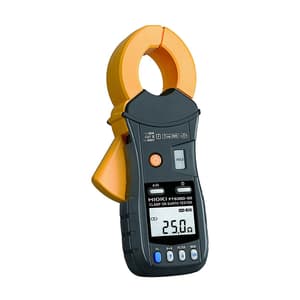

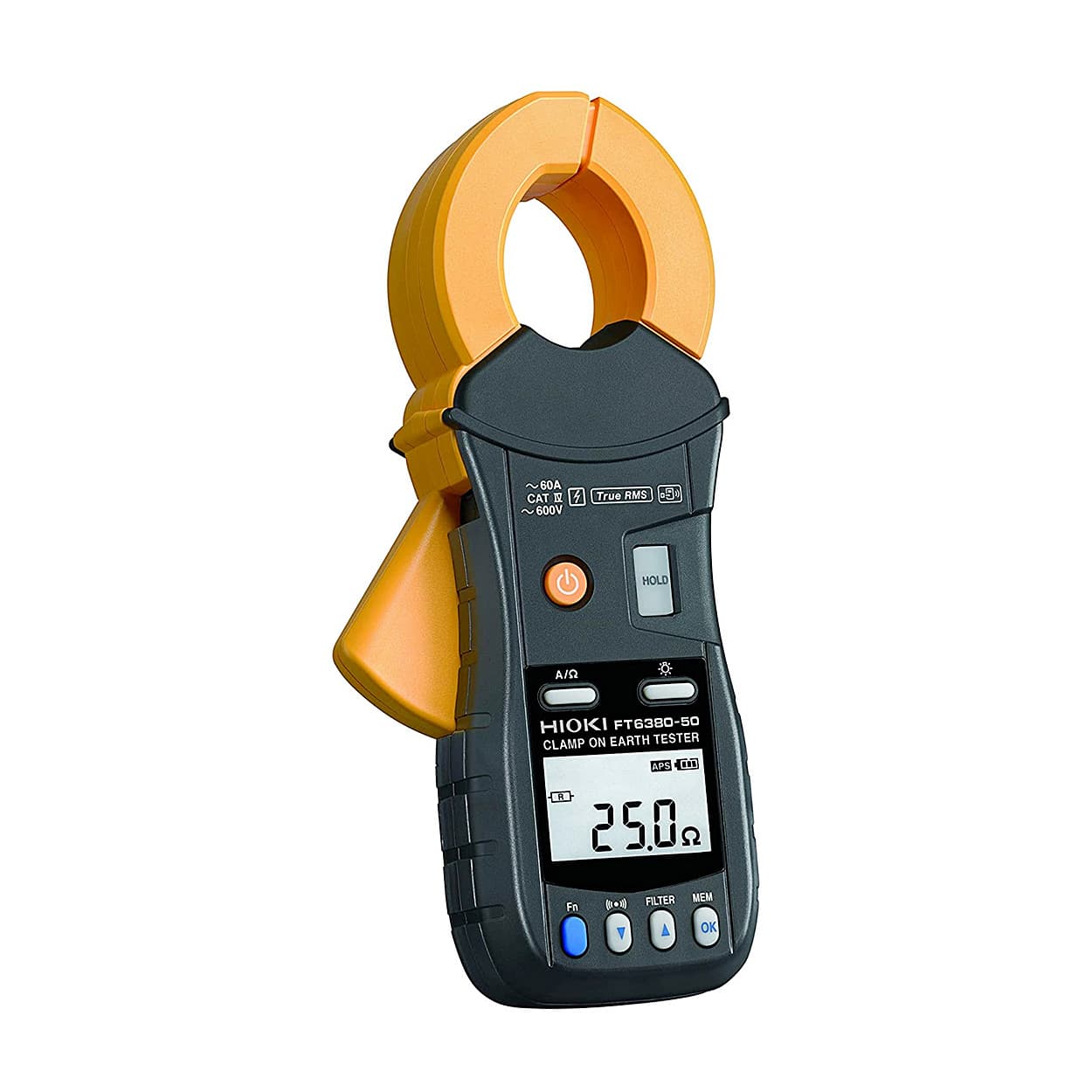

The FT6380-50 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A.

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection. Transmit measured values to your tablet or smartphone.

Easily transfer measurement data to an Excel® file

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

Key Features:

• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
• Earth resistance measurement for multi-grounded systems
• Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
• Measure load current up to 60.0 A range
• Clamp at the narrowest point
• Alarm Function: Set the alarm to audibly and visually notify yourself that the resistance or current value exceeds the threshold.
• High Accuracy and Repeatability: Well-designed magnetic shields eliminate the leakage flux between the two cores that often affect measurement accuracy.

Measurement principle	Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
Earthing resistance range	0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω, Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current range	20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
Continuous operating time	Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed) Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications)



What's Included In This Package:

• 1x Carrying case
• 1x Resistance check loop (1 Ω±2%, 25Ω±1%)
• 1x Strap
• 1x Instruction manual
• 2x LR6 alkaline battery



Earth Tester Multiple grounding can be easily checked with the clamps.

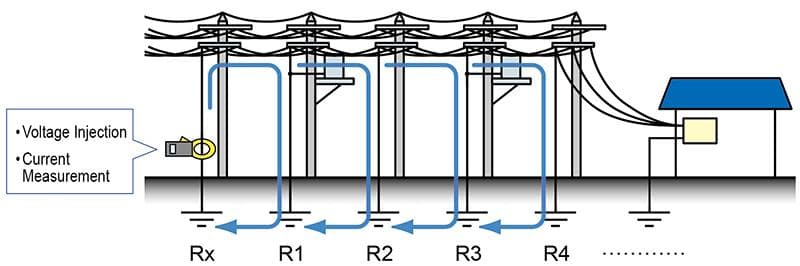

Measure multi-grounded systems Clamp on the earth cable. The instrument has two cores for voltage injection and current measurement. 1. The voltage transducer injects a defined voltage into the multi-grounded system. 2. From the defined voltage and measured current, the total circuit loop resistance is calculated in the following equation. Rx + 1/ [ (1/R1) + (1/R2) + (1/R3) + (1/R4) + ... ] = V/I In a typical multi-grounded system, the parallel resistance value is small enough to be ignored and the equation as referred on the left can be simulated as follows. Rx = V/I

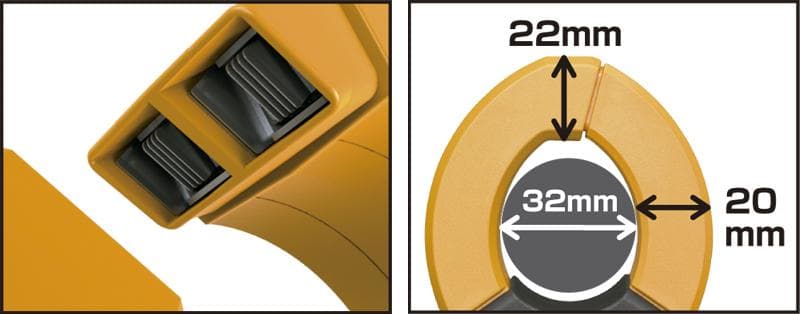

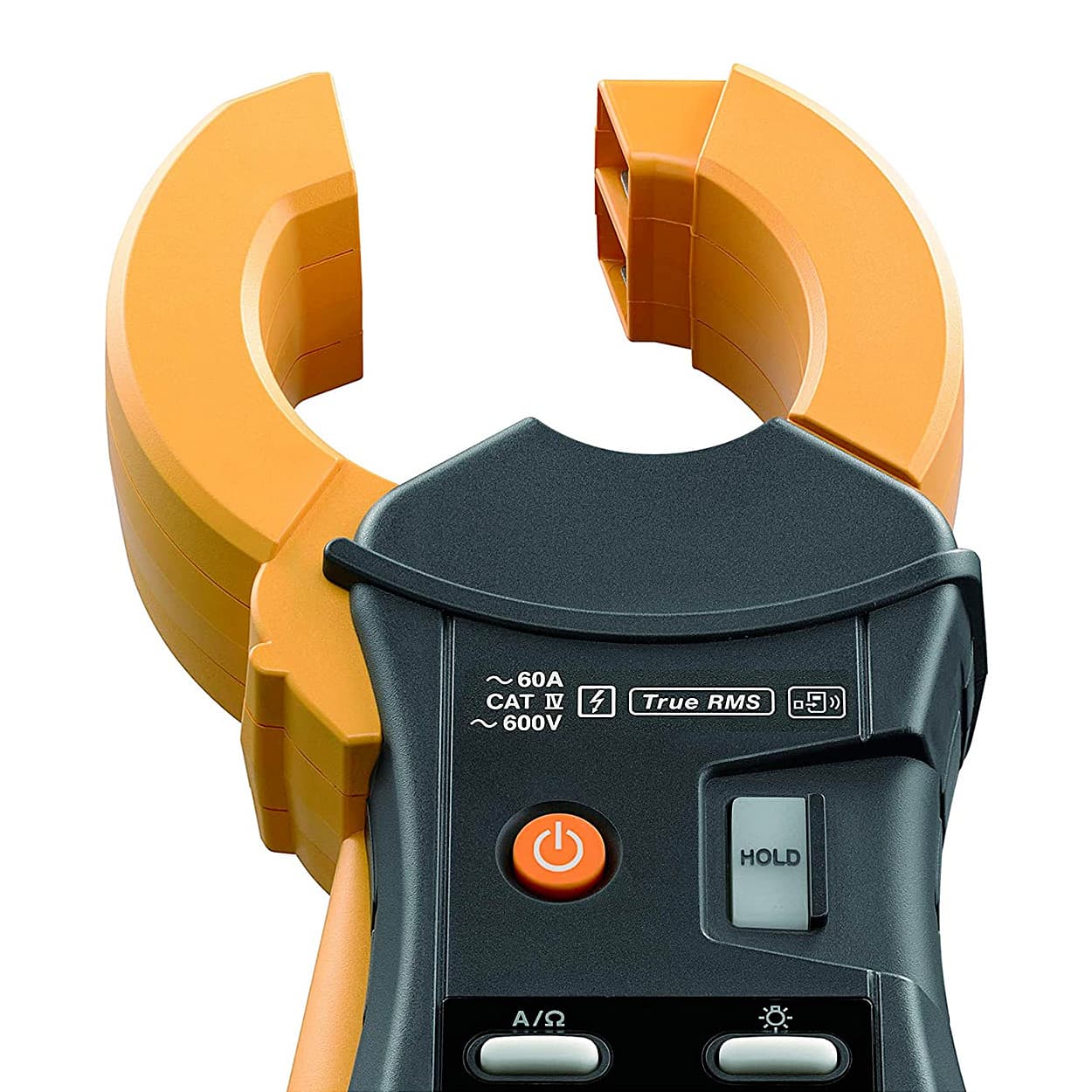

Clamp at the narrowest point! The dramatically slim 0.79 inch (20mm) jaws let you finish your job easily and efficiently.

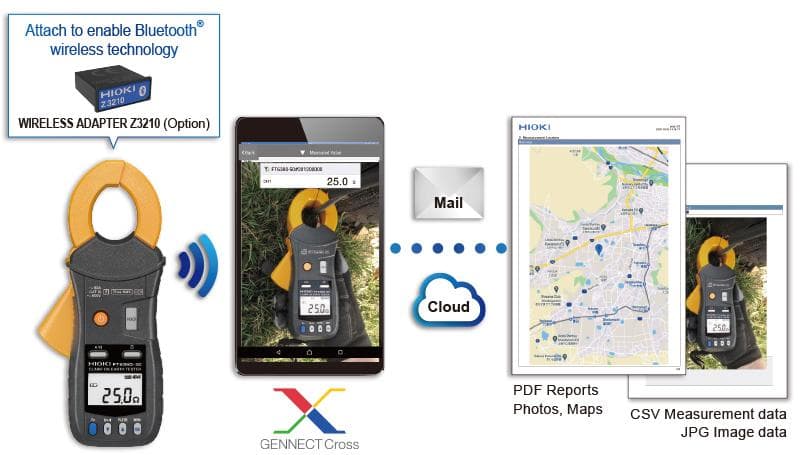

Transfer data via Bluetooth® wireless communication The new FT6380-50 is compatible with the Wireless Adapter Z3210 (optional). When the Z3210 is installed, Bluetooth® wireless communication is enabled. The measurement data can be transferred to the dedicated free application GENNECT Cross or your Excel® files and reports.

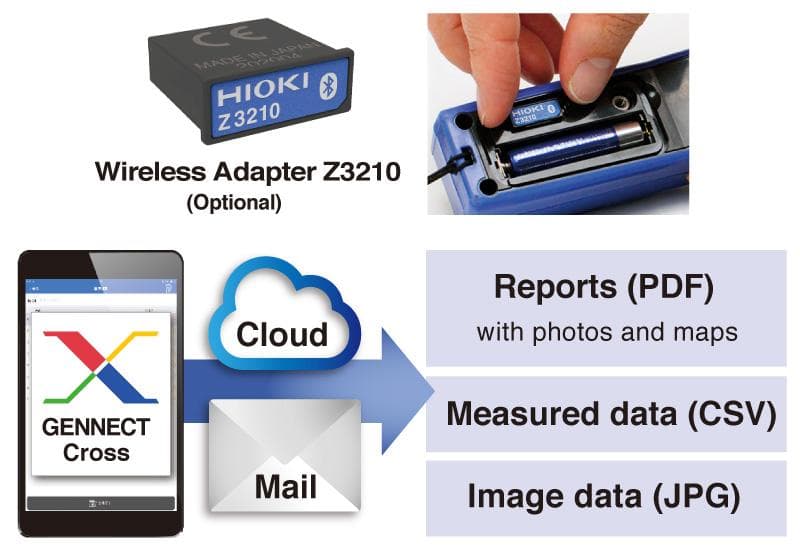

Instantly create reports by a free app (GENNECT Cross) GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports. The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos. In the previous model FT6381, only Android was supported in a separate app, but the new model supports GENNECT Cross, allowing users to create reports together with measurements from other instruments. (Optional Wireless Adapter Z3210 is necessary.)

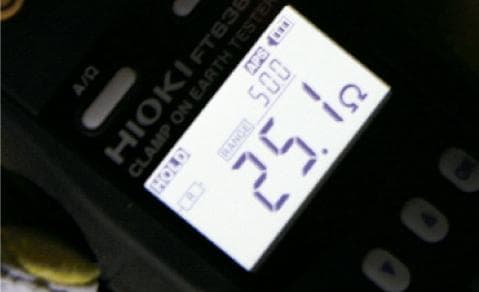

LCD with beautiful back light With the bright back light, you can easily read the measurement value even in dark locations.

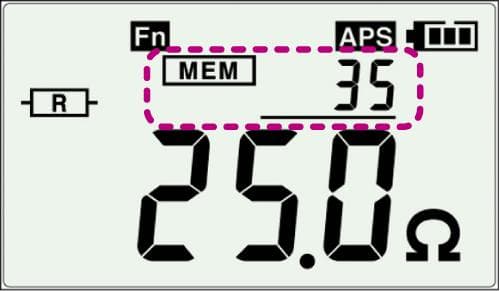

Large storage capacity (up to 2,000 data) You can store up to 2,000 measurement values in the field and recall them in your office later.
