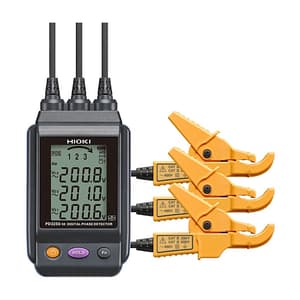

Hioki 600V AC Digital Phase Detector with Three-Phase Voltage Measurement Functionality, PD3259-50

Shop all Hioki

SKU: ME.EL.EL.00072

Model: PD3259-50

Roll over image to zoom zoom_in
  1. Hioki 600V AC Digital Phase Detector with Three-Phase Voltage Measurement Functionality, PD3259-50
Video
Visit Hioki Store keyboard_double_arrow_right
  • Weight: 590 Grams
  • Product Type: Electrical Testers
  • Diameter of Measurable Conductors: Finished Outer Diameter: 6 to 30 mm (0.24 to 1.18 inch)
  • Maximum Rated Voltage to Earth: 600 V AC (CAT IV)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹60353.46 (Incl. of all taxes)

₹51147+ ₹9206.46 GST (18%)

MRP ₹63934

SAVE 20%

5 Business Days

1 Set

9031

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. The PD3259-50 Digital Phase Detector lets you to measure three-phase voltage and detect phase sequence simultaneously by just clipping onto covered cables, ensuring absolutely no contact with metal parts for maximum safety.


Key Features:

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Available to check the unbalance rate and vector diagram in our free app GENNECT Cross
  • World’s first non-metallic contact voltage detection and testing
  • Simply clip onto wire insulation
  • Phase detection check and line-to-line voltage inspection at the same time
  • Easy and intuitive phase detection check with backlight and buzzer
  • Ideal for work certification photos, offering simultaneous display of phase sequence and 3-phase voltage


Detection functions:

  • Positive phase, negative phase (Three-phase 3-wire, Three-phase 4-wire),
  • open phase, prediction of ground phase (Three-phase 3-wire)


Measurement parameters:

Three-phase AC voltage (line-to-line voltage and voltage to ground), Frequency
  • Voltage measurement accuracy: ±2.0% rdg. ±8 dgt.,
  • Frequency measurement accuracy: ±0.5% rdg. ±1 dgt.,
  • Response time: 3 s or less, Display update rate: 500 ms


Measurement targets:

  • Covered cables, Metal portions
  • Use on shielded cables not supported
  • Three-phase 90.0 to 520.0 V AC (45 to 66 Hz)


What's Included In This Package:

  • 4x AA alkaline batteries (LR6)
  • 1x Instruction manual
  • 1x Carrying case C0203
  • Color clip (White ×2, red ×2, blue ×2, yellow ×2),
  • Spiral tubes (black ×1)

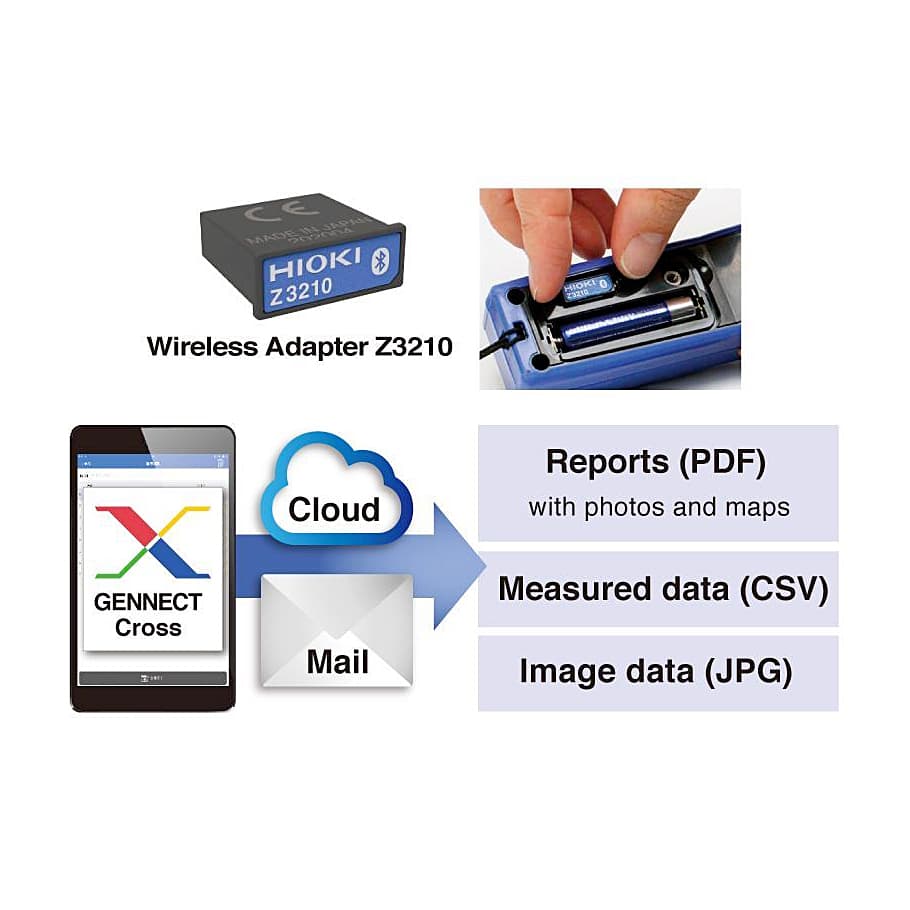

Wireless support Wireless communication capability for even greater convenience than PD3259 (legacy model)

  • Compatible with Wireless Adapter Z3210.
  • When the wireless adapter Z3210 is attached to the instrument, you can use Bluetooth® wireless communication.
  • By using the free app GENNECT Cross, you can check the measurement value, manage the data and create the report on smartphones and tablets easily.

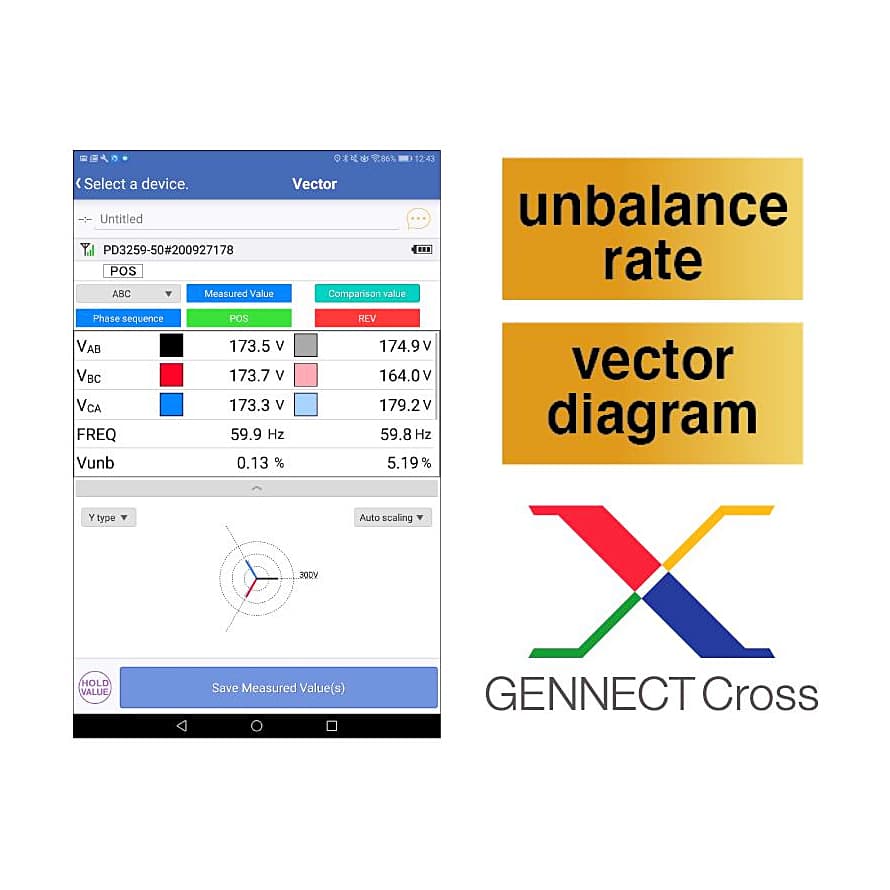

Instantly create reports by a free app (GENNECT Cross)

  • GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
  • The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.
  • Can also check the unbalance rate and vector diagram from the measurement data of PD3259-50. (Wireless Adapter Z3210 is necessary)

Easily transfer measurement data to an Excel® file: Excel® Direct Input Function

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

How to Use the Hioki Digital Phase Detector PD3259-50

In the past, four steps have been necessary in order to check a 3-phase power circuit: one set of measurements to check the phases with a phase detector, and three line-voltage measurements (one for each phase) made with a tester. The Digital Phase Detector PD3259-50 replaces this process with a single, no-metal-contact measurement step that can be made simply by affixing three clamp sensors. The instrument quickly displays the phase detection results and three phase voltage values.

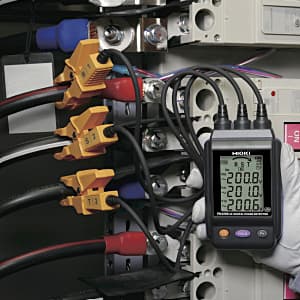

Just clip the wire

The measurement can be taken simply by cliping the wire.

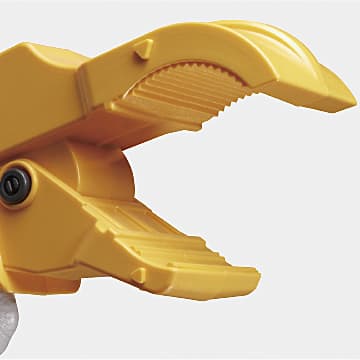

Safe measurement without contact with metal

  • There is no metal exposure on the sensor.
  • You can measure safely without touching metal.

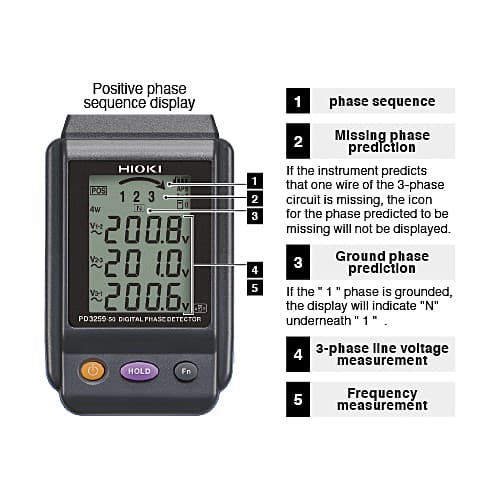

Display on a large screen

Phase detection check and line-to-line voltage inspection at the same time.

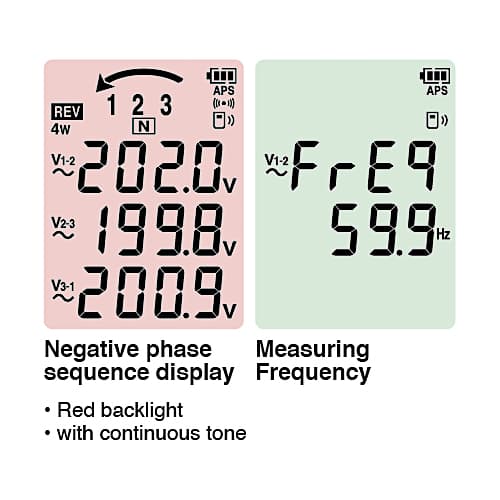

Light and sound notification

  • A red light and a continuous buzzer sounds to indicate the Negative phase.
  • You can switch screens and check the frequency.

Place the instrument to the wall

The Magnetic Strap Z5020 (optional) can be used to hang and fix the instrument to the wall.

Color clips are included to help identify the code


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.EL.00072
Product TypeElectrical Testers
Model NoPD3259-50
Diameter of Measurable Conductors Finished Outer Diameter: 6 to 30 mm (0.24 to 1.18 inch)
Maximum Rated Voltage to Earth 600 V AC (CAT IV)
Environmental Protection Main unit (Excluding Voltage Sensors): IP54 (EN60529) Dustproof & Waterproof
Other Functions Hold function, Backlight, Buzzer, Auto power-off, Low battery warning, Drop proof (on concrete, 1 m/ 1 time)
Power Supply 4x AA alkaline batteries (LR6) Maximum rated power: 3 VA, Continuous operating time: 5 hours (Backlight off, standby state, Without Z3210)
Dimensions (WxHxD) 84 x 146 x 46 mm (3.31 x 5.75 x 1.81 inch)
