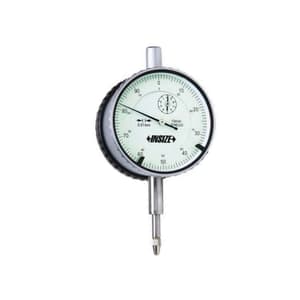

Insize 0 - 10 mm Double Face Dial Indicator, 2328-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Range (mm): 0 - 10 mm
- Graduation: 0.01 mm
- Accuracy: 17μm
- Hysteresis: 3μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,926 (Incl. of all taxes)
₹6,717 + ₹1,209 GST (18%)
MRP was MRP ₹9,460
Save 29%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Meet DIN878

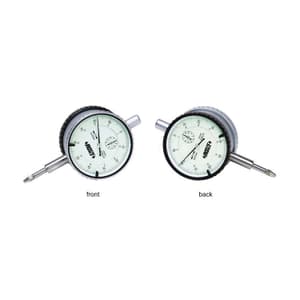

- Read from both sides
- Jeweled bearing
- Supplied with limit pointers
- Optional accessory: contact points
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 10 mm |
|---|---|
| Type of Product | Dial Indicator |
| Graduation | 0.01 mm |
| Accuracy | 17μm |
| Hysteresis | 3μm |
| Range / rev | 1mm |
| Dial reading | 0 - 100 |
| Includes | with manufacture inspection certificate |
