Insize 0 - 12.7 mm / 0.5 inch Digital Indicator with Flat Back, 2503-101F
Roll over the image to zoom in
Key Features
- Product Type: Digital Indicators
- Range (mm): 0 - 12.7 mm
- Range (Inches): 0 - 0.5 inch
- Resolution: 0.001 mm / 0.00005 inch
- Accuracy: 3μm
- Hysteresis: 2μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,857 (Incl. of all taxes)
₹9,201 + ₹1,656 GST (18%)
MRP was MRP ₹13,335
Save 31%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

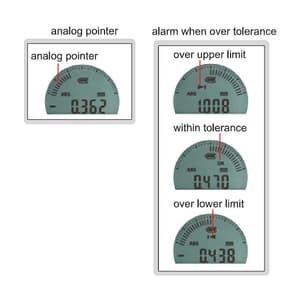

- Reading in digital and analog

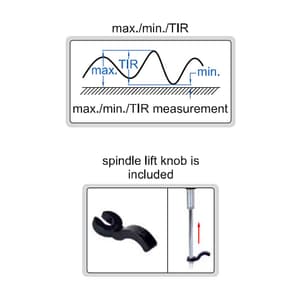

- Button function: on/off, zero, data preset, tolerance Go and No-Go display, inch/metric conversion, measuring direction change, max./min./TlR measurement, absolute/incremental measurement
- Automatic power off (time is adjustable)
- Keep preset data and tolerance data in memory after restart
- Real-time data output (text format, virtual com port)
- Power: rechargeable Li-battery
- Optional accessory: contact points
- Attention: Rechargeable battery, for 500 hours continuous working
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 12.7 mm |
|---|---|
| Range (Inches) | 0 - 0.5 inch |
| Type of Product | Digimatic Indicator |
| Resolution | 0.001 mm / 0.00005 inch |
| Accuracy | 3μm |
| Hysteresis | 2μm |
| Max. Measuring Force | 1.5N |
| Cap | Cannot Lift |
| Remark | Flat Back |
