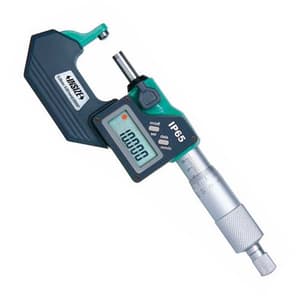

Insize 0 - 25 mm Digital Spherical Anvil Tube Micrometer (Type B), 3560-25SA
Roll over the image to zoom in
Key Features
- Product Type: Tube Micrometer
- Range (mm): 0 - 25 mm
- Range (Inches): 0 - 1 inch
- Type: B
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,312 (Incl. of all taxes)
₹12,129 + ₹2,183 GST (18%)
MRP was MRP ₹17,083
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data Output & IP65 Waterproof

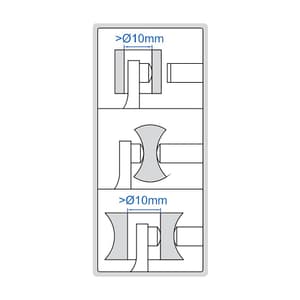

- Measure wall thickness of tubes

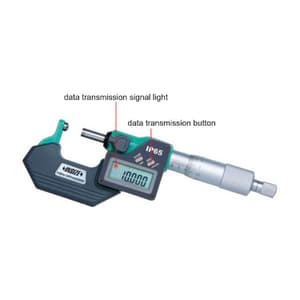

- Button function: on/off, set, mm/inch, data transmit
- Automatic power off
- Ratchet stop
- Carbide measuring faces
- With data interface (optional data output cable: code 7315-31 receiver is needed, 7302-31)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

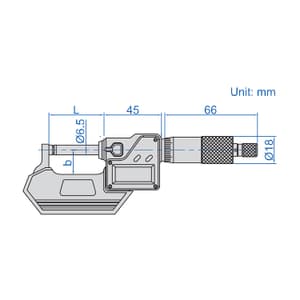

Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Range (Inches) | 0 - 1 inch |
| Accuracy | 4μm |
| Type | B |
| Resolution | 0.001 mm / 0.00005 inch |
| Length (mm) | 32 mm |
| Breadth (mm) | 24 mm |
| Spindle Tip Type | Spherical Spindle Tip |
| Power Supply | 1x Battery (CR2032) |
