Insize 0 - 25 mm High Precision Digital Micrometer with Data Interface, 3359-25
Roll over the image to zoom in
Key Features
- Product Type: Electronic Micrometer
- Range (mm): 0 - 25 mm
- Range (Inches): 0 - 1 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹42,756 (Incl. of all taxes)
₹36,234 + ₹6,522 GST (18%)
MRP was MRP ₹51,763
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- IP65 Waterproof / Data Output / Non-Rotating Spindle
- Absolute encoder, the original data remains after power off
- One turn of sleeve makes 10mm spindle feed
- Measurement accuracy is not affected by the use of sleeve

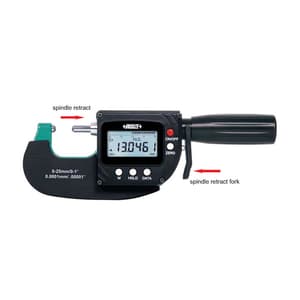

- Press the fork, the spindle retracts 3mm
- Carbide spindle and anvil

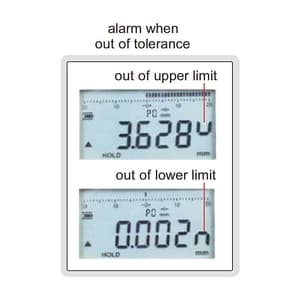

- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch
- Power: rechargeable battery, for 24 hours continuous working
- Supplied with manufacturer inspection certificate
With data interface:
- Optional accessory: Wireless Transmitter, (Code 7315-3350) / Data output cable (kevboard format) (code 7302-3350)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Range (Inches) | 0 - 1 inch |

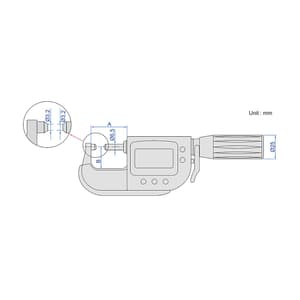

| A (mm) | 38 mm |
| B (mm) | 24 mm |
| Accuracy | ±0.5μm |
| Repeatability | 0.3μm |
| Measuring Faces (Flatness) | 0.3μm |
| Measuring Faces (Parallelism) | 0.6μm |
| Measuring Force | 5 - 10N |
| Resolution | 0.0001 mm / .00001 inch |
