• Low height, good linearity, easy installation, high resistance to partial load and lateral force
• Application fields: universal material testing machines, hopper scales, vehicle scales, rail scales, packaging scales, belt scales and other tension and pressure testing instruments, as well as in the field of automation and test equipment
• If one indicator is used for multiple sensors

Cable Specification:

• <1T: Ø5.5 mm x 3 mtr
• 1T - 30T: Ø5.5 mm x 5 mtr
• >30T: Ø6.5 mm x 5 mtr

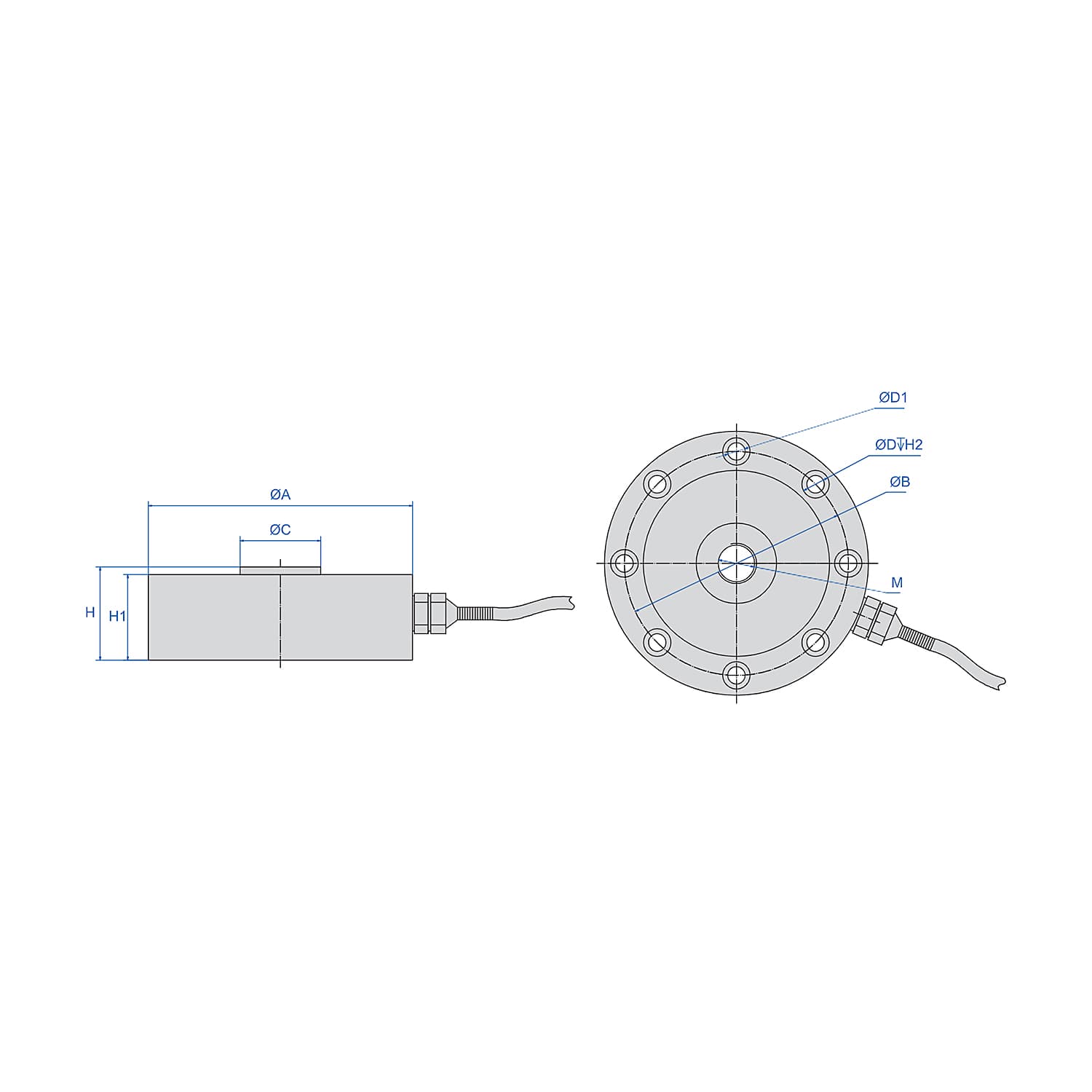

Dimension Measurement:

A: 280 mm C: 136 mm H: 90 mm M: M76 x 3 mm B: 230 mm D1: 16 x Ø17 mm D: 16 x Ø26 mm H2: 20 mm
