Insize 1400 - 2000 mm Outside Diameter Variation Measuring Instrument, 2715-2000
Roll over the image to zoom in
Key Features
- Product Type: Outside Dia. Measuring Instruments
- Weight: 18.5 kg
- Range (mm): 1400 - 2000 mm
- Range (inches): 56 - 80 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,30,185 (Incl. of all taxes)
₹7,88,292 + ₹1,41,893 GST (18%)
Out of Stock
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Digital/Dial Indicators in not Included.

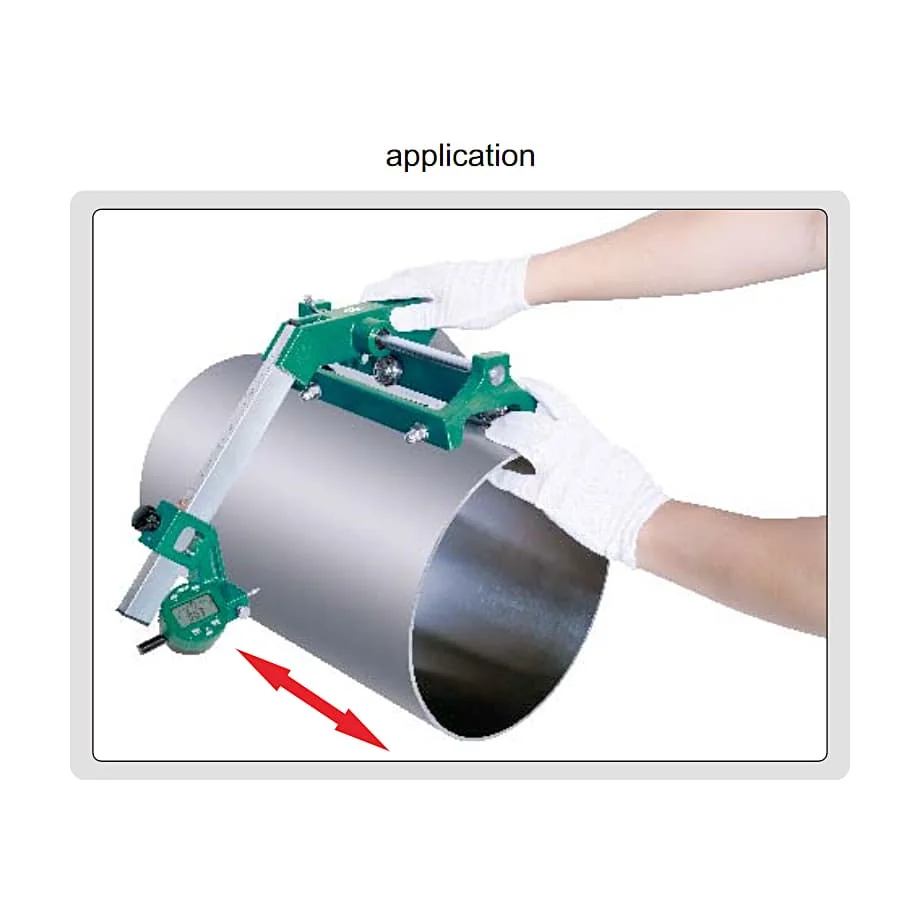

- Measurement of diameter variation, convexity, concavity, taper and other parameters
- Continuous measurement in the axis direction

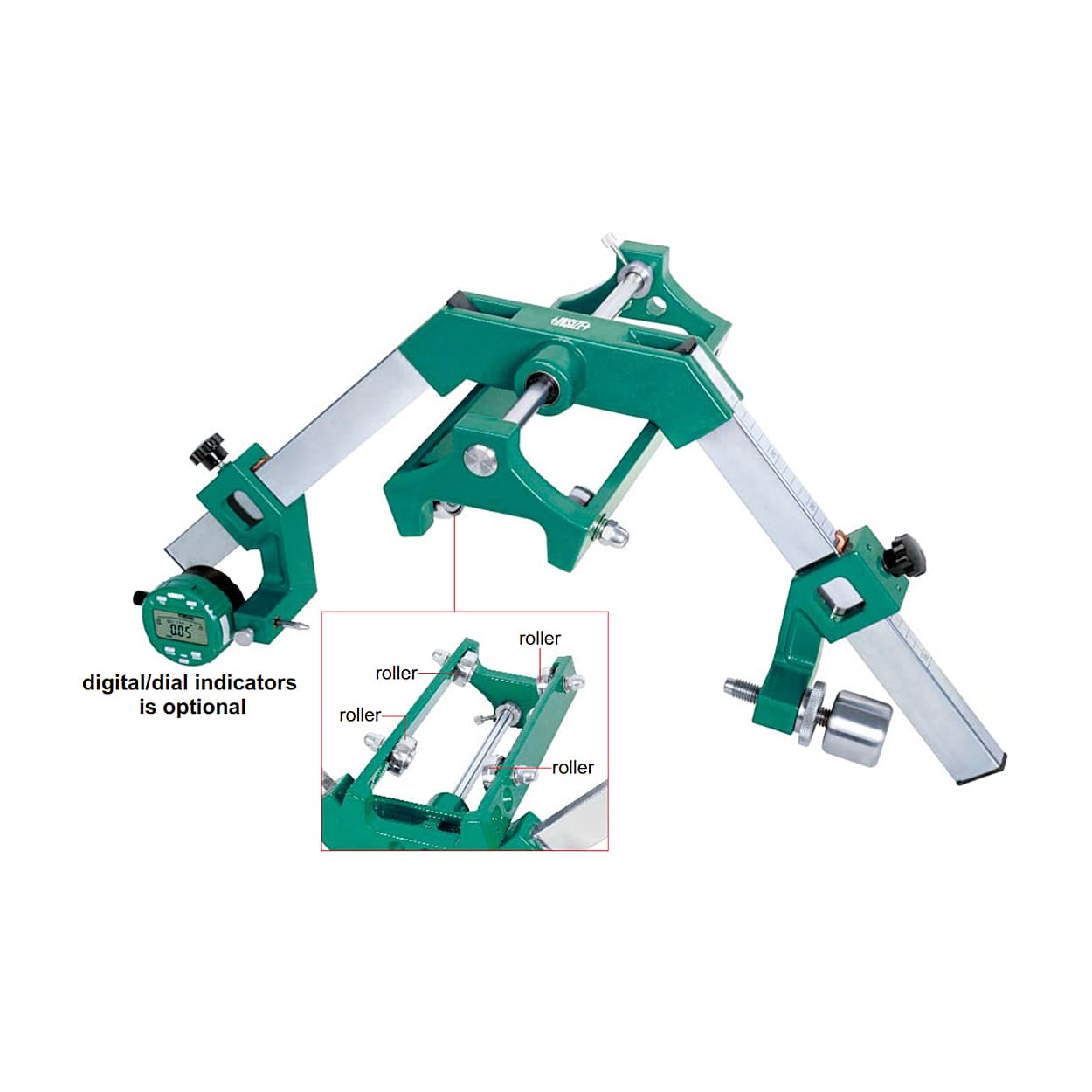

- Four rollers are included
- Optional accessory: 0.01mm or 0.001mm graduation digital/dial indicators
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 1400 - 2000 mm |
|---|---|
| Range (inches) | 56 - 80 inch |

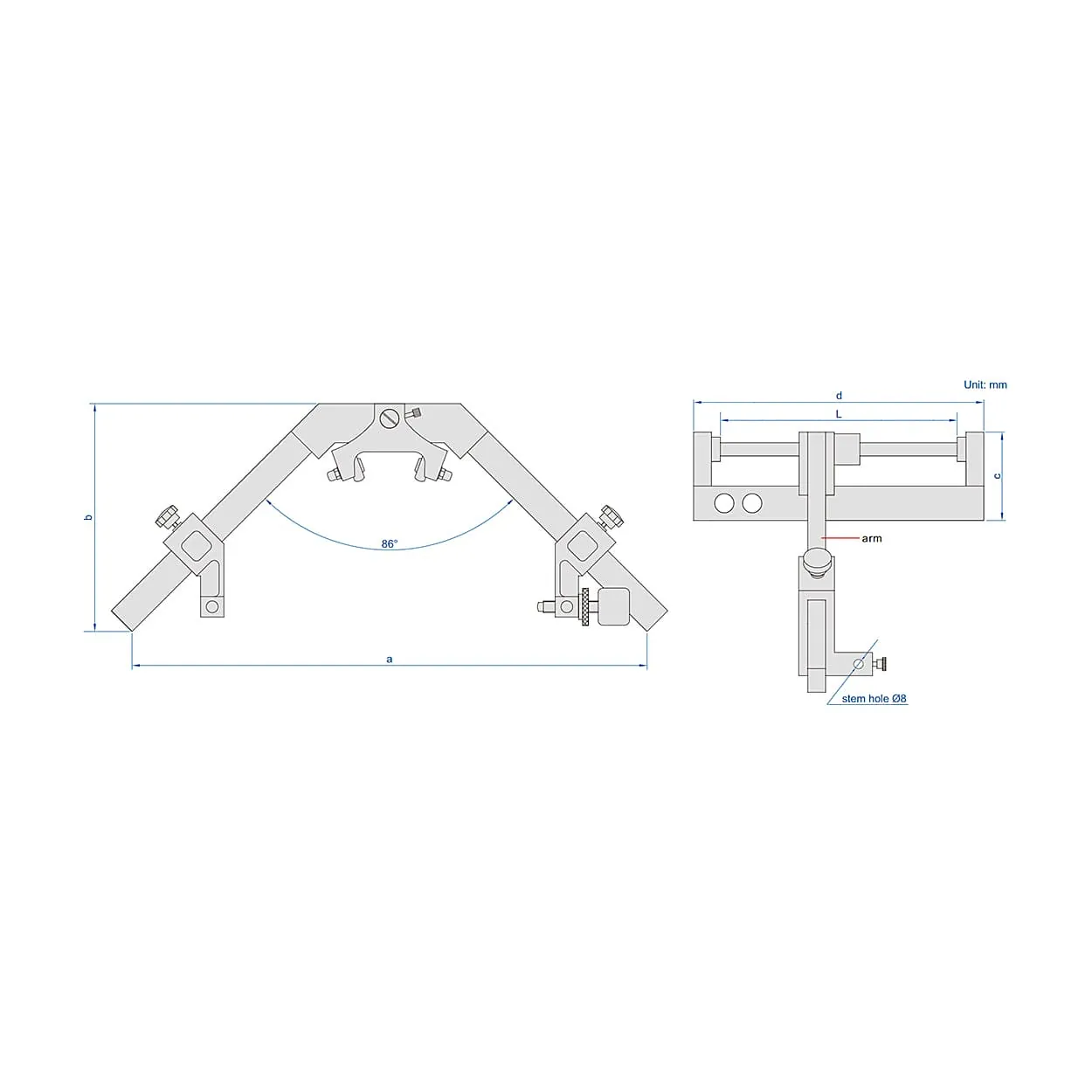

| A (mm) | 2156 mm |
| B (mm) | 860 mm |
| C (mm) | 210 mm |
| D (mm) | 350 mm |
| Accuracy | 0.02 mm |
| Repeatability | 6μm |
| Arm Moving Range (L) | 232 mm |
