• IP68 Waterproof

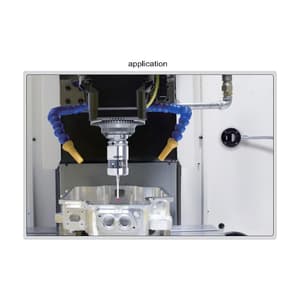

• On-machine measurement of all kinds of small and medium-sized machining centers, CNC boring, milling machines and five-axis CNC machine tools
• Automatically set the workpiece coordinate and machining reference point before CNC machining process
• Automatically measure dimension and position coordinate during CNC machining
• Measure dimension, shape and position after CNC machining is completed
• Four kinds of SSR signals such as probe status, error, low voltage and pulse are transmitted to CNC machine tools
• M code is used to control on or off of probes
• Infrared transmission, strong anti-interference
• Infrared transmission/reception range: 5m
• Supplied with automatic measurement software
• Optional accessory: styli

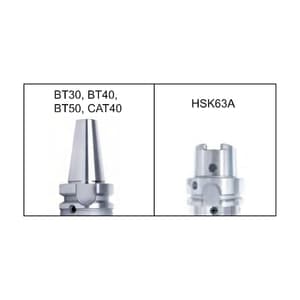

• SK and ISO spindle probes also can be customized

Automatic Measurement Software (Included):

• Styli automatic calibration
• Protection of stylus during probe movement (avoid collision)

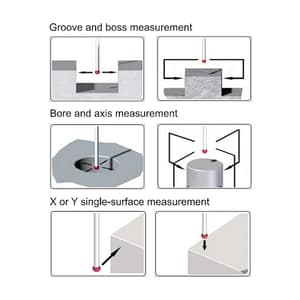

• Groove and boss measurement
• Bore and axis measurement
• X or Y single-surface measurement

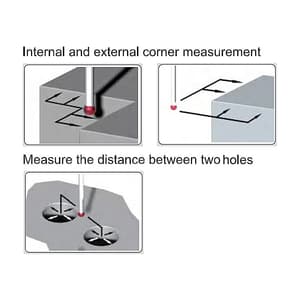

• Internal and external corner measurement
• 4th axis measurement
• Angle on X and Y plane measurement
• Three points measurement of arc
• Measure the distance between two holes
