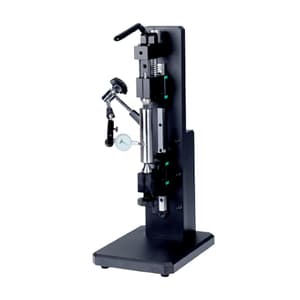

Insize 170 mm Vertical Bench Center, 4743-171
Roll over the image to zoom in
Key Features
- Product Type: Bench Center
- Weight: 11.4 kg
- Runout Accuracy: 2μm
- Center Height (H): 60 mm

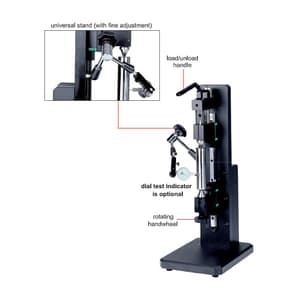

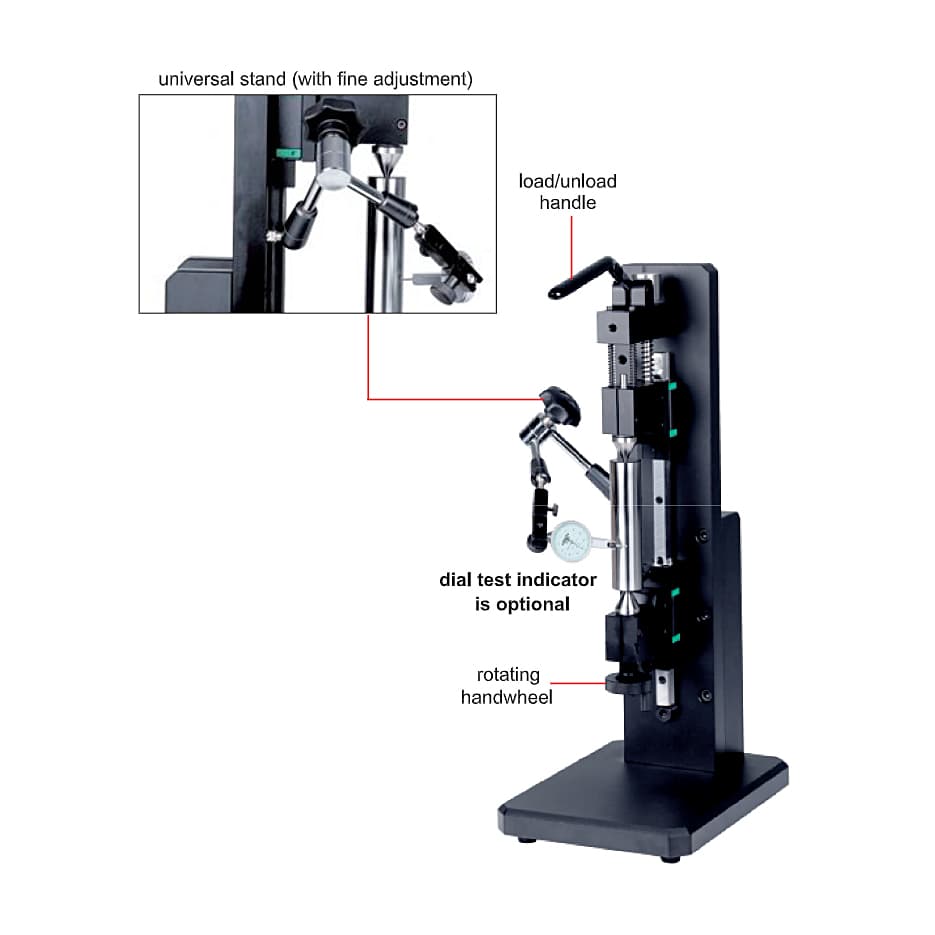

- Remark: Universal Stand & Convenient Operation
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,79,335 (Incl. of all taxes)
₹1,51,979 + ₹27,356 GST (18%)
MRP was MRP ₹2,20,260
Save 31%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Quick positioning, suitable for mass measurement
- Suitable for cylinders with outside diameter Ø3-120 mm or inside diameter Ø1-25 mm
- Fixed/universal stand can be optionally installed on request, up to 2
- Optional accessory: dial test indicators (code 2880-02, 2880-02R, 2897-02, 2380-02C, 2381-02C, 2381-021C), fixed stand, universal stand.
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

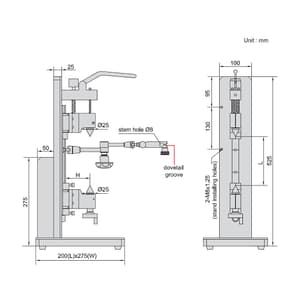

Specifications
| Runout Accuracy | 2μm |
|---|---|
| Center Height (H) | 60 mm |
| Distance between two centers | 170 mm |
| Load Capacity | 20 Kg |
| Remark | Universal Stand & Convenient Operation |
