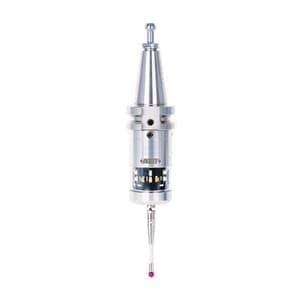

Insize 180 mm Optical Transmission Probe For CNC Machine Tool, 9407-3
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Length (mm): 180 mm
- Diameter (mm): 40 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,13,262 (Incl. of all taxes)
₹2,65,476 + ₹47,786 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- IP68 Waterproof
- On-machine measurement
- Multi-channel transmission between probes and receivers, for anti-interference
- Transmit three kinds of signals: trigger, contact and low battery voltage
- With spindle protection function
- Optical transmission range: 1m, 3m, 5m
- Automatic power off in 3 seconds, move styli to power on
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications

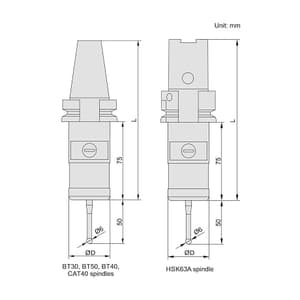

| Length (mm) | 180 mm |
|---|---|
| Diameter (mm) | 40 mm |

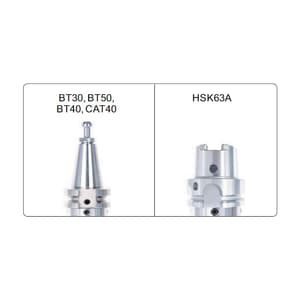

| Applicable Spindle | BT40 |
| Trigger Accuracy of Styli in Any Direction | 1μm |
| Protection stroke triggered by styli in all directions | 12.5° (X and Y Axis Stroke), 5 mm (Z Axis Stroke) |
| Trigger Force of Styli in All Directions | 0.9N (X and Y Axis), 6N (Z Axis) |
| IP Protection | IP68 (Dust/Waterproof) |
| Power Supply | 2x LS14250 Lithium Battery |
