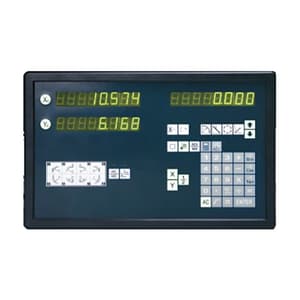

Insize 2-Axis Digital Readout System, ISL-DR2
Roll over image to zoom zoom_in
- Weight: 1.45 Kg
- Product Type: Digital Readout System
- Application: Two-Axis
- Scale input ports: 2
- Power Supply: 110/220V, 50/60Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹17842.78 (Incl. of all taxes)
₹15121+ ₹2721.78 GST (18%)
MRP ₹23263
SAVE 35%
3 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- For ISL-A1, ISL-A5, ISL-B1, ISL-B5, ISL-C1, ISL-C5 series linear scales.

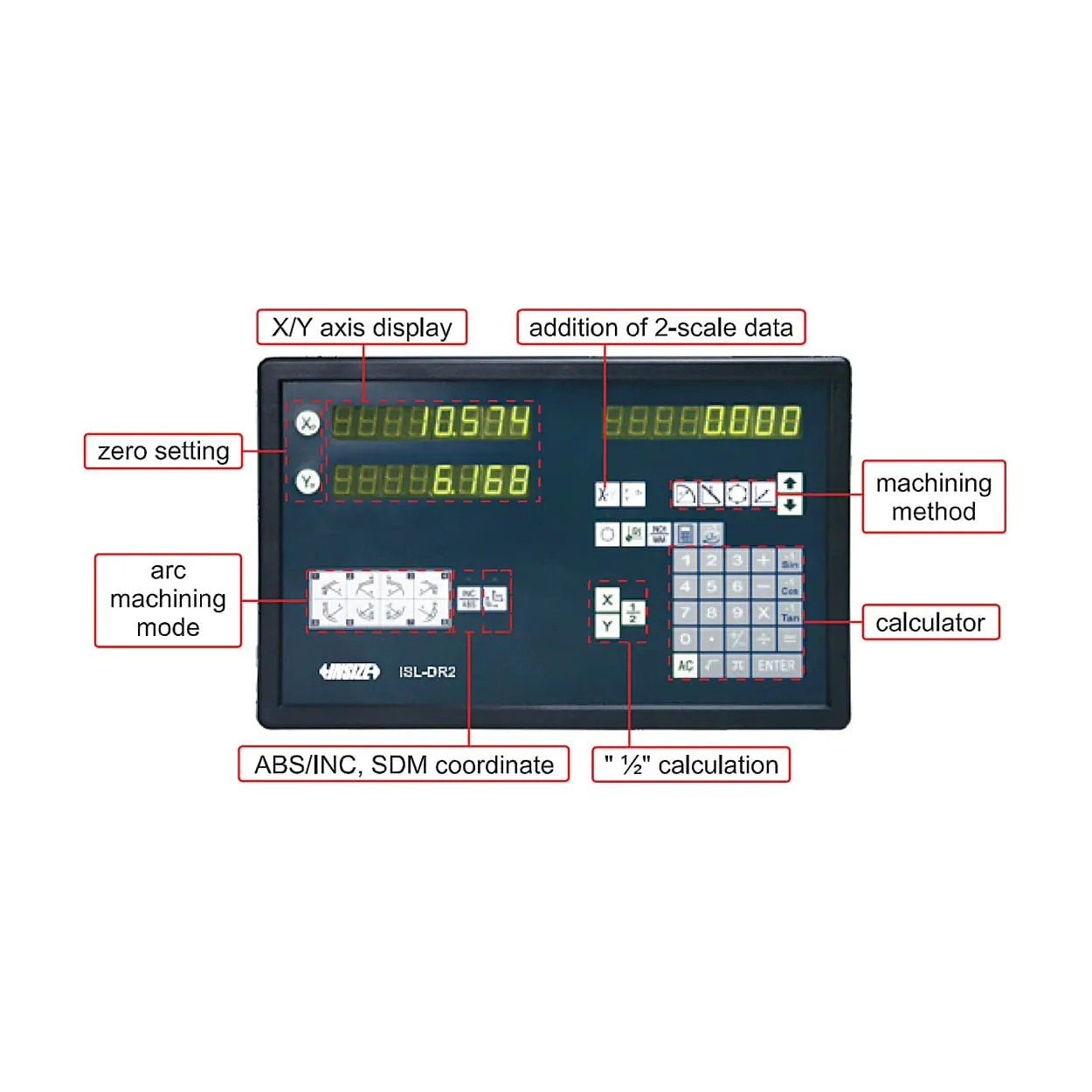

- Functions: Addition of 2-scale data, linearity error compensation, smoothing, RS232C interface unit, BCD code out, zero setting, preset, resolution setting, counting direction setting, inch/mm conversion, ABS/INC conversion, expansion/contraction coefficient setting, "½" calculation, detecting RI, bolt-hole circle machining, ramp circle machining.

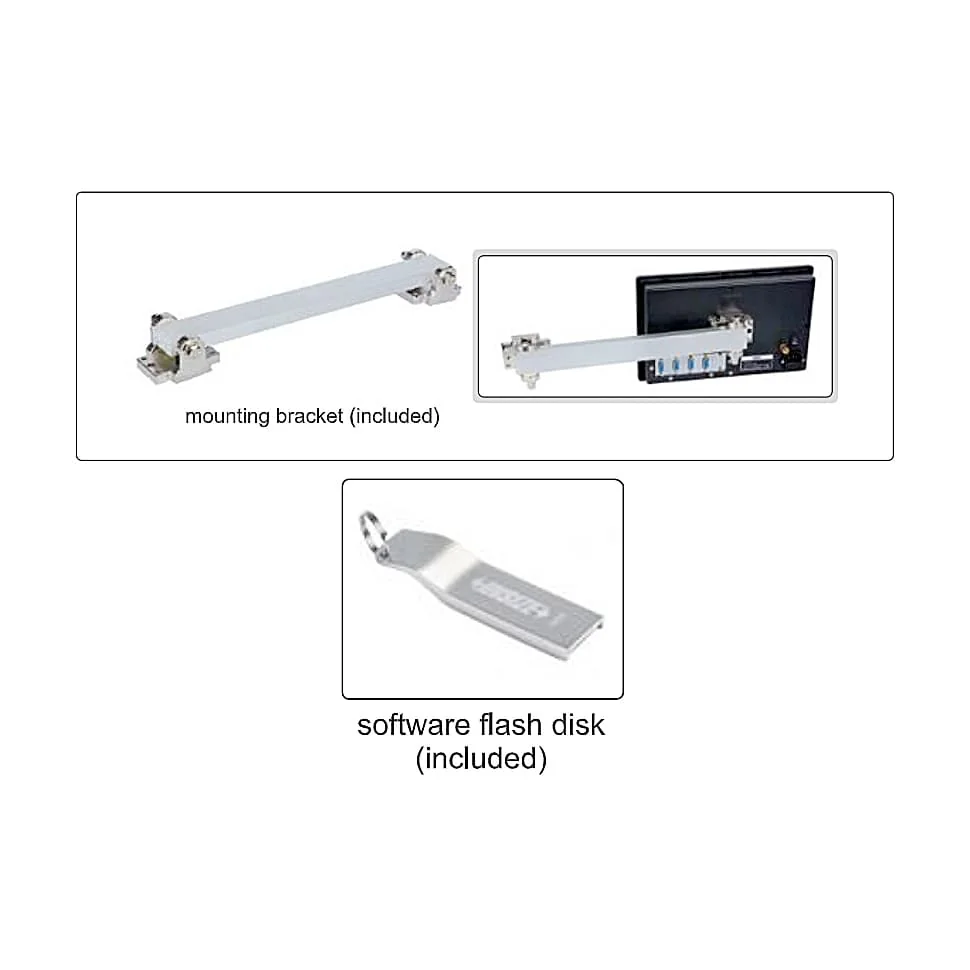

What's Included in this Package:
| Main Unit | 1 pc |
| Mounting Bracket | 1 pc |
| Ground Cable | 1 pc |
| RS232C Cable | 1 pc |
| Software Flash Disk for RS232C | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.DI.00316 |
|---|---|
| Product Type | Digital Readout System |
| Model No | ISL-DR2 |
| Application | Two-Axis |
| Scale input ports | 2 |
| Resolution | 0.05µm, 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µm |
| Power Supply | 110/220V, 50/60Hz |
| Dimensions | 295 x 185 x 45 mm |
