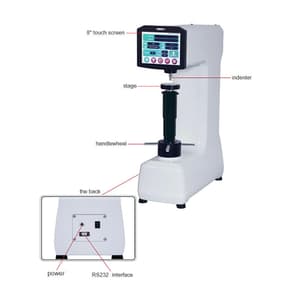

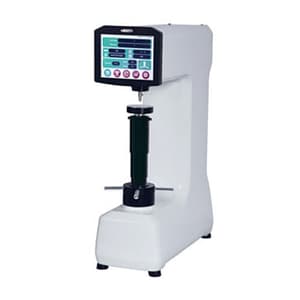

Insize 20 - 88 HRA Motorized Digital Rockwell Hardness Tester (Built-in Bluetooth), HDT-RT151
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 70 kg
- Type: Rockwell
- Measurement Range: 20 - 88 (HRA) / 20 - 100 (HRB) / 20 - 70 HRC
- Preliminary Test Force: 98N/10Kgf for Rockwell
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,25,028 (Incl. of all taxes)
₹1,90,702 + ₹34,326 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Electronic loading test force, high accuracy of force value, and stable measurement value

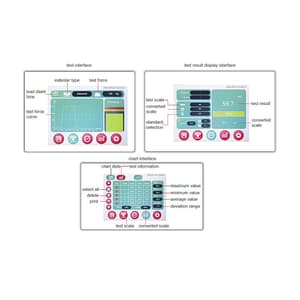

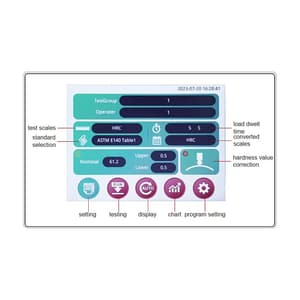

- Touch screen operation and display, simple operation interface
- Built-in Bluetooth
- Force loading by electric motor (Without Weights)
- 15 types of Rockwell hardness scales can be tested
- Convertible to various hardness standards such as HB and HV
- 500 sets of storage
- With correction function, the hardness value can be corrected based on the size of the cylinders
- According to ISO 6508
- Hardness Scale (With Indenter Included): HRA, HRB, HRC, HRD, HRF. HRG
- Hardness Scale (With Optional Indenter): HRE, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
- Test Force: 588N (60Kg), 980N (100Kg), 1471N (150Kg)

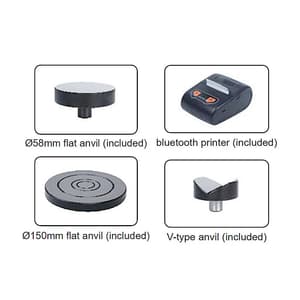

What's Included in this Package:
| Main Unit | 1 pc |
| Diamond Indenter | 1 pc |
| Ø1.5875 mm Carbide Ball Indenter | 1 pc |
| Ø150 mm Flat Anvil | 1 pc |
| Ø58 mm Flat Anvil | 1 pc |
| V-type Anvil | 1 pc |
| Hardness Test Block HRC 20 - 30 | 1 pc |
| Hardness Test Block HRC 40 - 50 | 1 pc |
| Hardness Test Block HRC 60 - 70 | 1 pc |
| Hardness Test Block HRBW 80 - 100 | 1 pc |
| Hardness Test Block HRA 80 - 90 | 1 pc |
| Bluetooth Printer | 1 pc |
| Anti-dust Cover | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type | Rockwell |
|---|---|
| Measurement Range | 20 - 88 (HRA) / 20 - 100 (HRB) / 20 - 70 HRC |
| Preliminary Test Force | 98N/10Kgf for Rockwell |
| Stage Elevation | Manual |
| Load Control | Automatic (load/dwell/unload) |
| Load Dwell Time | 2 - 60 Second |
| Resolution | 0.1 HR |
| Max. Workpiece Height | 230 mm |
| Max. Testing Width | 170 mm |
| Power Supply | 100 - 240V, 50/60Hz |
| Dimension | 475 x 200 x 700 mm |
