Insize 20 mm Shank Dia. Electronic Edge Finders, 6566-3
Roll over the image to zoom in
Key Features
- Product Type: Edge Finders
- Shank (A): 20 mm Dia
- Contact Point (B): 10 mm Dia
- Accuracy: 5μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,423 (Incl. of all taxes)
₹6,291 + ₹1,132 GST (18%)
MRP was MRP ₹9,117
Save 31%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- The shank is electrically conducted to the metal workpiece through the chuck and table. The LED lights up and the beeper sounds (only for 6566-3), when the ball touches the workpiece
- Not suitable for rotary use
- Hardened shank and contact ball
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

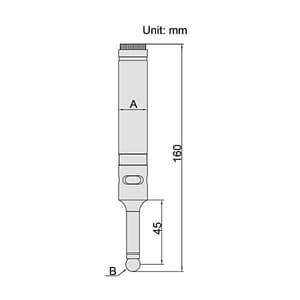

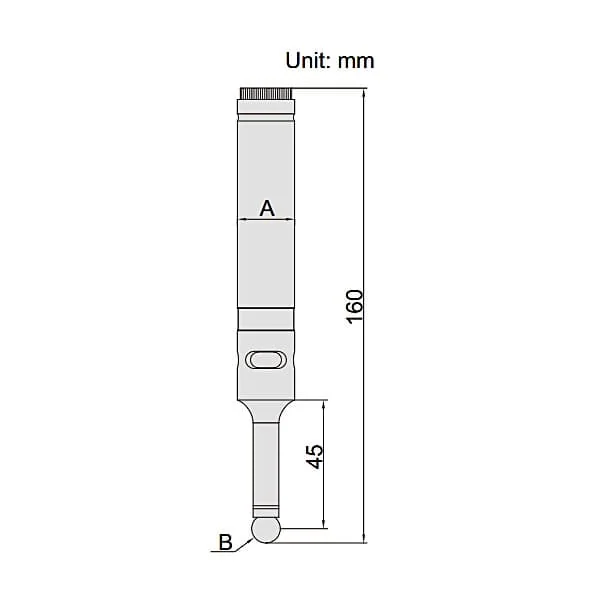

Specifications
| Shank (A) | 20 mm Dia |
|---|---|
| Contact Point (B) | 10 mm Dia |
| Accuracy | 5μm |
| Beeper | Yes |
| Battery | 23A, 12V x 1 pc |
