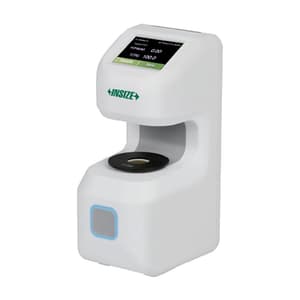

Insize 21 mm Measure Aperture Portable Haze Meter, HTM-P01
Roll over image to zoom zoom_in
- Weight: 1.13 Kg
- Product Type: Haze Meter
- Measure Aperture: 21 mm
- Resolution: 0.1%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹58902.06 (Incl. of all taxes)
₹49917+ ₹8985.06 GST (18%)
MRP ₹73407
SAVE 32%
7 Business Days
1 Pcs
90278990
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- According to ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, JIS K7105, JIS K7361, JIS K7136
- 2.8-inch touch screen for operation, and the screen direction can be manually set for vertical or horizontal measurement
- Small size, hand-held measurement is more convenient for measureing haze and transmittance
- Computer QC software is included, can export data graphic reports
- Self-contained calibration and standardization functions
- Support multi measuring apertures, magnetic replacement
Package Content:
- 1x Portable Haze Meter
- 1x Measure Aperture
- 1x Data Cable
- 1 Set x Software
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.NO.HA.00001 |
|---|---|
| Product Type | Haze Meter |
| Model No | HTM-P01 |
| Measure Aperture | 21 mm |
| Resolution | 0.1% |
| Repeatability | 0.1 |
| Parameter | ASTM-haze/transmittance |
| Light Source | CIE-A, CIE-C, CIE-D65 |
| Spectral response | CIE the spectrum functionY/V (X) |
| Optical Geometry | 0/d |
| Range | 0 - 100% |
| Sample Size | Thickness <40mm |
| Data Port | USB-type C |
| Working Temperature | 5 - 40°C, <80%RH, no condensation |
| Storage Temperature | -20 ~ 45°C, <80%RH, no condensation |
| Power Supply | DC 5V/2A |
| Dimensions (L x W x H) | 133 x 99 x 224 mm |
