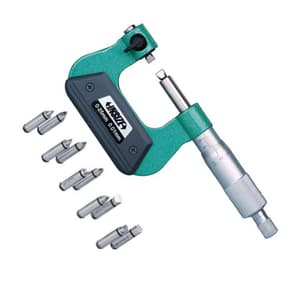

Insize 25 - 50 mm Screw Thread Micrometer, 3281-S50
Roll over the image to zoom in
Key Features
- Product Type: Screw Thread Micrometer
- Range (mm): 25 - 50 mm
- Graduation: 0.01 mm
- Length (mm): 67 mm
- Breadth (mm): 38 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,733 (Incl. of all taxes)
₹15,028 + ₹2,705 GST (18%)
MRP was MRP ₹21,779
Save 31%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Measure the pitch diameter of screw threads
- Non-rotating spindle
- Ratchet stop

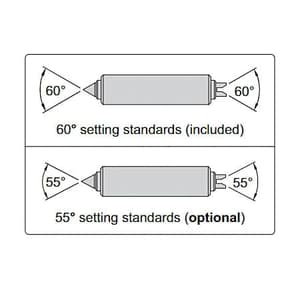

- Supplied with 60° setting standards (except 0-25mm)
- 6 pairs of measuring tips (included): metric and unified thread (60° thread angle)
- 0.4-0.5mm/64-48TPI,
- 0.6-0.9mm/44-28TPI,
- 1-1.75mm/24-14TPI,
- 2-3mm/13-9TPI,
- 3.5-5mm/8-5TPI,
- 5.5-7mm/4.5-3.5TPI
- Optional accessory: 55° setting standards.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Graduation | 0.01 mm |
| Measuring Tips (Included) | 6 Pair Measuring Tips |
| Length (mm) | 67 mm |
| Breadth (mm) | 38 mm |
