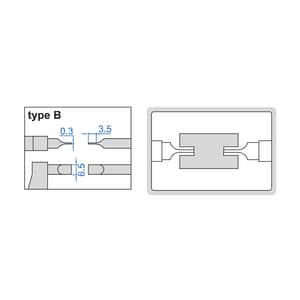

Insize 25 - 50 mm Wireless Digital Blade Micrometer / Snap Gauge (Type B), 3352-502WL
Roll over image to zoom zoom_in
- Product Type: Blade Micrometers
- Range (mm): 25 - 50 mm
- Range (Inches): 1 - 2 inch
- Type: A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹45280.14 (Incl. of all taxes)
₹38373+ ₹6907.14 GST (18%)
MRP ₹54046
SAVE 29%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Data Output & IP65 Waterproof
- Non-rotating Spindle
- Measure the groove diameter of shafts and keyways
- Absolute encoder, the original data remains after power off
- One turn of sleeve makes 10mm spindle feed
- Measurement accuracy is not affected by the use of sleeve
- Press the fork, the spindle retracts 3mm
- Carbide measuring faces
- Measuring force 5-10N Customizable measuring force range 3-1 IN (Attention: small measuring force will reduce the dustproof and waterproof level)
- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TlR, power off time, on/off, zero, mm/inch
- Supplied with gauge blocks for zero setting
- Power: rechargeable battery, for 24 hours continuous working
- Supplied with manufacturer inspection certificate
- Built-in wireless (receiver code 7315-2/3/6171819 is needed)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.BL.00071 |
|---|---|
| Product Type | Blade Micrometers |
| Model No | 3352-502WL |
| Range (mm) | 25 - 50 mm |
| Range (Inches) | 1 - 2 inch |
| Resolution | 0.001 mm / 0.00005 inch |
| Measuring Force | 5 - 10N |
| Accuracy | 2µm |
| Repeatability | 1µm |
| Type | A |
| Sizes (mm) | 89 mm (A), 46 mm (B) |
