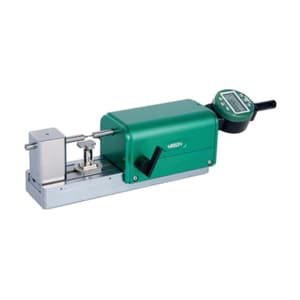

Insize 2N Horizontal Measuring Bench, 6849-60
Roll over the image to zoom in
Key Features
- Product Type: Measuring Bench
- Weight: 6.4 kg
- Adjustable Measuring Force: 2N
- Movable Probe Travel: 20 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,92,215 (Incl. of all taxes)
₹1,62,894 + ₹29,321 GST (18%)
MRP was MRP ₹2,32,705
Save 30%
7 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights

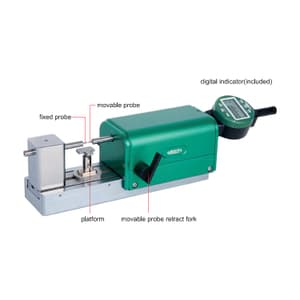

- Quickly measure outside diameters
- The platform can move horizontally and the height is adjustable
- For left and right hand operation
- Carbide probes
- Digital indicator uses linear ball bearings and can be used ten million times
- Digital indicator uses absolute encoder, the original data remains after power off
- Digital indicator reading in digital and analog
- Data output
- Digital indicator button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TlR, power off time, on/off, mm/inch, resolution adjustment
- Digital indicator uses rechargeable battery, for 24 hours continuous working
- Optional accessory: wireless transmitter(code 7315-60, receiver is needed code 7315-21316171819), Data output cable (code 7302-60, keyboard format)
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Adjustable Measuring Force | 2N |
|---|---|
| Movable Probe Travel | 20 mm |
| Range | 0 - 50 mm |
| Resolution | 0.0002 mm / 0.00001 inch |
| Accuracy | 5μm |
| Any ±1 mm Accuracy | 1μm |
| Repeatability | 0.4μm |
