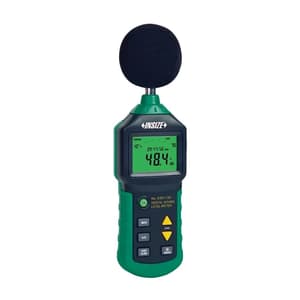

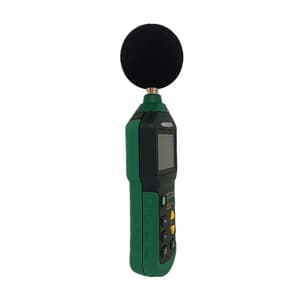

Insize 30 - 130dB Measuring Range Digital Sound Level Meter, 9351-130
Roll over the image to zoom in
Key Features
- Product Type: Sound Meter
- Weight: 317 g
- Measuring range: 30 - 130dB
- Accuracy: ±2dB
- Resolution: 0.1dB
- Frequency: 30Hz-8KHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,553 (Incl. of all taxes)
₹18,265 + ₹3,288 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Automatically select best range: 30~80dB, 40-90dB, 50~100dB, 60~110dB, 70~120dB, 80~130dB
- Over range indicator
- Real time, average, maximum modes
- Memory 16000 measurement values
- AC signal output: 0.707 Vrms at FS, impedance approx. 6002
- DC signal output: 10mV/dB, impedance approx.1002
- Automatic power off
What's Included In This Package:
| Main unit | 1 Pcs |

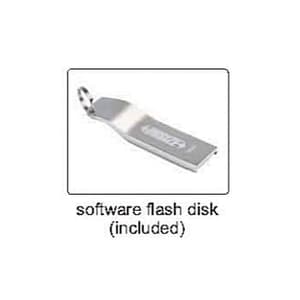

| Software and RS232 cable | 1 Pcs |
| Output connector | 1 Pcs |

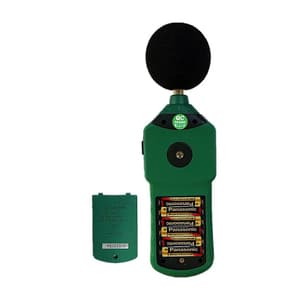

| Battery (AAA) | 6 Pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring range | 30 - 130dB |
|---|---|
| Accuracy | ±2dB |
| Resolution | 0.1dB |
| Sampling time | 0.5s for digital, 0.05s for analogue |
| Response time | Fast: 125ms / Slow: 1s |
| Frequency | 30Hz-8KHz |
| Frequency weighting | A/C |
| Microphone | electret condenser type |

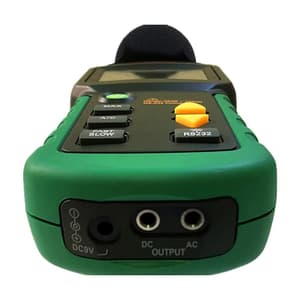

| Output | RS232, AC/DC |
| Dimensions | 265 mm x 80 mm x 69mm |
