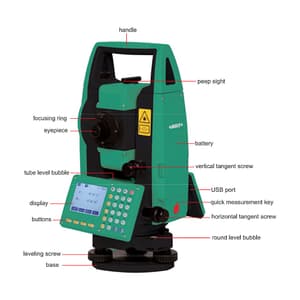

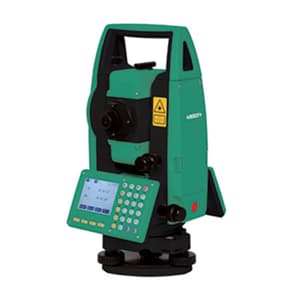

Insize 30X Basic Type Total Station, TSA-B33
Roll over the image to zoom in
Key Features
- Product Type: Total Station
- Weight: 5.4 kg
- Telescope Magnification: 30X
- Telescope Barrel Length: 152 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,04,505 (Incl. of all taxes)
₹1,73,309 + ₹31,196 GST (18%)
MRP was MRP ₹2,40,707
Save 28%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data Output & IP55 Waterproof
- With rear intersection, setting out, overhang measurement, eccentricity measurement and other functions
- Widely used in surveying and mapping engineering, construction engineering and many other precise measurement fields
- Safe Class 3R laser rangefinder with prism-free range up to 1500m
- Absolute coded goniometric technology, horizontal and vertical discs are easy to measure with a counterpoise probe
- The biaxial liquid photoelectric electronic compensator automatically corrects instrument leveling errors
- Built-in temperature and air pressure sensor automatically corrects distance measurement errors
- Can revise the prism constant
- Good weather: overcast sky, light wind, no fog, visibility about 40km
Technical Data:
| Distance Measurement with Cooperation Target | Measuring Range |
|
| Accuracy | ±(2+D/500)mm, D: Measured Distance, Unit: m | |
| Measuring Time |
|
|
| Prism-free distance measurement without a Cooperation Target | Measuring Range | 1500m (Kodak Grey, 90% reflectivity) |
| Accuracy |
|
|
| Measuring Time |
|
|
| Display | Screen Type | 240 x 160 dot matrix high definition high brightness display |
| Screen Size | 3.1 inch | |
| Digital Display | 99999999.9999 Mtr (max.) / 0.1 mm (min) |

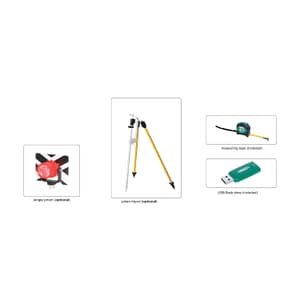

Standard Delivery:
| Main unit | 1 pc |

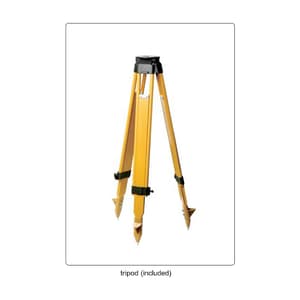

| Tripod | 1 pc |
| Power Adapter & Charging Cable | 1 pc |
| Li-ion Battery | 2 pcs |
| USB Flash Drive | 1 pc |
| Measuring Tape | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Telescope Magnification | 30X |
|---|---|
| Telescope Barrel Length | 152 mm |
| Angle Accuracy | ±2 inch |
| Min. Angular Reading | 0.1 inch / 1 inch (Selectable) |
| Field of View | 1° 30 inch |
| Frame Rate | 3 inch |
| Min. Focus Distance | 1.5 Mtr |
| Compensator | ±6 inch (Range) / ±1 inch (Accuracy) |
| Tube Level Bubble | 30 inch / 2 mm |
| Round Level Bubble | 8 inch / 2 mm |
| Data Transmission | USB Flash Drive, Bluetooth |
| Power Supply | 7.4V replaceable battery for 8 hours of continuous operation |
| Dimensions (L x W x H) | 206 x 180 x 353 mm |
