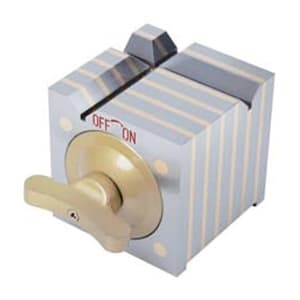

Insize 4 inch / 100 x 100 x 100 mm Magnetic Square Block With V Groove, 6539-100
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Square Block
- Length (mm): 100 mm
- Width (mm): 100 mm
- Height (mm): 100 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹64,238 (Incl. of all taxes)
₹54,439 + ₹9,799 GST (18%)
MRP was MRP ₹83,752
Save 35%
2 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Hold flat and cylindrical workpieces for inspection and machining
- Magnetic force on top, left, right and V grooves
- Parallelism and squareness of top, bottom, left, right and back: 20μm
- Parallelism and squareness of grooves to top, bottom, left, right and back: 20μm
Technical Data:
| Magnetic force of V grooves | Magnetic force of Top, Left & Right Sides | ||
| On granite surface plate | On cast iron plate | On granite surface plate | On cast iron plate |
| 30 kgf | 25 kgf | 50 kgf | 30 kgf |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

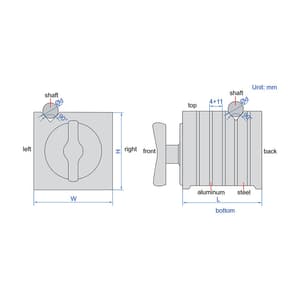

Specifications
| Length (mm) | 100 mm |
|---|---|
| Width (mm) | 100 mm |
| Height (mm) | 100 mm |
| Range of Shafts (Ød) | 5 - 30 mm |
