• Carbon fiber extension rods, light weight, not easy to deform, low thermal expansion
• Carbide measuring faces
• Data output
• Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./ TIR measurement, inch/metric conversion, absolute/incremental measurement
• Supplied with 400mm setting standard
• Optional accessory: data output cable (code 7302-40M), wireless data transmission (transmitter code 7315-51, need receiver)

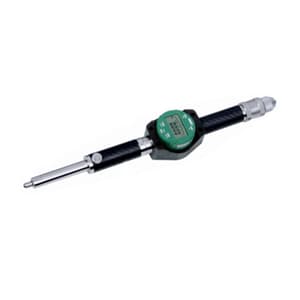

Micrometer Head:

• Range: 400 - 450 mm
• Resolution: 0.001 mm / 0.00005 inch
• Accuracy: ±6µm
• Repeatability: ±3µm
• Weight: 1 Kg

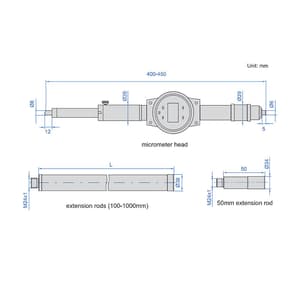

Specification of Extension Rods:

Length	Accuracy	Weight	Material
50 mm	±2µm	230g	Steel
100 mm	±3µm	300g	Carbon Fiber
200 mm	±4.5µm	390g	Carbon Fiber
300 mm	±6µm	470g	Carbon Fiber
600 mm	±9µm	730g	Carbon Fiber

Package Content:

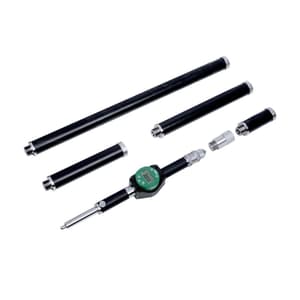

• 1x Carbon Fiber Bore Gauge
• 6x Extension Rods (1 Pc x 50 mm, 1 Pc x 100 mm, 1 Pc x 200 mm, 1 Pc x 300 mm, 2 Pc x 600 mm)
