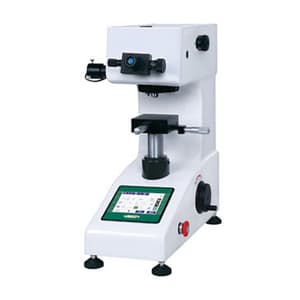

Insize 5 - 3000 HV Digital Micro-vickers Hardness Tester (Basic Type), HDT-MVE1300
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 40 kg
- Range: 5 - 3000 HV
- Load Dwell Time: 1 - 60 Second
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,21,545 (Incl. of all taxes)
₹2,72,496 + ₹49,049 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

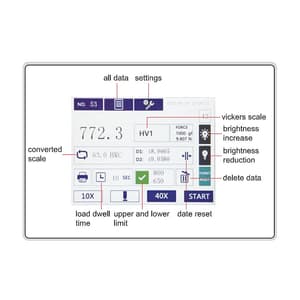

- Touch screen color LCD display
- Motor-Driven Turret
- Data storage and average value calculation
- Automatical switch between the indender and objective lens
- According to ISO 6507
- Test Force: 0.098N (10gf), 0.245N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.9N (500gf), 9.8N (1 kgf)
- Vickers Scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
- Converted Scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR3ON, HR45N, HR15T, HR30T, HR45T
What's Included in this Package:
| Main unit | 1 pc |
| 10X, 40X Objective | 1 pc for each |
| Micro Vickers Indenter | 1 pc |
| Hardness test block 400~500HV 0.2 | 1 pc |
| Hardness test block 400~500HV 1 | 1 pc |

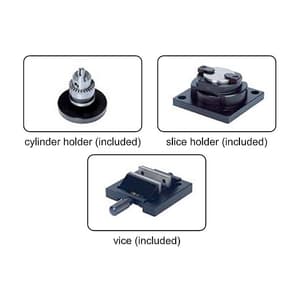

| Vice | 1 pc |
| Slice Holder | 1 pc |
| Cylinder Holder | 1 pc |
| Anti-dust Cover | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range | 5 - 3000 HV |
|---|---|
| Length Measurement Resolution | 0.5μm |

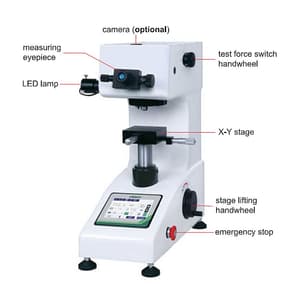

| Objective/Indenter Switch | Motor Driven Turret |
| Stage Lifting | Manual |
| Load Control | Automatic (load / dwell / unload) |
| Load Dwell Time | 1 - 60 Second |
| Objective | 10X, 40X |
| Eyepiece | 10X |
| Total Magnification | 100X (For Measurement or Observation), 400X (For Measurement) |
| Max. Workpiece Height | 90 mm |
| Max. Testing Width | 95 mm (From the center of indenter to the wall of main body) |
| X-Y Stage | 100 x 100 mm (Dimensions) / 25 x 25 mm (Travel Range) |
| Power Supply | 220V, 50/60Hz |
| Dimension | 510 x 290 x 570 mm |
