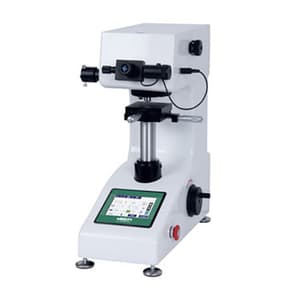

Insize 5 - 3000 HV Digital Micro-vickers Hardness Tester (Standard Type), HDT-MVH1100
Roll over image to zoom zoom_in
- Weight: 40 Kg
- Product Type: Hardness Tester
- Range: 5 - 3000 HV
- Load Dwell Time: 1 - 60 Second
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹262146.44 (Incl. of all taxes)
₹222158+ ₹39988.44 GST (18%)
MRP ₹352632
SAVE 37%
3 Business Days
1 Set
90248091
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

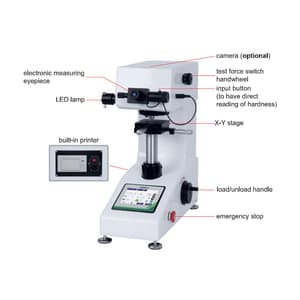

Highlights

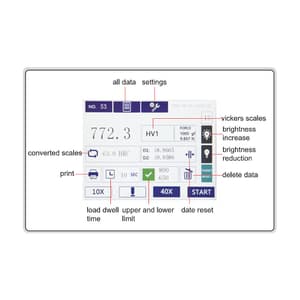

- Touch screen color LCD display
- Motor-Driven Turret
- Press Input Button To Have Direct Reading Of Hardness
- Data storage and average value calculation
- Automatical switch between the indender and objective lens
- According to ISO 6507
- Test Force: 0.098N (10gf), 0.245N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.9N (500gf), 9.8N (1 kgf)
- Vickers Scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
- Converted Scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR3ON, HR45N, HR15T, HR30T, HR45T
What's Included in this Package:
| Main unit | 1 pc |
| 10X, 40X Objective | 1 pc for each |
| Micro Vickers Indenter | 1 pc |
| Hardness test block 400~500HV 0.2 | 1 pc |
| Hardness test block 700~750HV 1 | 1 pc |

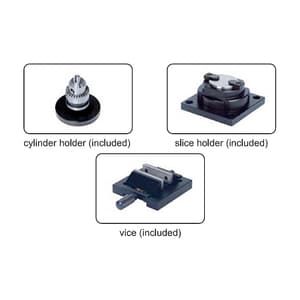

| Vice | 1 pc |
| Slice Holder | 1 pc |
| Cylinder Holder | 1 pc |
| Anti-dust Cover | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.HA.00012 |
|---|---|
| Product Type | Hardness Tester |
| Model No | HDT-MVH1100 |
| Range | 5 - 3000 HV |
| Length Measurement Resolution | 0.025µm |
| Objective/Indenter Switch | Motor Driven Turret |
| Stage Lifting | Manual |
| Load Control | Automatic (load / dwell / unload) |
| Load Dwell Time | 1 - 60 Second |
| Objective | 10X, 40X |
| Eyepiece | 10X |
| Total Magnification | 100X (For Measurement or Observation), 400X (For Measurement) |
| Max. Workpiece Height | 90 mm |
| Max. Testing Width | 95 mm (From the center of indenter to the wall of main body) |
| X-Y Stage | 100 x 100 mm (Dimensions) / 25 x 25 mm (Travel Range) |
| Data Output | Built-in Printer |
| Power Supply | 220V, 50/60Hz |
| Dimension | 510 x 290 x 570 mm |
