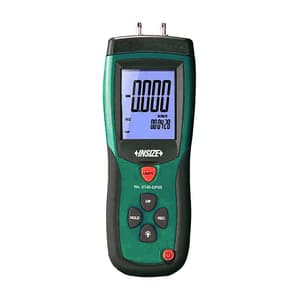

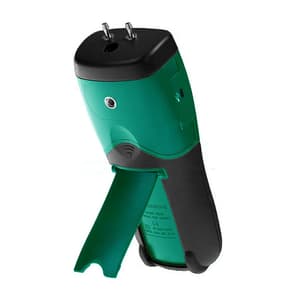

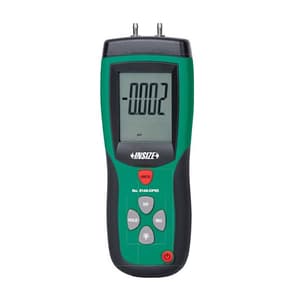

Insize 5 PSI Differential Pressure Manometer, 0140-DP05
Roll over the image to zoom in
Key Features
- Product Type: Manometer
- Weight: 350 g
- Operation Temperature: 0°C - 50°C
- Power Supply: 9V 6F22 Battery or AC/DC Adapter
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,087 (Incl. of all taxes)
₹13,633 + ₹2,454 GST (18%)
MRP was MRP ₹19,475
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Offset and differential measurement
- Record maximum/minimum/average value with relative timestamp

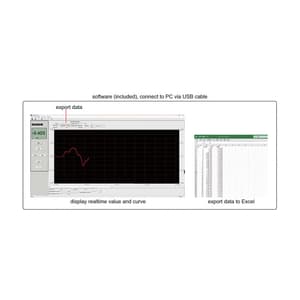

- Built-in USB interface for data transmission
- Unit: psi, inH2O, bar, mbar, kPa, inHg, mmHg, oz/in², ftH2O, cmH2O, kg/cm²
- Zero adjust
- Data hold
- Display with backlight
- Low battery indication
- Automatic power off
- Safety rating: CAT III 600V

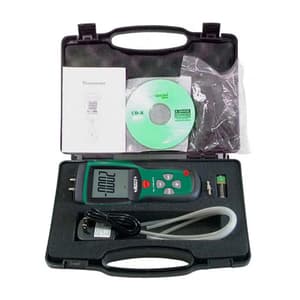

What's Included In This Package:
- 1x Main unit
- 1x AC/DC adapter
- 1x 9V battery
- 1x Software and USB flash disk
- 1x USB cable
- 4x Soft tubes
Functions:
| Pressure range | -5psi - 5psi | ||||||||||
| Maximum pressure | 20psi | ||||||||||
| Unit | psi | inH2O | bar | mbar | kPa | inHg | mmHg | oz/in² | ftH2O | cmH2O | kg/cm² |
| Range | 5 | 138.3 | 0.344 | 344.7 | 34.47 | 10.18 | 258.5 | 80 | ±11.53 | 351.5 | 0.351 |
| Resolution | 0.001 | 0.1 | 0.001 | 0.1 | 0.01 | 0.01 | 0.1 | 0.01 | 0.01 | 0.1 | 0.001 |
| Accuracy | ±0.3%FSO (25°C) | ||||||||||
| Repeatability | ±0.2% (Max. ±0.5%FSO) | ||||||||||
| Linearity/hysteresis | +0.29%FSO | ||||||||||
| Response time | 0.5s typical |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operation Temperature | 0°C - 50°C |
|---|---|
| Power Supply | 9V 6F22 Battery or AC/DC Adapter |
| Dimensions (LxWxH) | 165 mm x 90 mm x 40 mm |
