Insize 50 - 160 mm Bore Gauge With Dial Indicator, 2827-160A
Roll over the image to zoom in
Key Features
- Product Type: Bore Gauge
- Range (mm): 50 - 160 mm
- Dial Reading: 10 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,404 (Incl. of all taxes)
₹12,207 + ₹2,197 GST (18%)
MRP was MRP ₹17,439
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Optional accessory: Setting Ring (code 6312), long Handle (code 7351), bore gauge setter
- Not Suitable For 0.001 mm Dial Indicators.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications

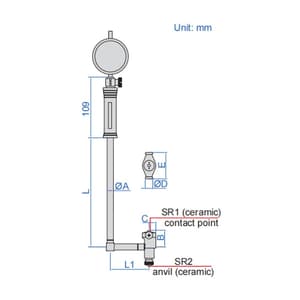

| Range (mm) | 50 - 160 mm |
|---|---|
| Type of Product | With Dial Indicator |
| A (mm) | Ø12.8 mm |
| B (mm) | 28.5 mm |
| C (mm) | 9.2 mm |
| D (mm) | Ø13 mm |
| E (mm) | 35 mm |
| L1 (mm) | 76.2 mm |
| Dial Reading | 10 mm |
| Graduation | 0.01 mm |
| Accuracy | ±0.018 mm |
| Repeatability | 0.003 mm |
| Bore Depth in mm | 141 mm |
