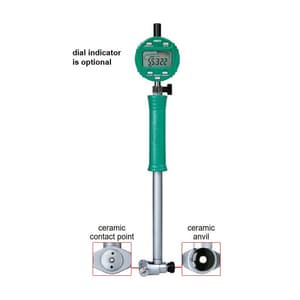

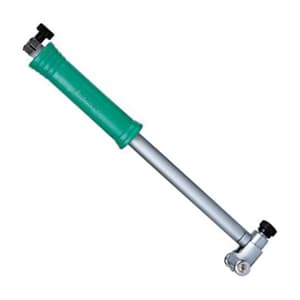

Insize 50 - 160 mm Precision Bore Gauge without Dial Indicator, 2283-160
Roll over the image to zoom in
Key Features
- Product Type: Bore Gauge
- Type of Product: Without Dial Indicator
- Range (mm): 50 - 160 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,242 (Incl. of all taxes)
₹9,527 + ₹1,715 GST (18%)
MRP was MRP ₹13,610
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Optional accessory: dial indicator, setting ring (code 6312), bore gauge setter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

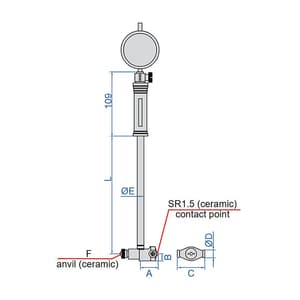

Specifications
| Type of Product | Without Dial Indicator |
|---|---|
| Range (mm) | 50 - 160 mm |
| A (mm) | 26 mm |
| B (mm) | 9 mm |
| C (mm) | 35 mm |
| ØD (mm) | Ø13 mm |
| ØE (mm) | Ø12.8 mm |
| F | SR2 |
| Length (mm) | 141 mm |
| Accuracy (without Dial Indicator) | ±0.004 mm |
| Repeatability (without Dial Indicator) | 0.0015 mm |
