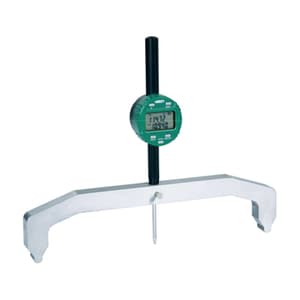

Insize 500 - 11250 mm Large Range Digital Radius Gauge, 2512-300
Roll over image to zoom zoom_in
- Product Type: Radius Gauges
- Range (mm): 500 - 11250 mm
- Range of External & Internal Radius (R1 & R2): 19.685 - 442.913 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹61024.88 (Incl. of all taxes)
₹51716+ ₹9308.88 GST (18%)
MRP ₹74950
SAVE 31%
3 Business Days
1 Pcs
90173029
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

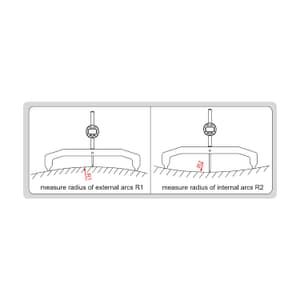

- Measure the radius of internal or external arcs
- Buttons: on/off, hold, mm/inch, s (select jaws), zero
- Display can be rotated by 320°
- Battery CR2032, automatic power off (time is adjustable)
- Data output
- Optional accessory: wireless transmitter (code 7315-50M, receiver is required), data output cable (code 7302-40M)
Specification for Digital Indicator:
- Part No.: 2512-50F
- Range: 0 - 2 inch / 0.50.8 mm
- Resolution: 0.001 inch / 0.01 mm
- Accuracy: 0.0002 inch
- Repeatability: 0.0002 inch
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.RA.00010 |
|---|---|
| Product Type | Radius Gauges |
| Model No | 2512-300 |
| Range (mm) | 500 - 11250 mm |
| Range of External & Internal Radius (R1 & R2) | 19.685 - 442.913 inch |
| Resolution | 0.01 mm / 0.001 inch |
| Accuracy (mm) | ±0.005R |
| Length | 300 mm / 11.811 inch |
