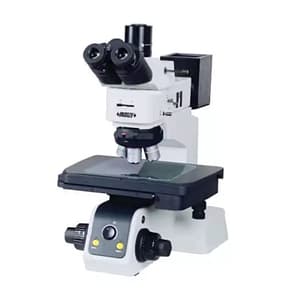

Insize 50X - 500X Metallurgical Microscope, 5108-M3000
Roll over image to zoom zoom_in
- Weight: 27 Kg
- Product Type: Zoom Stereo Microscope
- Optical Magnification: 50X - 500X (up to 1000X with optional 100X Objective)
- Digital Magnification: 170X - 1700X (on 21.5" Monitor), up to 3400X with Optional 100X Objective
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹455307.72 (Incl. of all taxes)
₹385854+ ₹69453.72 GST (18%)
MRP ₹575901
SAVE 33%
3 Business Days
1 Set
90112000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

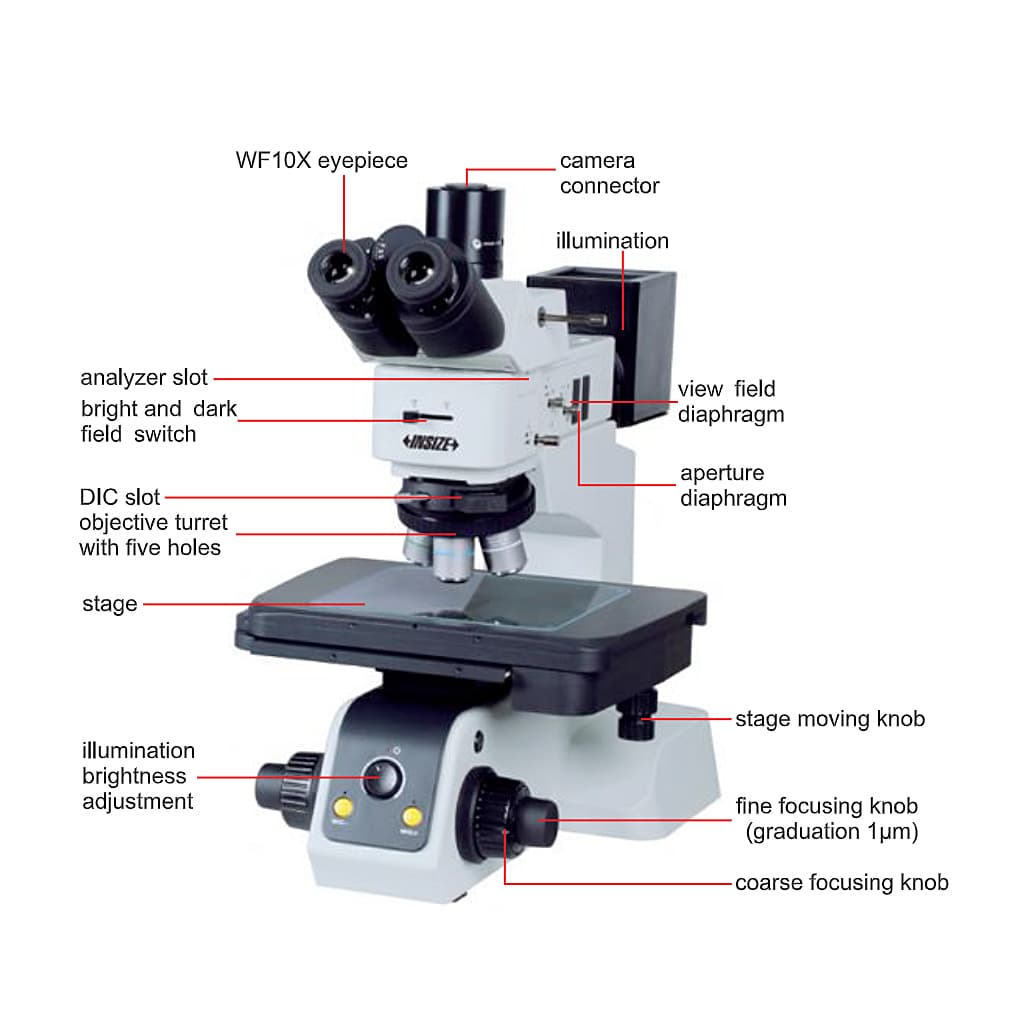

Highlights
- Infinite chromatic aberration correction optical system
- Three way observation tube with infinite hinge
- Translucent and reflective frame, front low-hand position coarse and fine coaxial focus adjustment mechanism, with adjustment elastic device to prevent sliding and random upper limit device
- Bright and dark field five-hole converter with DIC slot
- Adopt digital dimming, with light intensity reset and setting function
- With polarizer insert plate and 360° rotating analyzer insert slot
| Objective (Infinite long working distance bright and dark field semi-achromatic) | Working Distance | Numerical Aperture |
| 5X | 15 mm | 0.15 |
| 10X | 8.4 mm | 0.30 |
| 20X | 10.3 mm | 0.40 |
| 50X | 3.0 mm | 0.75 |
Package Content:
- 1x Metallurgical Microscope
- 1x Polarizer & analyzer
- 1x Anti-dust Cover
- 1x 0.65X Camera Adapter (Adjustable Focus)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.ZO.00005 |
|---|---|
| Product Type | Zoom Stereo Microscope |
| Model No | 5108-M3000 |
| Optical Magnification | 50X - 500X (up to 1000X with optional 100X Objective) |
| Digital Magnification | 170X - 1700X (on 21.5" Monitor), up to 3400X with Optional 100X Objective |
| Stage | Double Layer (Size: 310 x 240 mm, Travel: 150 x 100 mm) |
| Condenser | Roll-out achromatic condenser (Numerical aperture 0.9) |
| Illumination | 5W LED, Transmitted & Reflected |
| Observation Tube | Inverse Image, 50 - 76 mm (Distance Adjustment), Trinocular=100:0 (Two Grade Spectral Ratio Binocular) |
| Diopter Adjusment | ±5 Diopter (Two Eyepieces) |
| Power Supply | AC 100-240V |
| Dimension (L X W X H) | 310x600x500 mm |
