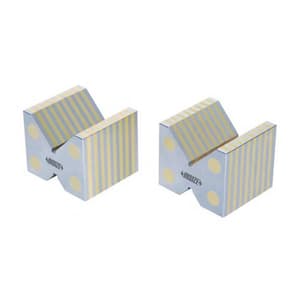

Insize 52 x 58 x 46 mm Magnetic Induction V - Block Set (Pack of 2 Pcs), 6878-1
Roll over the image to zoom in
Key Features
- Product Type: Blocks Set
- Size (LxHxW): 52 x 58 x 46 mm
- Range of Shafts (Ød): 6 - 56 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,345 (Incl. of all taxes)
₹12,157 + ₹2,188 GST (18%)
MRP was MRP ₹28,273
Save 57%
3 Business Days
1
85051900
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights

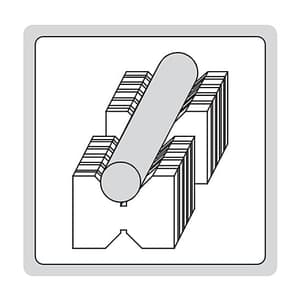

- Hold cylindrical workpieces for inspection and machining
- To be used on magnetic chucks
- Two V-blocks per set

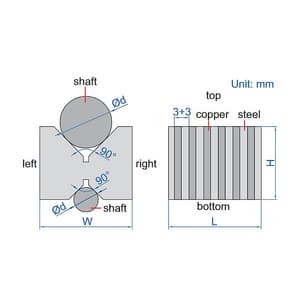

- V groove on the top for large shafts
- V groove on the bottom for small shafts
- Hardness HRB70
- Copper magnetic strips
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Size (LxHxW) | 52 x 58 x 46 mm |
|---|---|
| Range of Shafts (Ød) | 6 - 56 mm |
| Pole Pitch | 3 + 3 mm |
| Parallelism of both V grooves to top and bottom Sides | 10μm |
| Height Difference of a Matched Pair | 10μm |
