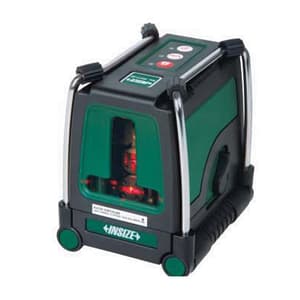

Insize 630-660 nm Cross-Line Laser Level, 4917-30

Shop all Insize

SKU: ME.NO.LI.00023

Model: 4917-30

Roll over image to zoom zoom_in
  1. Insize 630-660 nm Cross-Line Laser Level, 4917-30
  2. Insize 630-660 nm Cross-Line Laser Level, 4917-30
  3. Insize 630-660 nm Cross-Line Laser Level, 4917-30
  4. Insize 630-660 nm Cross-Line Laser Level, 4917-30
Visit Insize Store keyboard_double_arrow_right
  • Weight: 620 Grams
  • Product Type: Line Lasers
  • Laser line width: 2 ± 0.5mm (within 5m)
  • Laser Type : 630~660nm, class II, <1mW
  • Self-leveling range: ±3°
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹7095.34 (Incl. of all taxes)

₹6013+ ₹1082.34 GST (18%)

MRP ₹9395

SAVE 36%

3 Business Days

1 Pcs

90132000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Red horizontal and vertical cross laser lines
  • Self-leveling within ±3°, the self-leveling time within 4s, audible and visual warning when out of ±3°

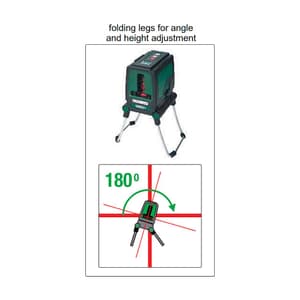

  • Folding legs for angle and height adjustment
  • Outdoor use can be combined with the detector (code: 4917-DETECTOR)
  • IP54 waterproof
    Audible And Visual Warning When out of ±3°
  • Use high accuracy detection mode within 15m,
  • Use low accuracy detection mode over 15m.


Standard Delivery:

Main unit1 pc
1/4" to 5/8" tripod adaptor1 c
Battery (AA)3 pcs



Optional Accessory:

Outdoor detector4917-DETECTOR

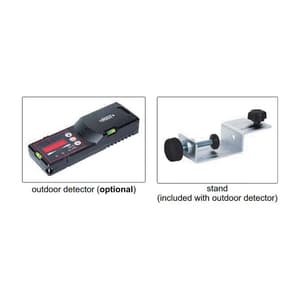

Outdoor Detector (Optional):

Detecting distanceHorizontal 1~50m, Vertaial 1~30m
Detecting accuracyHigh accuracy ±1.5mm, low accuracy ±2.5mm
Power Supply9V battery
Dimension 168x58x30 mm
Weight140g (battery included)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.LI.00023
Product TypeLine Lasers
Model No4917-30
Laser line width 2 ± 0.5mm (within 5m)
Laser Type 630~660nm, class II, <1mW
Beam angle 120+/- 0.5°
Self-leveling range ±3°
Working distance indoor:30m, outdoor:50m with detector (optional)
Accuracy 0.2mm/m
Operation Temperature -10~40°C
Power Supply 3 x AAA batteries for 3 hours working
Dimensions 100 x 82 x 104mm
