Insize 8 - 10 mm Pistol Grip Three Points Bore Gauge without Digital Indicator, 2124-10
Roll over the image to zoom in
Key Features
- Product Type: Bore Gauge
- Range (mm): 8.10 mm
- Type: A
- Accuracy: 4μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹23,324 (Incl. of all taxes)
₹19,766 + ₹3,558 GST (18%)
MRP was MRP ₹28,237
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

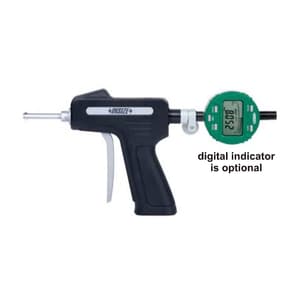

- Optional accessory: Digital indicators (code 2103-10F, resolution 0.001mm/0.00005"), setting rings (code 6312)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 8.10 mm |
|---|---|

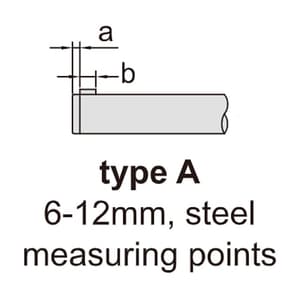

| a (mm) | 1.5 mm |
| b (mm) | 2.5 mm |

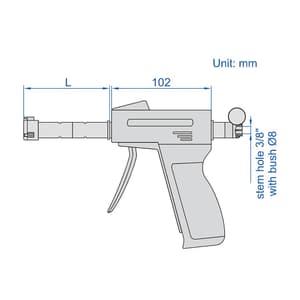

| Length (mm) | 50 mm |
| Setting Ring | Ø8 mm |
| Extension Rod | 100 mm |
| Type | A |
| Accuracy | 4μm |
| Resolution | 0.01 mm / 0.0005 inch |
